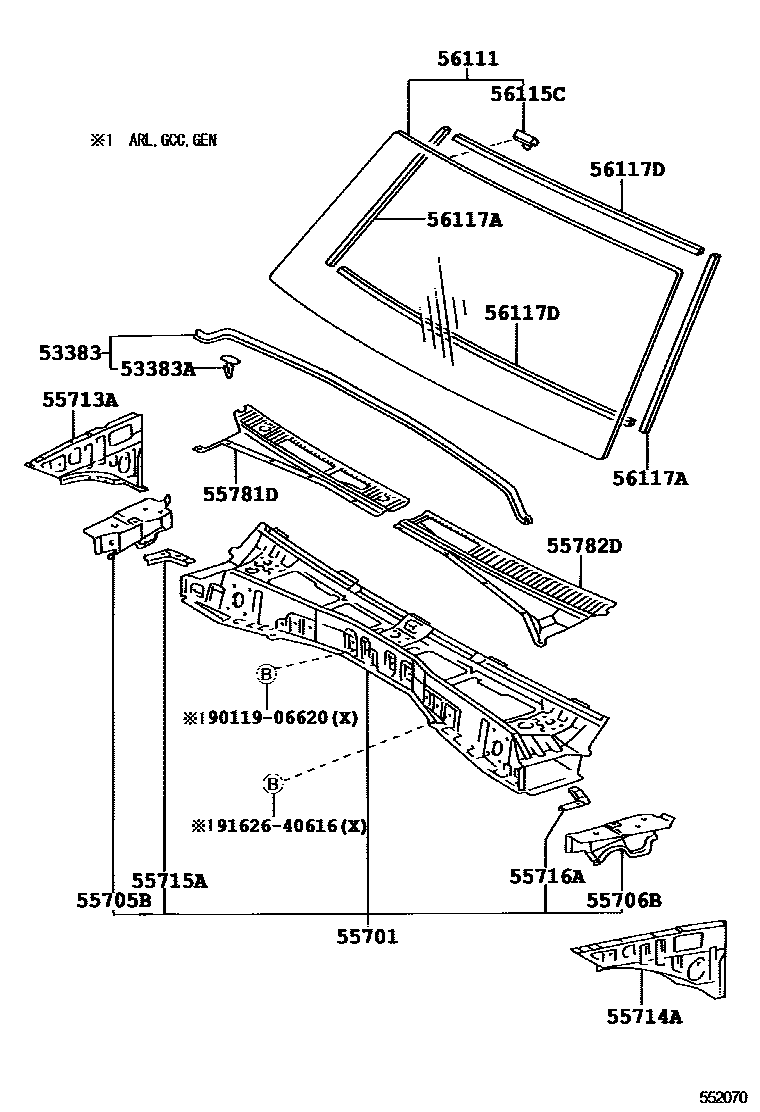

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
55701PANEL SUB-ASSY, COWL
W(ABS)
W(ABS)
CHINA SPEC OR CKD VIETNAM SPEC
W(ABS)
W(ABS)
W(ABS) & CHINA SPEC
main55700-6A730iFZJ100,HZJ105..LHD..STD; FZJ100..LUB..5F; FZJ105,HDJ100,HZJ105..LHD..5F..(GX,VX)..GEN; HZJ105..GCC199808-200108
CHINA SPEC OR RUSSIA SPEC OR CKD VIETNAM SPEC & W(ABS); W(ABS)
W(ABS)
RUSSIA SPEC & W(ABS); W(ABS)
W(ABS)
W(ABS)
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
COLD AREA SPEC
COLD AREA SPEC
55782DLOUVER, COWL TOP VENTILATOR, LH
COLD AREA SPEC
COLD AREA SPEC
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN,(L)
main56111-60250iFZJ100..LUB..4FC;FZJ105,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GEN); HZJ105..GCC;FZJ100..LUB..5F200208-200301
*LAM,T=4.7,GREEN; *LAM,T=4.7,GREEN,CHINA SPEC
*LAM,T=4.76,GREEN
*LAM,T=4.7,GREEN,CHINA SPEC & W(TOP SHADE); *LAM,T=4.7,GREEN,W(TOP SHADE)
*LAM,T=4.76,GREEN,W(TOP SHADE)
main56111-60270iFZJ100,UZJ100..LUB..ATM..GCC;FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GEN); HZJ105..GCC;FZJ100..LUB..5F200208-200301
*LAM,T=4.7,GREEN,CHINA SPEC & W(MIRROR BASE & TOP SHADE); *LAM,T=4.7,GREEN,W(MIRROR BASE & TOP SHADE)
*LAM,T=4.76,GREEN,W(MIRROR BASE & TOP SHADE)
*LAM,T=4.7,GREEN,W(MIRROR BASE & TOP SHADE & VIN PLATE)
*LAM,T=4.76,GREEN,(J)
*LAM,T=4.7,GREEN,W(VIN PLATE)
*LAM,T=4.76,GREEN,W(VIN PLATE)
*LAM,T=4.7,GREEN,W(TOP SHADE & VIN PLATE)
*LAM,T=4.76,GREEN,W(TOP SHADE & VIN PLATE)
56115CSTOPPER, WINDSHIELD GLASS
(L)
(J)
56117ADAM, WINDOW GLASS ADHESIVE
L=905
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=858,UPPER
L=1585,LOWER
9011906620
main90119-06620
9162640616
main91626-40616
17 parts on this diagram · 1 diagram in section
