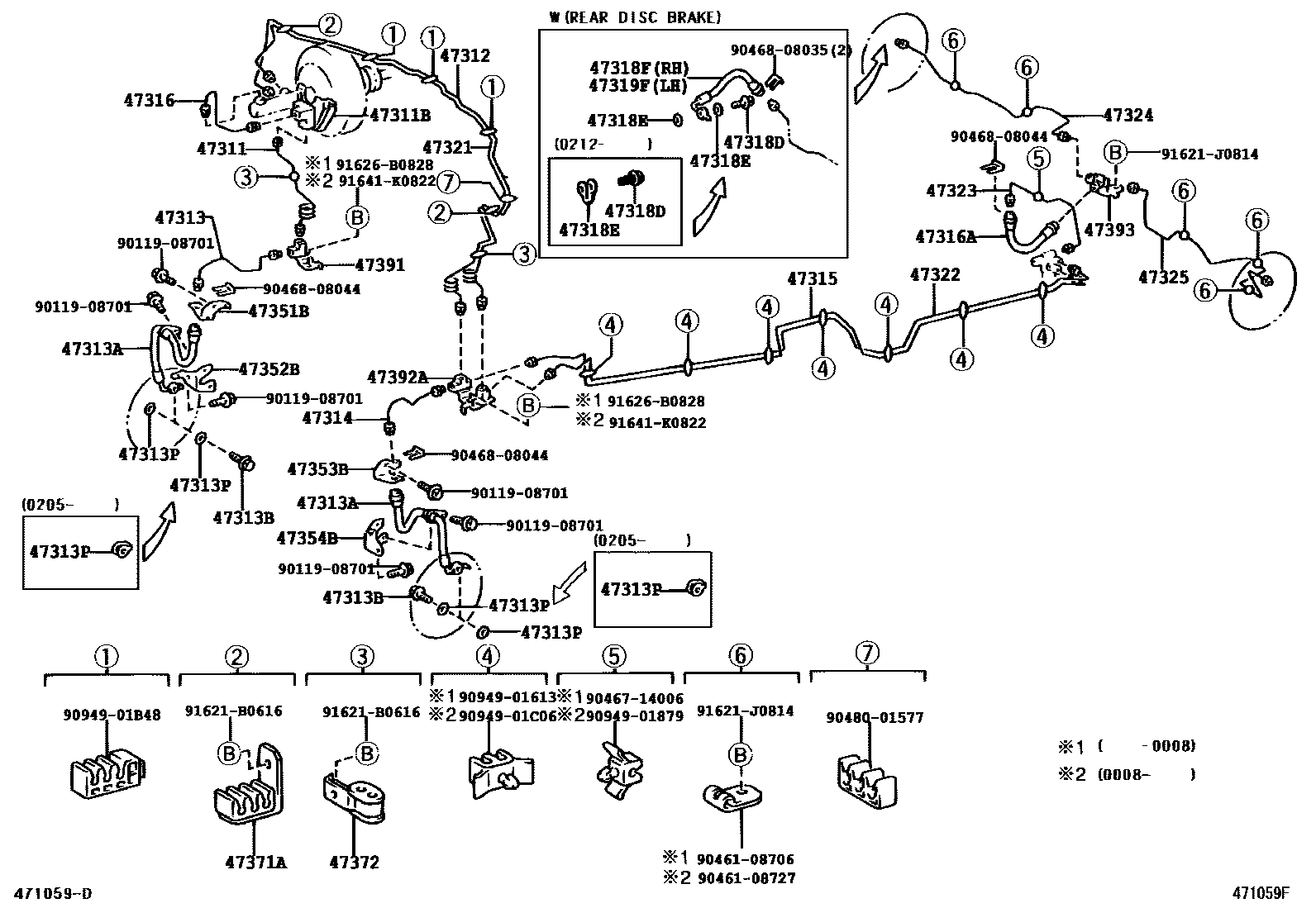

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1 0005 1 0006 1 0008 1W(ABS) 0009 1W(ABS) 0011 1W(ABS) 0012 1W(ABS) 0013 1W(ABS & VSC) 0015 1W(ABS & VSC)

47311TUBE, FRONT BRAKE, NO.1

main47311-0G010iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(L)

main47311-60530iHDJ100,UZJ100..RHD199801-199907

main47311-60540iFZJ100,HDJ100,UZJ100..LHD199801-199907

main47311-60542iFZJ100,HDJ100,UZJ100..LHD199907-200204

main47311-60550iHDJ100,UZJ100..RHD199801-199907

W(ABS)

main47311-60552iHDJ100..ARL200008-200204

W(ABS)

main47311-60560iFZJ100,HDJ100,UZJ100..LHD199801-199907

W(ABS)

main47311-60562iFZJ100,HDJ100,UZJ100..LHD199907-200204

W(ABS)

main47311-60650iHDJ100..RHD..GEN200505

main47311-60660iFZJ100,HDJ100,UZJ100..LHD..(GCC,GEN)200208-200505

main47311-60670iHDJ100,UZJ100..RHD200208-200505

W(ABS)

main47311-60681iFZJ100,HDJ100,UZJ100..LHD..(GCC,GEN)200505

W(ABS & VSC)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90904-13046iFZJ100,HDJ100,UZJ100199801-199907

47312TUBE, FRONT BRAKE, NO.2

main47312-0G010iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(L)

main47312-60840iHDJ100..RHD..GEN199907-200204

main47312-60850iFZJ100,HDJ100,UZJ100..LHD199801-200204

main47312-60860iHDJ100,UZJ100..RHD199801-199907

W(ABS)

main47312-60862iHDJ100..ARL200008-200204

W(ABS)

main47312-60890iFZJ100,HDJ100,UZJ100..LHD199801-200204

W(ABS)

main47312-6A011iFZJ105,HZJ105..RHD199801-200204

main47312-6A021iFZJ105,HZJ105..LHD199801-200204

main47312-6A030iFZJ105,HZJ105..RHD..GX199801-199909

W(ABS)

main47312-6A032iFZJ105,HZJ105..RHD..GX199909-200204

W(ABS)

main47312-6A040iHZJ105..LHD;FZJ105..LHD..GX199801-199907

W(ABS)

main47312-6A042iHZJ105..LHD;FZJ105..LHD..GX199907-199909

W(ABS)

main47312-6A043iHZJ105..LHD;FZJ105..LHD..GX199909-200204

W(ABS)

main47312-6A130iHDJ100..RHD..GEN200505

main47312-6A140iFZJ100,HDJ100,UZJ100..LHD..(GCC,GEN)200208-200505

main47312-6A150iHDJ100,UZJ100..RHD200208-200505

W(ABS)

main47312-6A160iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

(J)

main47312-6A170iFZJ105,HZJ105..RHD200208-200505

main47312-6A180iFZJ105,HZJ105..LHD200204-200208

main47312-6A190iFZJ105,HZJ105..RHD..GX200208-200505

W(ABS)

main47312-6A200iHZJ105..LHD;FZJ105..LHD..GX200208-200505

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-0G010iFZJ100,UZJ100..CHI200506

(L)

main47313-60240iFZJ100,HDJ100,UZJ100199801-200008

main47313-60242iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200505

main47313-60250iFZJ105,HZJ105..RHD..GX199801-199907

main47313-60252iFZJ105,HZJ105..RHD..GX199907-200204

main47313-60270iHZJ105..LHD;FZJ105..LHD..GX199801-200204

main47313-60390iFZJ105,HZJ105..RHD..GX200204-200208

main47313-60400iHZJ105..LHD;FZJ105..LHD..GX200505

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02967×2iFZJ105,HZJ105199801-200208

main90947-02A16×2iHZJ105..LHD..STD;FZJ105,HZJ105..GX200208-200505

W(ABS)

main90947-02A20iFZJ100,HDJ100,UZJ100..GCC,GEN200208-200312

RH

main90947-02A21iFZJ100,HDJ100,UZJ100..GCC,GEN; HDJ100,UZJ100..ARL200208-200505

RH; W(ABS),RH

main90947-02A26iFZJ100,HDJ100,UZJ100..GCC,GEN200208-200312

LH

main90947-02A27iFZJ100,HDJ100,UZJ100..GCC,GEN; HDJ100,UZJ100..ARL200208-200505

LH; W(ABS),LH

main90947-02F28iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN; UZJ100..CHI200702

RH

main90947-02F29iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN; UZJ100..CHI200702

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iFZJ10#,HDJ100,HZJ105,UZJ100199801-200205

main90401-10058×2iFZJ10#,HDJ100,HZJ105,UZJ100200205-200208

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

main90430-10074×4iFZJ10#,HDJ100,HZJ105,UZJ100199801-200205

47314TUBE, FRONT BRAKE, NO.4

main47314-0G010iFZJ100,UZJ100..CHI200506

(L)

main47314-60220iFZJ100,HDJ100,UZJ100..GCC,GEN200505

main47314-60230iFZJ100,HDJ100,UZJ100199801-200008

W(ABS)

main47314-60232iFZJ100,HDJ100,UZJ100..GCC,GEN; HDJ100..ARL200008-200208

W(ABS)

47315TUBE, FRONT BRAKE, NO.5

main47315-60380iFZJ100,HDJ100,UZJ100199801-199907

main47315-60382iFZJ100,HDJ100,UZJ100..GCC,GEN200008-200208

47316TUBE, FRONT BRAKE, NO.6

main47311-60520iFZJ100,HDJ100,UZJ100..GCC,GEN200505

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02968iFZJ105,HZJ105199801-200208

main90947-02A11iFZJ100,HDJ100,UZJ100..GCC,GEN199907-200208

main90947-02A13iFZJ100,HDJ100,UZJ100199801-200208

W(ABS)

main90947-02A17iHZJ105..LHD..STD;FZJ105,HZJ105..GX200208-200505

W(ABS)

main90947-02B59iUZJ100..VX..CHI200506-200701

main90947-02F27iUZJ100..GCC,GEN;HDJ100..5FC..GEN;FZJ100,HDJ100..4FC,5F;HDJ100,UZJ100..5FC..GX..ARL; UZJ100..GX..CHI200702

main90947-02F30iHDJ100..5FC..ARL;UZJ100..5FC..(ARL,GCC,GEN); UZJ100..VX..CHI200702

W(ABS & VSC)

47318TUBE, FRONT BRAKE, NO.8

main47318-60090iHZJ105..LHD..STD;FZJ105,HZJ105..GX199801-200208

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iFZJ10#,HDJ100,HZJ105,UZJ100200208-200212

main90401-10058×2iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200212-200505

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iFZJ100,UZJ100..CHI200506

main90430-10074×4iFZJ10#,HDJ100,HZJ105,UZJ100200208-200212

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02A07iFZJ10#,HDJ100,HZJ105,UZJ100199801-199907

main90947-02A09iHZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2199801-200208

W(ABS)

main90947-02F25iUZJ100..CHI200702

47319TUBE, FRONT BRAKE, NO.9

main47319-60090iFZJ105,HZJ105199801-200208

main47319-60101iHZJ105..LHD..STD;FZJ105,HZJ105..GX200505

W(ABS)

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02A08iHZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN200208-200505

main90947-02A10iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

main90947-02F26iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200611

47321TUBE, REAR BRAKE, NO.1

main47321-0G010iFZJ100,UZJ100..GX..CHI200506

(L)

main47321-0G020iUZJ100..VX..CHI200506

(L)

main47321-60150iHDJ100..RHD..GEN199907-200204

main47321-60160iFZJ100,HDJ100,UZJ100..LHD199801-200204

main47321-60170iHDJ100,UZJ100..RHD199801-199907

W(ABS)

main47321-60172iHDJ100,UZJ100..RHD199907-200204

W(ABS)

main47321-60180iFZJ100,HDJ100,UZJ100..LHD199801-200204

W(ABS)

main47321-60271iUZJ100..ARL199907-200008

W(ABS & VSC)

main47321-60281iUZJ100..LHD..4FC199907-200204

W(ABS & VSC)

main47321-60310iHDJ100..RHD..GEN200505

main47321-60320iFZJ100,HDJ100,UZJ100..LHD..(GCC,GEN)200208-200505

main47321-60330iHDJ100,UZJ100..RHD200208-200505

W(ABS)

main47321-60340iFZJ100,HDJ100,UZJ100..LHD200204-200208

W(ABS)

main47321-60350iHDJ100..5FC..ARL200308-200505

W(VSC)

main47321-60360iUZJ100..5FC..(GCC,GEN)200505

W(ABS & VSC)

47322TUBE, REAR BRAKE, NO.2

main47322-0G010iFZJ100..CHI200309-200506

W(ABS),(L)

main47322-0G020iUZJ100..VX..CHI200506

(L)

main47322-60720iFZJ100,HDJ100,UZJ100..GCC,GEN199907-200008

main47322-60722iFZJ100,HDJ100,UZJ100..GCC,GEN200208-200505

main47322-60730iFZJ100,HDJ100,UZJ100199801-199907

W(ABS)

main47322-60732iFZJ100,HDJ100,UZJ100199907-200008

W(ABS & VSC)

main47322-60733iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN); UZJ100..5FC..(GCC,GEN);HDJ100,UZJ100..5FC..GX..ARL200505

W(ABS & VSC); W(ABS)

main47322-60740iUZJ100;HDJ100..LUB199801-199907

W(ABS & ACTIVE HEIGHT CONTROL)

main47322-60742iUZJ100;HDJ100..LUB199907-200008

W(ABS & ACTIVE HEIGHT CONTROL)

main47322-60743iUZJ100..VX..CHI200309-200506

(J)

main47322-60750iFZJ105,HZJ105..RHD199801-200204

main47322-60760iFZJ105,HZJ105..LHD199801-200204

main47322-60770iFZJ105,HZJ105..RHD..GX199801-199907

W(ABS)

main47322-60772iFZJ105,HZJ105..RHD..GX199907-200204

W(ABS)

main47322-60780iHZJ105..LHD;FZJ105..LHD..GX199801-200204

W(ABS)

main47322-60890iFZJ105,HZJ105..RHD200204-200208

main47322-6A010iFZJ105,HZJ105..LHD200208-200505

main47322-6A020iFZJ105,HZJ105..RHD..GX200204-200208

W(ABS)

main47322-6A030iHZJ105..LHD;FZJ105..LHD..GX200505

W(ABS)

47323TUBE, REAR BRAKE, NO.3

main47323-60590iFZJ100,HDJ100,UZJ100..GCC,GEN199907-200008

main47323-60592iFZJ100,HDJ100,UZJ100..GCC,GEN200505

47324TUBE, REAR BRAKE, NO.4

main47324-0G010iFZJ100,UZJ100..GX..CHI200506

(L)

main47324-0G020iUZJ100..VX..CHI200506

(L)

main47324-60230iFZJ100,HDJ100,UZJ100..GCC,GEN199801-200008

main47324-60232iFZJ100,HDJ100,UZJ100..GCC,GEN200008-200208

main47324-60240iFZJ100,HDJ100,UZJ100199801-200008

W(REAR DISC BRAKE) & W/O(ABS & VSC)

main47324-60242iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN)200505

W(REAR DISC BRAKE)

main47324-60250iFZJ105,HZJ105200208-200505

main47324-60260iHZJ105..LHD..STD;FZJ105,HZJ105..GX199801-200208

W(ABS)

main47324-60321iUZJ100..4FC199907-200008

W(ABS & VSC)

main47324-60322iUZJ100..VX..CHI200506

(J)

47325TUBE, REAR BRAKE, NO.5

main47325-0G010iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

(L)

main47325-0G020iUZJ100..VX..CHI200309-200506

W(VSC),(L)

main47325-60111iFZJ105,HZJ105200208-200505

main47325-60170iFZJ100,HDJ100,UZJ100..GCC,GEN199801-200008

main47325-60172iFZJ100,HDJ100,UZJ100..GCC,GEN200008-200208

main47325-60180iFZJ100,HDJ100,UZJ100199801-200008

W(REAR DISC BRAKE) & W/O(ABS & VSC)

main47325-60182iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN)200505

W(REAR DISC BRAKE)

main47325-60251iUZJ100..4FC199907-200008

W(ABS & VSC)

main47325-60252iUZJ100..5FC..(ARL,GCC,GEN)200208-200505

W(VSC)

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-60210iFZJ105,HZJ105200505

main47351-60230iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47351-60240iUZJ100..ARL199801-200008

main47352-60120iFZJ105,HZJ105199801-200208

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47351-60270iUZJ100..VX..CHI199907

main47353-60110iHZJ105..LHD..STD;FZJ105,HZJ105..GX199801-200208

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47352-60140iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200208-200505

main47356-60011iHZJ105..LHD..STD;FZJ105,HZJ105..GX199801-200208

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-60121iFZJ105,HZJ105200208-200505

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-60150iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

47371ACLAMP, BRAKE TUBE, NO.1

main47371-60200×5iFZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX); FZJ105..LHD..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD199801-200208

W(ABS)

main47371-60210iFZJ100,HDJ100,UZJ100..LHD..(GCC,GEN); HDJ100..RHD..GEN;FZJ105,HZJ105..RHD200208-200505

47372CLAMP, BRAKE TUBE, NO.2

main47371-60080×3iFZJ105,HZJ105200505

main47371-60220×2iUZJ100..ARL199801-200008

47391WAY, BRAKE TUBE

main47391-60060iHDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN)200505

main47391-60080iUZJ100..5FC..ARL200208-200505

W(VSC)

main47391-60090iUZJ100..LHD..4FC199907-200208

W(ABS & VSC)

47392AWAY, BRAKE TUBE, NO.2

main47392-60030iFZJ100,HDJ100,UZJ100..GCC,GEN200505

main47392-60040iFZJ100,UZJ100..CHI200506

main47392-60050iFZJ105,HZJ105199801-200208

main47392-60060iHZJ105..LHD..STD;FZJ105,HZJ105..GX200505

W(ABS)

47393INSULATOR, BRAKE TUBE HEAT

main47393-60040iHZJ105..LHD..STD;FZJ105,HZJ105..GX200505

main47393-60060iFZJ100..CHI;UZJ100..5FC..GX..CHI200309-200506

9011908701

main90119-08701

9046108706

main90461-08706

9046108727

main90461-08727

9046714006

main90467-14006

9046808035

main90468-08035

9046808044

main90468-08044

9048001577

main90480-01577

9094901613

main90949-01613

9094901879

main90949-01879

9094901B48

main90949-01B48

9094901C06

main90949-01C06

91621B0616

main91621-B0616

91621J0814

main91621-J0814

91626B0828

main91626-B0828

91641K0822

main91641-K0822

48 parts on this diagram · 11 diagrams in section
