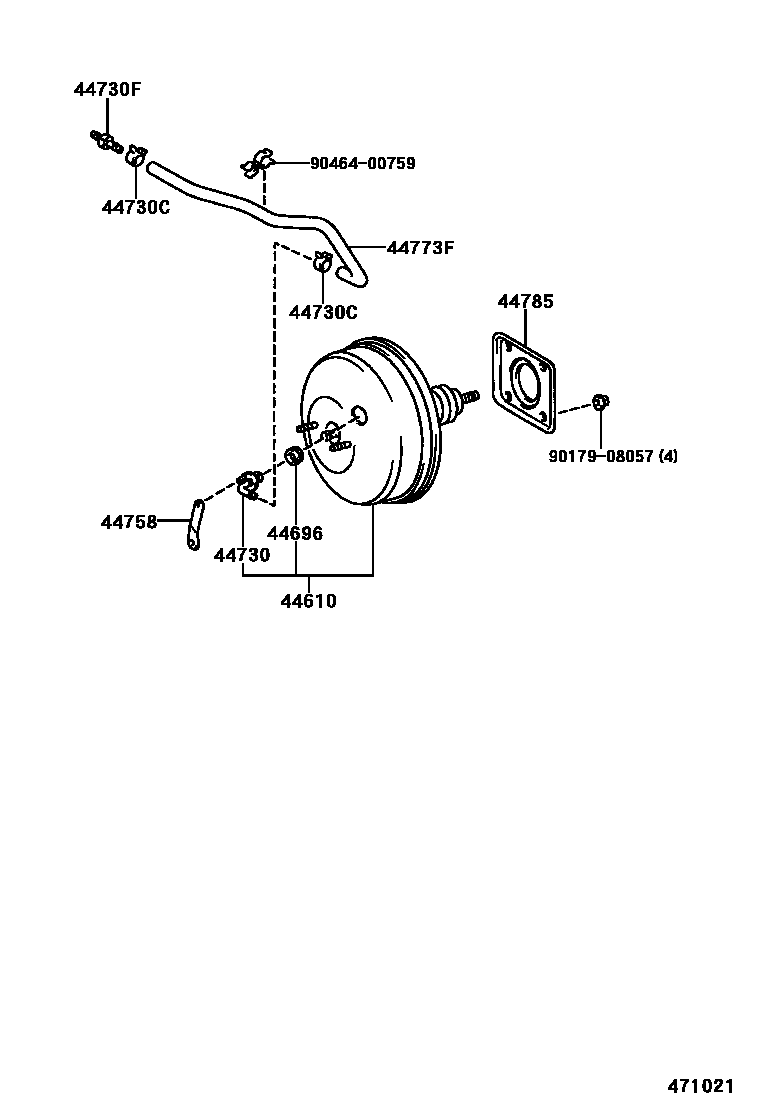

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1W(ABS)

44610BOOSTER ASSY, BRAKE

main44610-6A060iFZJ10#;UZJ100..LHD199907-200208

main44610-6A070iHDJ100,HZJ105..DSL2,TD2199801-200208

44696GROMMET, CHECK VALVE

main90480-24439iFZJ10#,UZJ100..GCC,GEN200505

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iFZJ10#;UZJ100..LHD199907-200208

main44730-60050iHZJ105;HDJ100..GEN200208-200505

44730CCLIP(FOR VACUUM HOSE)

main96133-41500×4iFZJ10#..LHD..(GCC,GEN); FZJ105..RHD;UZJ100..GCC,GEN; HDJ100..GEN;HZJ105..SOB;HZJ105..LUB..GEN200505

main96134-51500×8iFZJ105..RHD;UZJ100..LHD; HDJ100,HZJ105..DSL2,TD2199801-200208

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51237iFZJ100,UZJ100..GX..CHI200506

main90405-09186iUZJ100..GCC,GEN200505

44758BRACKET, VACUUM CHECK VALVE

main44758-42010iFZJ10#,UZJ100..GCC,GEN200505

44773FHOSE, UNION TO CHECK VALVE

main44773-60170iFZJ10#..LHD199801-200208

main44773-60180iUZJ100..ARL199801-199907

44785GASKET, BRAKE BOOSTER

main44785-60010iFZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2199801-200208

9017908057

main90179-08057

9046400759

main90464-00759

10 parts on this diagram · 7 diagrams in section
