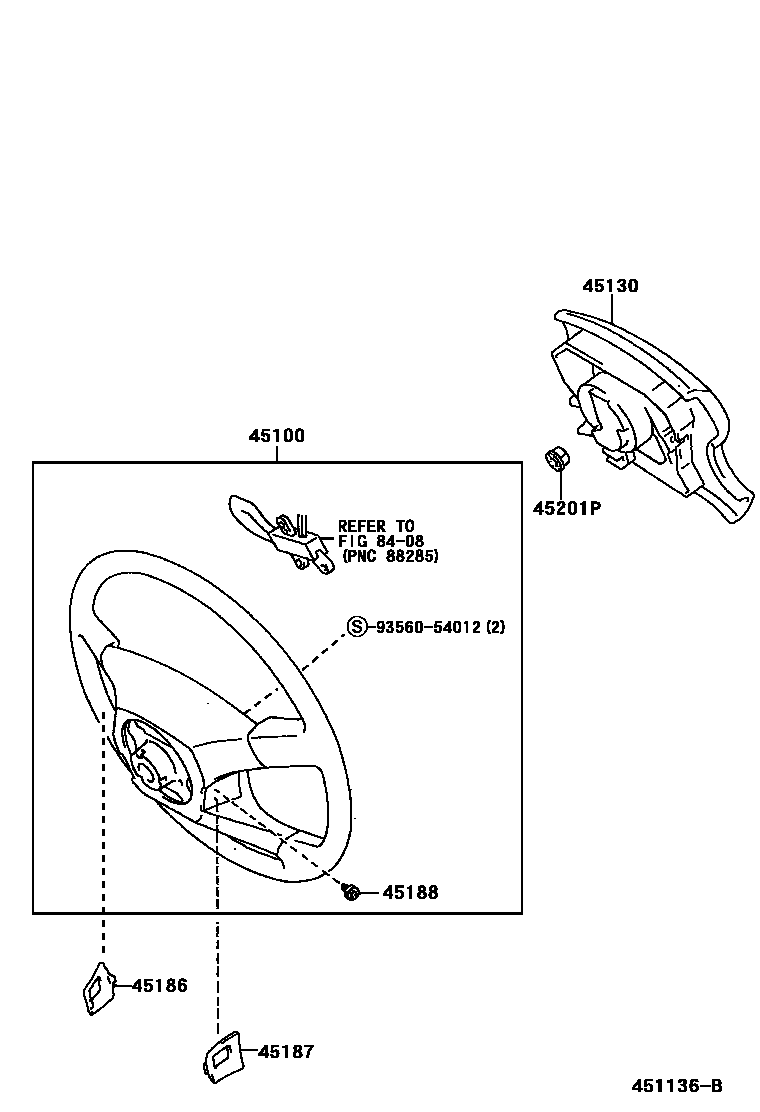

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,DK.GRAY,TRIM1#
4-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
3-SPOKE,URETHANE,SHADOW GRAY,TRIM1#
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,URETHANE,OAK,TRIM4#
3-SPOKE,URETHANE,SANDAL WOOD,TRIM0#
4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#
4-SPOKE,URETHANE,W(*80),OAK,TRIM4#
4-SPOKE,LEATHER,SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,OAK,TRIM4#
4-SPOKE,LEATHER,W(*80),SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,W(*80),OAK,TRIM4#
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),OAK,TRIM4#; 4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),OAK,TRIM40,41
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),OAK,TRIM40,41
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),SHADOW GRAY,TRIM1#
main45100-60302-E0iHDJ100,UZJ100..LUB..(EFI,TD2)..(ARL,GEN); HDJ100..SOB;FZJ105..GX..ARL;HDJ100..4FC..ARL200005-200208
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),OAK,TRIM4#; 4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),OAK,TRIM40,41
4-SPOKE,LEATHER,W(*80),SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,W(*80),OAK,TRIM4#
4-SPOKE,LEATHER,W(*80),SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,W(*80),OAK,TRIM4#
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),OAK,TRIM4#
4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#
4-SPOKE,URETHANE,W(*80),OAK,TRIM4#
4-SPOKE,URETHANE,W(*80),SHADOW GRAY,TRIM1#
4-SPOKE,URETHANE,W(*80),OAK,TRIM4#
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),SHADOW GRAY,TRIM1#
4-SPOKE,LEATHER,W(*80 & CRUISE CONTROL),OAK,TRIM40,41
4-SPOKE,LEATHER,DK.GRAY,TRIM1#
4-SPOKE,LEATHER,SANDAL WOOD,TRIM0#
45130BUTTON ASSY, HORN
W(3-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1#
W(3-SPOKE STEERING WHEEL),OAK,TRIM4#
W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0#
W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
W(4-SPOKE STEERING WHEEL),OAK,TRIM4#; W(4-SPOKE STEERING WHEEL),OAK,TRIM40,41
W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
W(4-SPOKE STEERING WHEEL),OAK,TRIM4#
W(4-SPOKE STEERING WHEEL),SHADOW GRAY,TRIM1#
W(4-SPOKE STEERING WHEEL),OAK,TRIM4#; W(4-SPOKE STEERING WHEEL),OAK,TRIM40,41
TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#
W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0#
TYPE A:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#
TYPE A:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0#
TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1#
TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0#
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-58010-B0iHDJ100,UZJ100..LHD..GEN;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN)200208-200505
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
W(CRUISE CONTROL),DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
SHADOW GRAY,TRIM1#
OAK,TRIM4#
W(CRUISE CONTROL),SHADOW GRAY,TRIM1#
main45186-60030-E0iHDJ100..SOB;FZJ105..GX..ARL;HDJ100..4FC..ARL; UZJ100;HDJ100..LUB..GEN199801-200208
W(CRUISE CONTROL),OAK,TRIM4#; W(CRUISE CONTROL),OAK,TRIM40,41
45187COVER, STEERING WHEEL, LOWER NO.3
SHADOW GRAY,TRIM1#
main45187-50030-E0iHDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI); UZJ100;HDJ100..LUB..GEN199801-200208
OAK,TRIM4#; OAK,TRIM40,41
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM0#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
8408CRUISE CONTROL (AUTO DRIVE)
9356054012
main93560-54012
8 parts on this diagram · 4 diagrams in section
