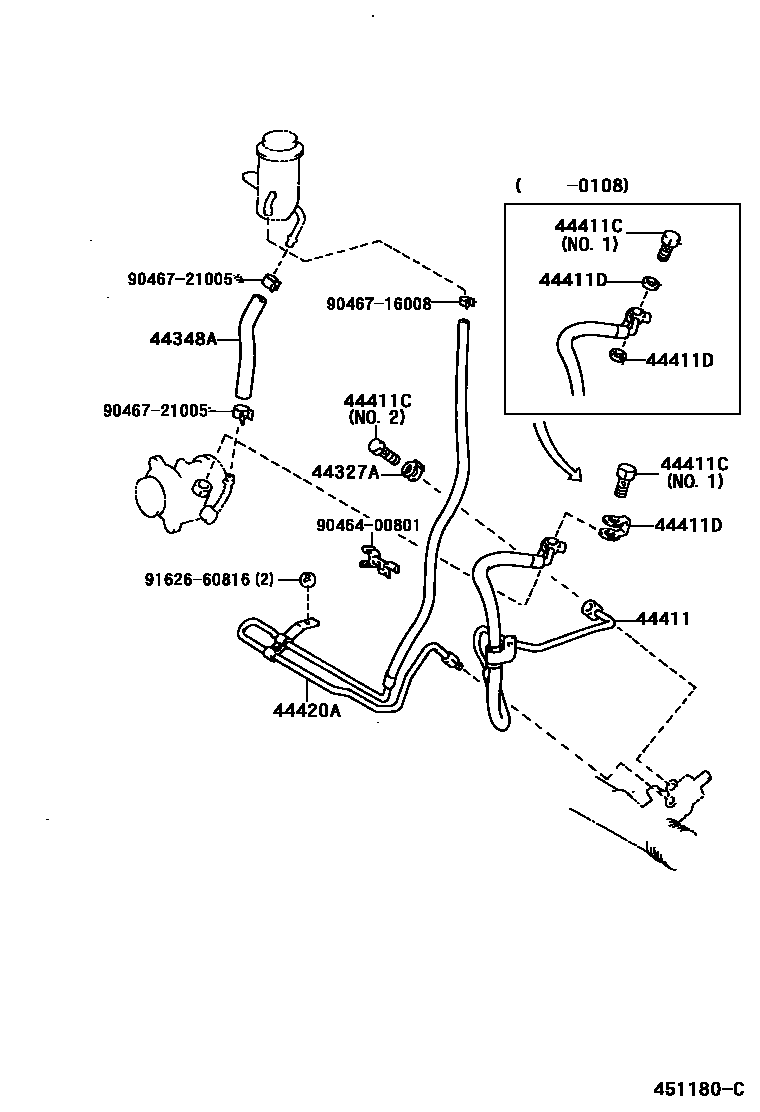

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iUZJ100..ARL199801-200008

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60120iHZJ105199801-200208

main44348-60230iFZJ100199801-200208

main44348-60250iHDJ100..ARL200008-200208

main44348-60260iUZJ100199801-200208

main44348-60270iFZJ105200505

main44348-60280iHDJ100..GEN199801-200208

main44348-60330iFZJ100..GCC200208-200505

main44348-60340iHDJ100200208-200209

main44348-60341iHDJ100200209-200505

main44348-60350iUZJ100..CHI200506

44411HOSE, PRESSURE FEED

main44411-60520iFZJ105..LHD200505

main44411-60530iHZJ105..LHD200505

main44411-60540iFZJ100199801-200208

main44411-60560iUZJ100..ARL199801-200008

main44411-60580iHDJ100..LHD199801-200208

main44411-60640iUZJ100..ARL200505

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16020iHDJ100,UZJ100..EFI,TDEFI199801-200108

NO.1

main90401-16027iFZJ100,HDJ100..GCC,GEN; FZJ105,HZJ105199801-200108

NO.1

main90401-16034iUZJ100..CHI200506

main90401-16040iFZJ100,HDJ100,UZJ100199801-200208

NO.2

main96341-41603iFZJ10#,HZJ105..ARL,GCC,GEN200505

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30030iFZJ100..CHI200506-200606

main44327-30040iHDJ100,UZJ100..ARL,GCC,GEN200505

main90430-16168×2iFZJ10#,HDJ100,HZJ105,UZJ100199801-200108

44420COOLER ASSY, OIL

main44420-60370iHDJ100..LHD199801-200208

main44420-60380iUZJ100..ARL199801-200008

44420ATUBE ASSY, RETURN

main44420-60390iFZJ105..LHD200505

main44420-60400iHZJ105..LHD199801-200208

main44420-60420iFZJ100199801-200208

main44420-60460iFZJ100..CHI200309

main44420-60461iFZJ100..GCC200408-200409

main44420-60463iFZJ100..GCC200505

main44420-60470iHDJ100..LHD200208-200408

main44420-60471iHDJ100..LHD200408-200409

main44420-60473iHDJ100..LHD200505

9046400801

main90464-00801

9046716008

main90467-16008

9046721005

main90467-21005

9162660816

main91626-60816

11 parts on this diagram · 15 diagrams in section
