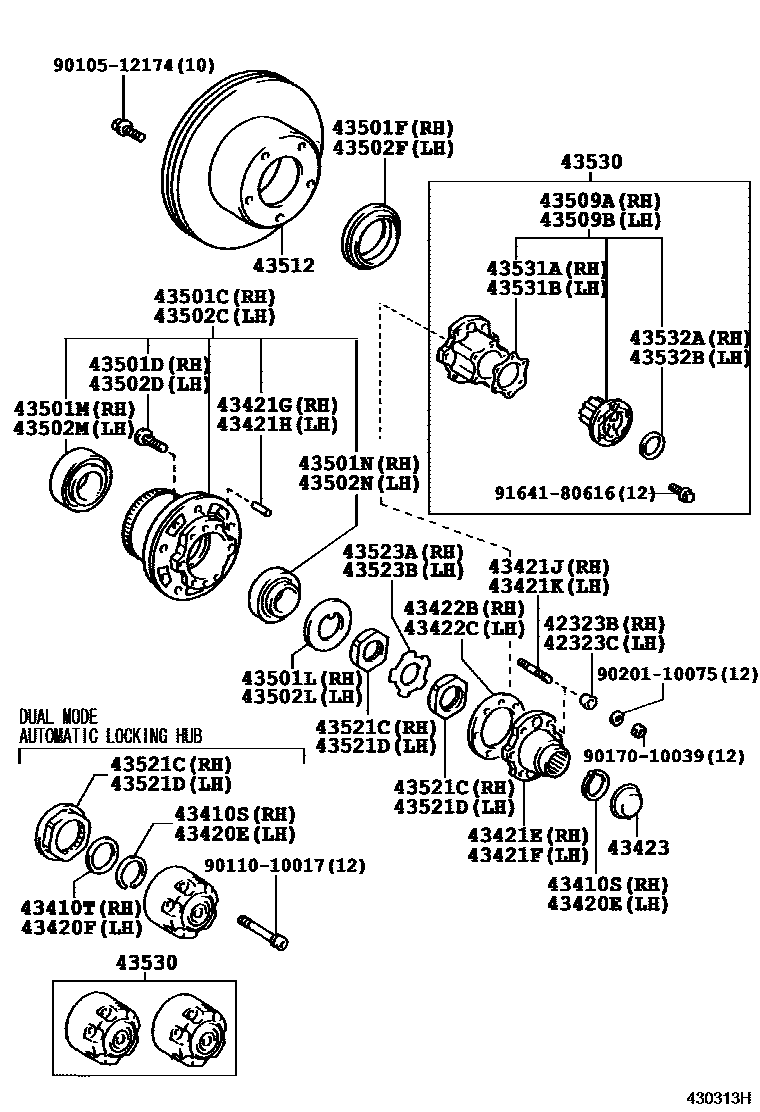

FRONT AXLE HUB

0001 1 0002 1

42323BWASHER, CONE (FOR FRONT AXLE SHAFT RH)

main42323-60030×6iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200505

42323CWASHER, CONE (FOR FRONT AXLE SHAFT LH)

main42323-60030×6iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43410SRING, SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-31005iFZJ100,UZJ100..CHI200506

T=2.8

main90520-31006iFZJ100,UZJ100..CHI200506

T=2.6

main90520-31007iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

T=2.4

main90520-31008iFZJ100,UZJ100..CHI200506

T=2.2

main90520-31009iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

T=2.0

main90520-31010iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

T=1.8

43410TSPACER (FOR FRONT DRIVE SHAFT RH)

main90560-33008iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)200208-200505

43420ERING, SNAP (FOR FRONT DRIVE SHAFT LH)

main90520-31005iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

T=2.8

main90520-31006iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

T=2.6

main90520-31007iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

T=2.4

main90520-31008iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200505

T=2.2

main90520-31009iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

T=2.0

main90520-31010iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200505

T=1.8

43420FSPACER (FOR FRONT DRIVE SHAFT LH)

main90560-33008iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)200208-200505

43421EFLANGE, FRONT AXLE OUTER SHAFT, RH

main43421-60030iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200505

43421FFLANGE, FRONT AXLE OUTER SHAFT, LH

main43421-60030iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43421GPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90250-10032×2iUZJ100..ARL199801-200008

43421HPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90250-10032×2iUZJ100..ARL199801-200008

43421JBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90116-10201×6iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

43421KBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90116-10201×6iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43422BGASKET, FRONT AXLE OUTER SHAFT FLANGE, RH

main43422-60070iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43422CGASKET, FRONT AXLE OUTER SHAFT FLANGE, LH

main43422-60070iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43423CAP, FRONT AXLE OUTER SHAFT FLANGE

main43423-35010×2iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-69075iFZJ100,HDJ100,UZJ100..GCC,GEN199907-200004

main43502-69085iFZJ105,HZJ105200208-200505

main43503-69015iUZJ100..LHD;FZJ100,HDJ100200004-200208

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02077×5iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

main90942-02083×5iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200708

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-62001iFZJ105,HZJ105200208-200505

main90311-70011iFZJ100,UZJ100..CHI200506

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-42030iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-36064iFZJ105,HZJ105200208-200505

main90080-36098iUZJ100..ARL199801-200008

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90080-36067iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-69075iFZJ100,HDJ100,UZJ100199801-199907

main43502-69085iFZJ105,HZJ105200505

main43503-69015iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200505

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02077×5iFZJ100,UZJ100..CHI200506-200711

main90942-02083×5iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200708

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-62001iFZJ105,HZJ105200208-200505

main90311-70011iFZJ100..CHI;UZJ100..5FC..CHI200309-200506

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-42030iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-36064iFZJ105,HZJ105200208-200505

main90080-36098iFZJ100,UZJ100..CHI200506

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90080-36067iFZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN200208-200505

43509ACOVER SUB-ASSY, FREE WHEEL HUB, RH

main43509-60051iHZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN200208-200505

43509BCOVER SUB-ASSY, FREE WHEEL HUB, LH

main43509-60051iHZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN199801-200208

43512DISC, FRONT

main43512-60130×2iFZJ100,HDJ100,UZJ100199801-200208

main43512-60140×2iFZJ105,HZJ105200505-200512

main43512-60141×2iFZJ105,HZJ105200512

main43512-60170×2iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN200505-200512

main43512-60171×2iFZJ100,HDJ100,UZJ100..ARL,GCC,GEN; FZJ100,UZJ100..CHI200512

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-60011×2iFZJ100,UZJ100..CHI200506

main43521-60020iFZJ105,HZJ105..GEN200505

*DMALH

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-60011×2iFZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)199801-200208

main43521-60020iHZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN199808-199907

*DMALH

43523AWASHER, FRONT WHEEL ADJUSTING LOCK, RH

main90215-42025iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43523BWASHER, FRONT WHEEL ADJUSTING LOCK, LH

main90215-42025iFZJ105,UZJ100..(STD,VX)..ARL199801-200008

43530HUB ASSY, FREE WHEEL

main43530-60130×2iHZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN199801-200208

main43530-69065iHZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN)200208-200505

*DMALH

43531AGASKET, FREE WHEEL HUB, RH

main43531-60010iHZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN199801-200208

43531BGASKET, FREE WHEEL HUB, LH

main43531-60010iHZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN200208-200505

43532ARING, FREE WHEEL HUB, RH

main43532-60010iHZJ105..SOB;FZJ10#..GCC,GEN;FZJ105..STD..ARL;HZJ105..LUB..GEN199801-200208

43532BRING, FREE WHEEL HUB, LH

main43532-60010iHZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN200505

9010512174

main90105-12174

9011010017

main90110-10017

9017010039

main90170-10039

9020110075

main90201-10075

9164180616

main91641-80616

44 parts on this diagram · 2 diagrams in section
