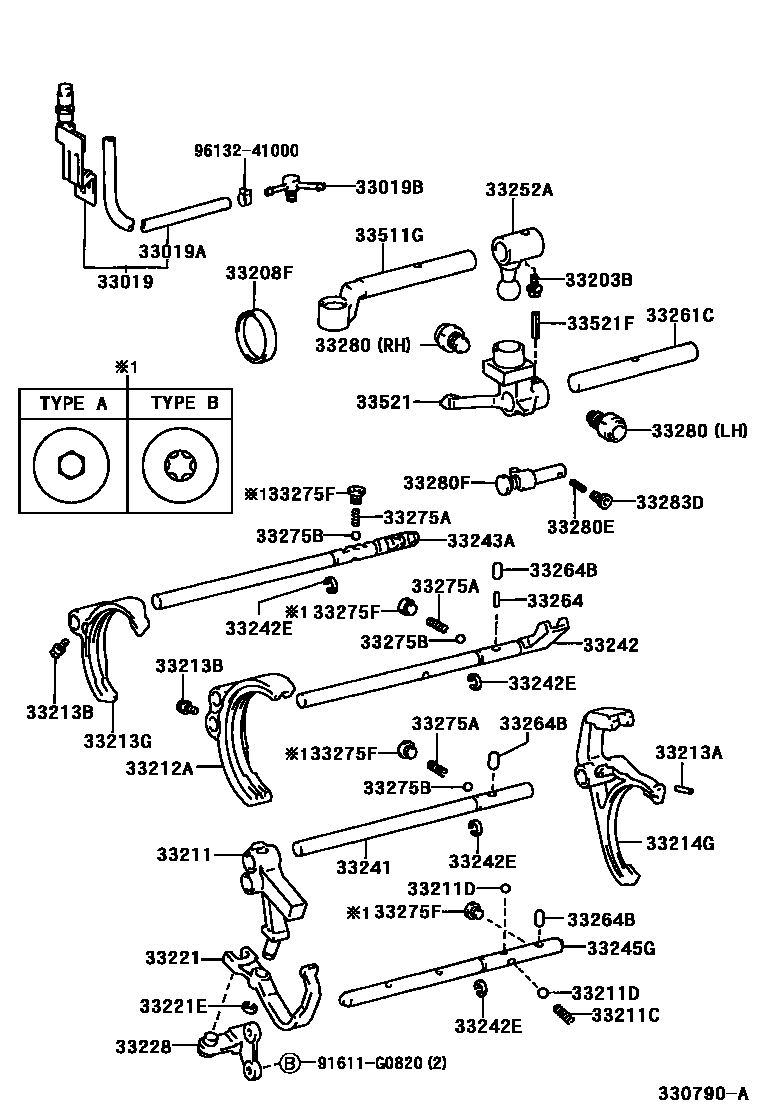

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33019BREATHER SUB-ASSY, TRANSMISSION
BENCH SEAT TYPE
SEPARATE SEAT TYPE
33019AHOSE(FOR TRANSMISSION BREATHER)
BENCH SEAT TYPE
SEPARATE SEAT TYPE
33019BWAY(FOR TRANSMISSION BREATHER HOSE)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)
33211FORK, REVERSE SHIFT
33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)
33211DBALL(FOR REVERSE SHIFT FORK)
OD=9.52,STEEL
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33221ERING(FOR REVERSE SHIFT ARM END SHAFT)
33228BRACKET, REVERSE SHIFT ARM
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33245GSHAFT, GEAR SHIFT FORK, NO.4
33252ALEVER, SHIFT, INNER NO.2
33261CSHAFT, SHIFT & SELECT LEVER
BENCH SEAT TYPE
SEPARATE SEAT TYPE
SEPARATE SEAT TYPE
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
L=15.45
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13.6,OD=9.5
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=29.3
L=33.8
33275BBALL, SHAFT DETENT
33275FPLUG (FOR SHIFT DETENT BALL)
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER ILLUST.
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER ILLUST.
33280PIN ASSY, REVERSE RESTRICT
LH
RH
RH
LH
LH
LH
33280EPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33280FPIN ASSY, REVERSE RESTRICT
33283PIN, REVERSE RESTRICT, NO.1
33283DPLUG (FOR REVERSE RESTRICT PIN)
33511GSHAFT, CONTROL
33521HOUSING, SHIFT LEVER
BENCH SEAT TYPE
SEPARATE SEAT TYPE
BENCH SEAT TYPE
SEPARATE SEAT TYPE
SEPARATE SEAT TYPE
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
91611G0820
main91611-G0820
9613241000
main96132-41000
38 parts on this diagram · 5 diagrams in section
