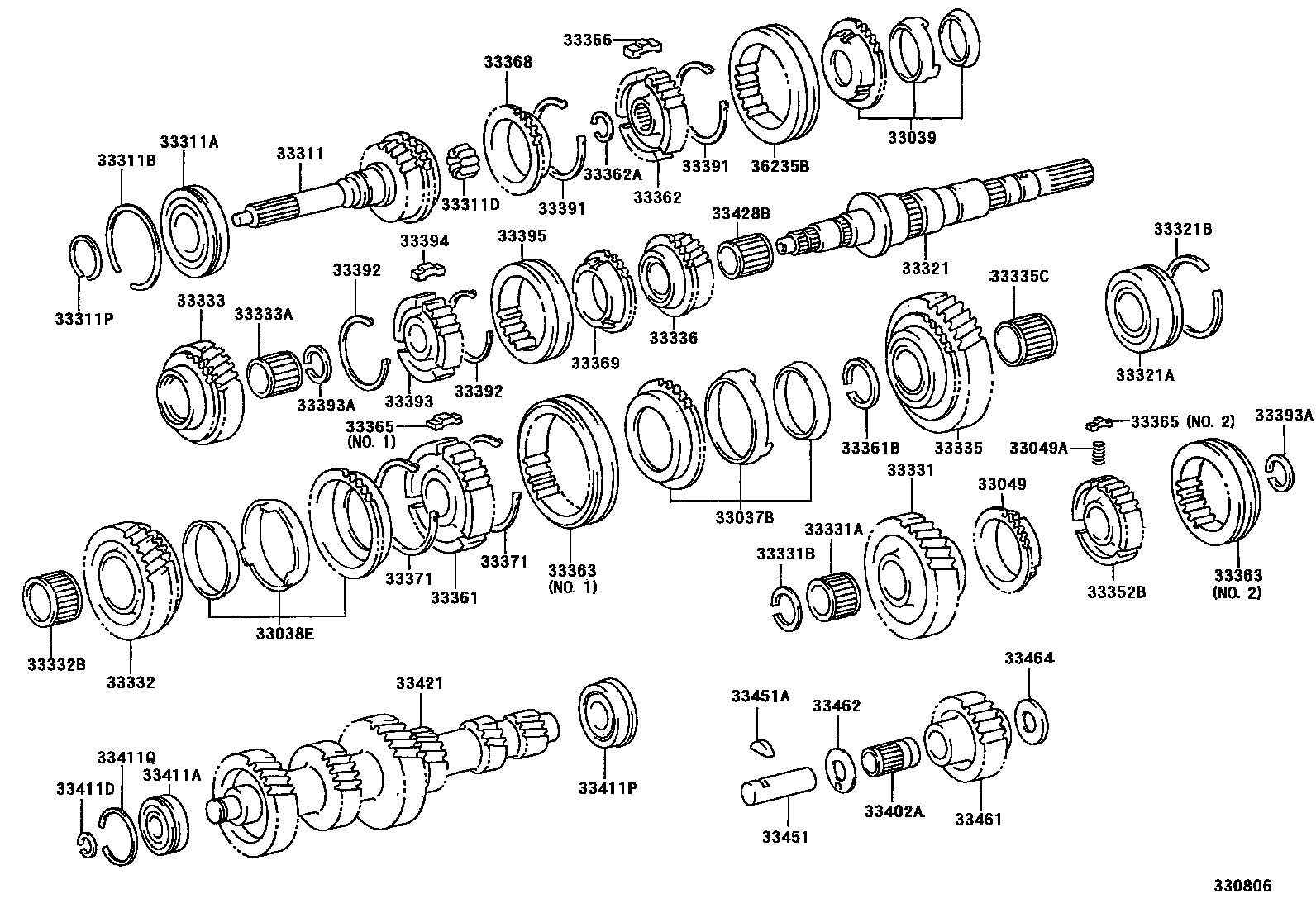

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
NO.1
NO.2
33038ERING SET, SYNCHRONIZER, NO.2
33039RING SET, SYNCHRONIZER, NO.3
33049RING SET, REVERSE SYNCHRONIZER
33049ASPRING, COMPRESSION
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
T=2.36-2.46
33311DBEARING, INPUT SHAFT
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.50-2.55,MARK A
T=2.55-2.60,MARK B
T=2.60-2.65,MARK C
T=2.65-2.70,MARK D
T=2.70-2.75,MARK E
T=2.75-2.80,MARK F
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
T=2.95,MARK G
T=3.00,MARK H
T=3.05,MARK J
T=3.10,MARK K
T=3.15,MARK L
T=3.20,MARK M
T=3.25,MARK N
T=3.30,MARK P
T=3.35,MARK Q
T=3.40,MARK R
T=3.45,MARK S
ID=106.1,OD=115.64
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33331BRING, SET (FOR REVERSE GEAR)
T=2.40-2.45,MARK A
T=2.45-2.50,MARK B
T=2.50-2.55,MARK C
T=2.55-2.60,MARK D
T=2.60,MARK E
T=2.65,MARK F
T=2.70,MARK G
T=2.75,MARK H
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33352BHUB, TRANSMISSION CLUTCH, NO.4
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.90-2.95,MARK A
T=2.95-3.00,MARK B
T=3.00-3.05,MARK C
T=3.05-3.10,MARK D
T=3.10-3.15,MARK E
T=3.15-3.20,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=1.90-1.95,MARK 4
T=1.95-2.00,MARK 5
T=2.00-2.05,MARK 6
T=2.05-2.10,MARK 7
T=2.10-2.15,MARK 8
T=2.15-2.20,MARK 9
33363SLEEVE, TRANSMISSION HUB, NO.1
NO.2
NO.1
NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
NO.2
NO.1
NO.1
NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.40-2.45,MARK A
T=2.45-2.50,MARK B
T=2.50-2.55,MARK C
T=2.55-2.60,MARK D
T=2.60-2.65,MARK E
T=2.65-2.70,MARK F
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=2.45-2.50,MARK A
T=2.50-2.55,MARK B
T=2.55-2.60,MARK C
T=2.60-2.65,MARK D
T=2.65-2.70,MARK E
T=2.70-2.75,MARK F
T=1.07,OD=62
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=1.60-1.70
33421GEAR, COUNTER
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33461GEAR, REVERSE IDLER
33462WASHER, REVERSE IDLER THRUST
33464WASHER, REVERSE IDLER THRUST, NO.2
36235BSLEEVE, TRANSMISSION HUB, NO.2
55 parts on this diagram · 2 diagrams in section
