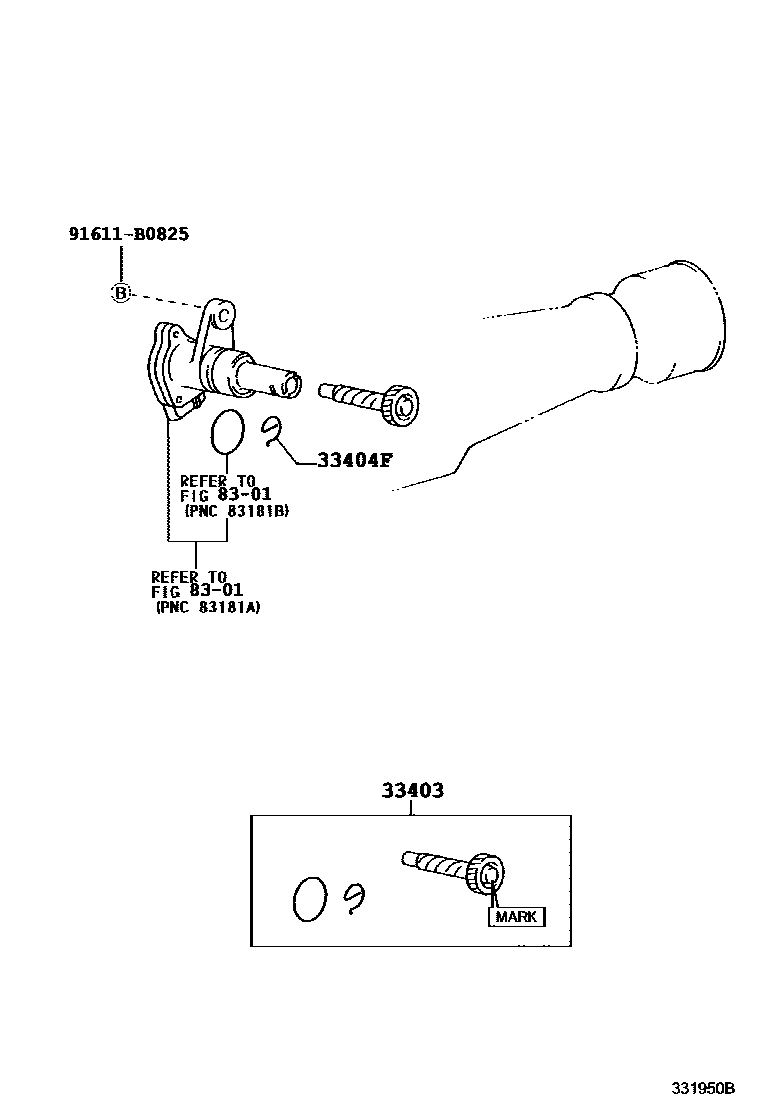

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19575iHDJ100..5F..GEN200505

N=31,MARK 31:12

main33403-19595iHDJ100..5F200208-200505

N=32,MARK 12:32

main33403-69305iFZJ10#,HDJ100,HZJ105,UZJ100..5F..(GX,VX)..(DSL2,EFI,TD2)199801-200201

N=31,MARK 11:31

main33403-69325iUZJ100..5F..GEN;FZJ10#,HDJ100,HZJ105..5F..(DSL2,EFI,TD2)199801-200208

N=33,MARK 12:33

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iFZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN)200208-200505

8301METER

→ Go to FIG 83-01

91611B0825

main91611-B0825

4 parts on this diagram · 1 diagram in section
