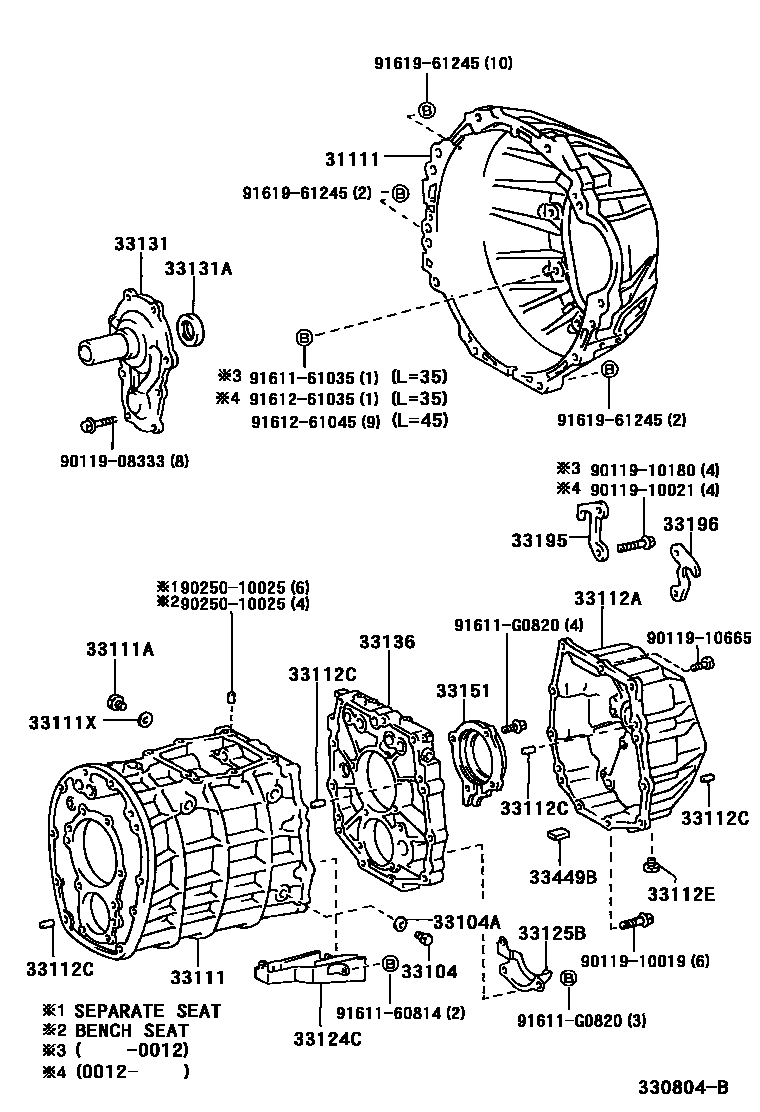

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1H151 0002 1H151 0003 1R151F 0004 1H151

31111HOUSING, CLUTCH

main31111-60290iHDJ100..5F199801-200208

main31111-60300iFZJ10#..5F199801-199908

main31111-60301iFZJ10#..5F199908-200104

main31111-60302iFZJ10#..5F200104

main31111-60310iUZJ100..5F199801-200105

main31111-60311iUZJ100..5F..(ARL,GCC)200505

main31111-60320iHZJ105..5F199801-199908

main31111-60321iHZJ105200208-200505

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006×2iFZJ10#,HDJ100,UZJ100..5F; HZJ105..5F199801-200208

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008×2iFZJ10#,HDJ100,UZJ100..5F; HZJ105200208-200301

33111CASE, MANUAL TRANSMISSION

main33101-60012iFZJ100..5F;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB199801-199908

BENCH SEAT TYPE

main33101-60013iFZJ100..5F;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB199908-200208

BENCH SEAT TYPE

main33101-60040iHZJ105200208-200505

main33101-60071iHDJ100..SOB200208-200301

main33101-60080iFZJ10#..5F;HDJ100..LUB..5F199801-199908

SEPARATE SEAT TYPE

main33101-60081iFZJ10#..5F200208-200301

SEPARATE SEAT TYPE

main33101-60090iUZJ100..5F199801-199908

main33101-60091iUZJ100..5F;HDJ100..LUB..5F200208-200301

main33101-60100iFZJ10#..LHD..5F..(GCC,GEN)200505

BENCH SEAT TYPE

main33101-60110iFZJ100..5F..CHI200506-200606

main33101-60120iHDJ100..SOB200505

main33101-60130iHDJ100..LUB..5F;UZJ100..5F..(ARL,GCC)200505

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006×2iFZJ10#,HDJ100,UZJ100..5F199801-200208

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008×2iFZJ10#,HDJ100,UZJ100..5F200208-200301

33112AADAPTER, TRANSFER

main36107-60030iFZJ10#,UZJ100..5F..(GCC,GEN); HDJ100,UZJ100..LUB..5F..(ARL,GEN)200505-200708

SEPARATE SEAT TYPE

main36117-60071iFZJ100..5F;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB199801-199908

BENCH SEAT TYPE

main36117-60072iFZJ100..5F;FZJ105..LHD..LUB;FZJ105,HDJ100..SOB199908-200208

BENCH SEAT TYPE

main36117-60170iFZJ10#..LHD..5F..(GCC,GEN)200505-200708

BENCH SEAT TYPE

33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)

main90250-12002×8iFZJ10#,HDJ100..5F..(GX,STD);HDJ100,UZJ100..5F..VX..(EFI,TD2)199801

33112EPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-12008iFZJ10#,HDJ100,UZJ100..5F..(ARL,GCC,GEN)200505

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-60020iFZJ10#,HDJ100..5F..(GX,STD);HDJ100,UZJ100..5F..VX..(EFI,TD2)199801

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-60010iFZJ10#,HDJ100,UZJ100..5F..(ARL,GCC,GEN)200208-200505

33131RETAINER, BEARING, FRONT(MTM)

main33131-60070iFZJ100..5F..CHI200506-200606

main33131-60080iHZJ105200208-200505

main33131-60090iUZJ100..5F200208-200505

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iHZJ105200505-200706

main90311-32022iHZJ105200706

main90311-35023iFZJ10#,HDJ100..5F..(GX,STD);HDJ100,UZJ100..5F..VX..(EFI,TD2)199801

33136PLATE, TRANSMISSION INTERMEDIATE

main33136-60020iFZJ10#,HDJ100,UZJ100..5F199801-199905

main33136-60021iFZJ10#,HDJ100..5F..(GX,STD);HDJ100,UZJ100..5F..VX..(EFI,TD2)199905

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iHZJ105..5F199801-200208

main33151-60030iFZJ10#,HDJ100..5F..(GX,STD);HDJ100,UZJ100..5F..VX..(EFI,TD2)199801

33195HANGER, TRANSMISSION CASE, NO.1

main33195-60011iFZJ10#,HDJ100,UZJ100..5F199801-199908

main33195-60012iFZJ10#,HDJ100..5F..(GX,STD);HDJ100,UZJ100..5F..VX..(EFI,TD2)199908

33196HANGER, TRANSMISSION CASE, NO.2

main33196-60010iFZJ10#,HDJ100,UZJ100..5F..(ARL,GCC,GEN)200505

33449BMAGNET, TRANSMISSION

main33449-35010iFZJ100,UZJ100..5F..CHI200506

main33449-35030iHZJ105..5F199801-200208

9011908333

main90119-08333

9011910019

main90119-10019

9011910021

main90119-10021

9011910180

main90119-10180

9011910665

main90119-10665

9025010025

main90250-10025

9161160814

main91611-60814

9161161035

main91611-61035

91611G0820

main91611-G0820

9161261035

main91612-61035

9161261045

main91612-61045

9161961245

main91619-61245

30 parts on this diagram · 4 diagrams in section
