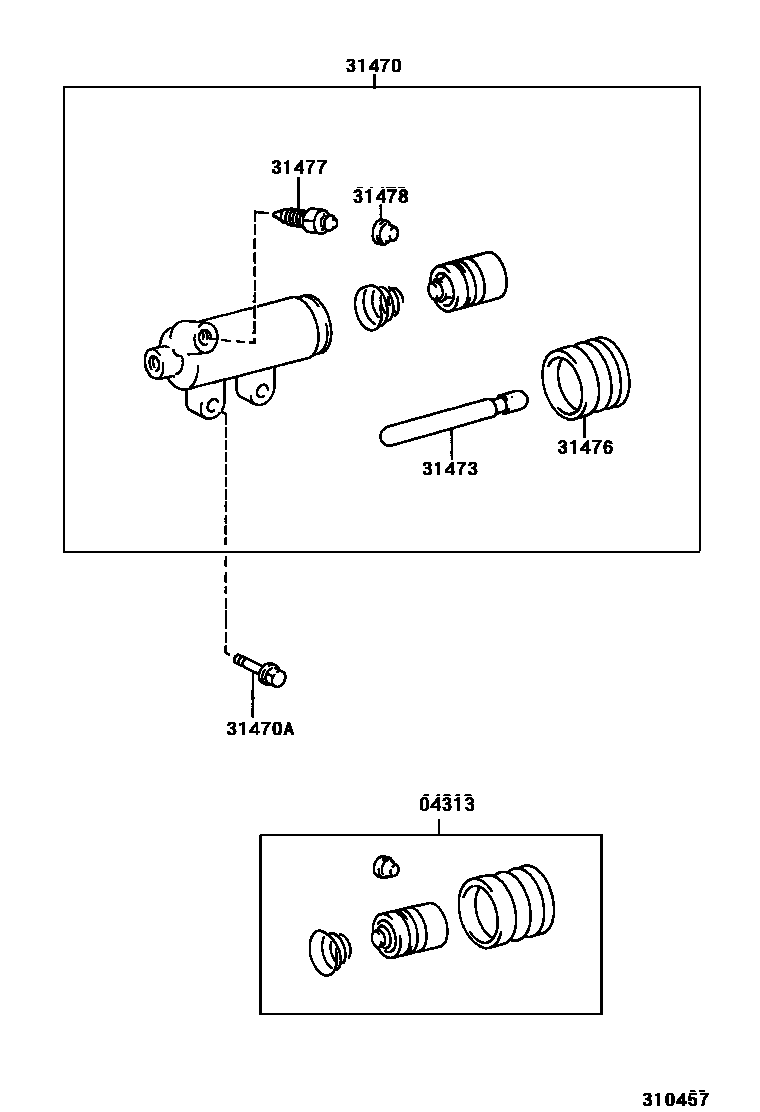

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iFZJ105;FZJ100..STD199801-200606

main04313-60140iHDJ100,HZJ105..5F199801-200502

main04313-60150iUZJ100..5F..ARL199801-200505

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-60240iUZJ100..5F..CHI199801-200505

main31470-60250iFZJ100..5F199801-200606

main31470-60260iFZJ105..5F199801-200505

main31470-60270iHDJ100..5F199801-200505

main31470-60280iHZJ105..5F199801-200505

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iFZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN)199801-200506

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60141iHDJ100,HZJ105..5F199801-200505

main31473-60160iUZJ100..5F199801-200505

main31473-60170iFZJ10#..5F199801-200606

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iFZJ100..5F..CHI199801-200606

main31476-36010iUZJ100..5F199801-200505

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iHDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD)199801-200506

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iHDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD)199801-200506

7 parts on this diagram · 3 diagrams in section
