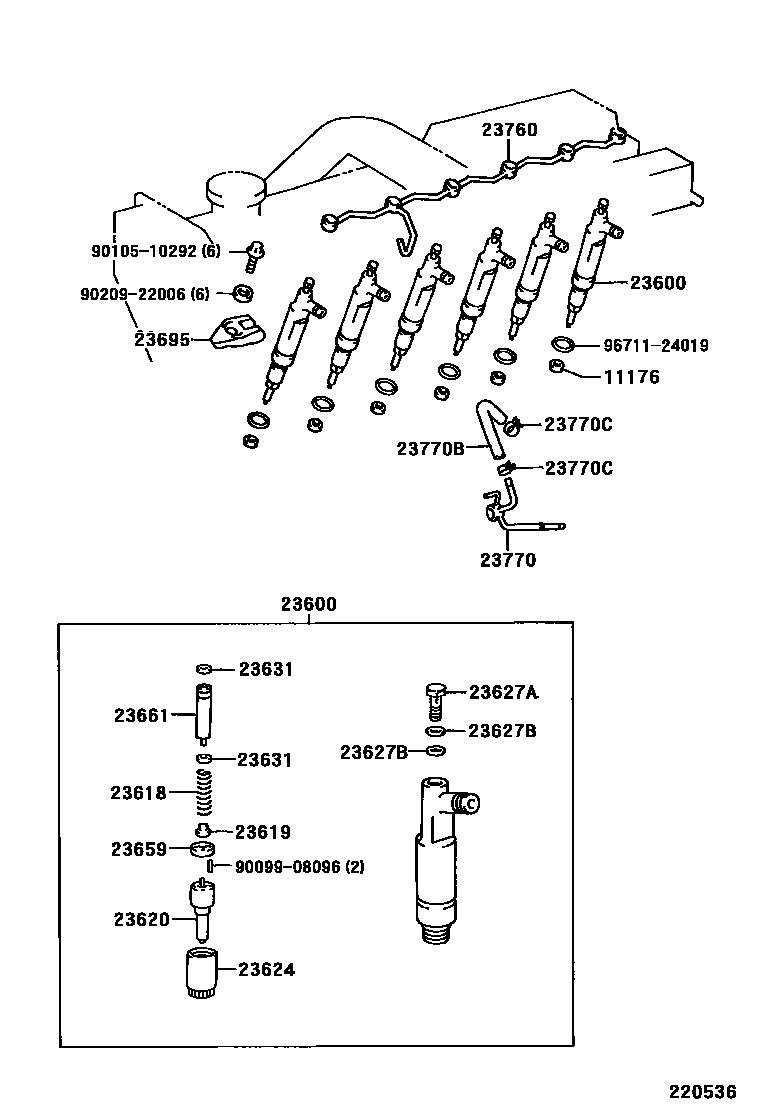

INJECTION NOZZLE
23618SPRING, NOZZLE HOLDER PRESSURE
NO.1
NO.2
23619PIN, NOZZLE HOLDER PRESSURE
23620NOZZLE ASSY
CHINA SPEC
23624NUT, NOZZLE RETAINING
CHINA SPEC
23627ASCREW, FOLLOW(FOR NOZZLE)
23627BWASHER, COPPER PLATE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=1.28
T=1.29
T=1.31
T=1.32
T=1.33
T=1.34
T=1.36
T=1.37
T=1.38
T=1.39
T=0.8
T=0.9
T=0.975
T=1.05
T=1.125
T=1.2
T=1.275
T=1.35
T=1.425
T=1.5
T=1.575(DA=6.2)
T=0.85
T=0.875
T=0.925
T=0.95
T=1.0
T=1.025
T=1.075
T=1.1
T=1.15
T=1.175
T=1.225
T=1.25
T=1.3
T=1.325
T=1.375
T=1.4
T=1.45
T=1.475
T=1.525
T=1.65
T=1.725(DA=6.2)
T=1.8
T=1.875
T=1.95
T=2.0
T=2.1
T=2.175
T=1.6
T=1.625
T=0.825
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=0.900
T=0.925
T=0.950
T=0.975
T=1.000
T=1.025
T=1.050
T=1.075
T=1.100
T=1.125
T=1.41
T=1.42
T=1.43
T=1.44
T=1.46
T=1.47
T=1.48
T=1.49
T=1.51
T=1.52
T=1.675
T=1.7
T=1.75
T=1.775
T=1.825
T=1.85
T=1.9
T=1.925
T=1.975
T=2.05
T=2.075
T=2.125
T=2.15
T=2.2
T=2.025
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.150
T=1.175
T=1.200
T=1.225
T=1.250
T=1.275
T=1.300
T=1.325
T=1.350
T=1.375
T=1.53
T=1.54
T=1.56
T=1.57
T=1.58
T=1.59
T=1.61
T=1.62
T=1.63
T=1.64
T=0.950
T=0.700
T=0.750
T=0.800
T=0.850
T=0.900
T=0.975
T=1.025
T=1.400
T=1.425
T=1.450
T=1.475
T=1.500
T=1.525
T=1.550
T=1.575
T=1.600
T=1.625
T=1.66
T=1.67
T=1.68
T=1.69
T=1.075
T=1.125
T=1.175
T=1.225
T=1.650
T=1.675
T=1.700
T=1.725
T=1.750
T=1.775
T=1.800
T=1.825
T=1.850
T=1.875
T=1.900
T=1.925
T=1.950
23659PACKING, TIP(FOR NOZZLE)
23661CAPSULE SUB-ASSY
23760PIPE ASSY, NOZZLE LEAKAGE
23770BHOSE, FUEL
L=100(*H,L=80)
L=200(*H,L=140)
9009908096
main90099-08096
9010510292
main90105-10292
9020922006
main90209-22006
9671124019
main96711-24019
20 parts on this diagram · 4 diagrams in section
