V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

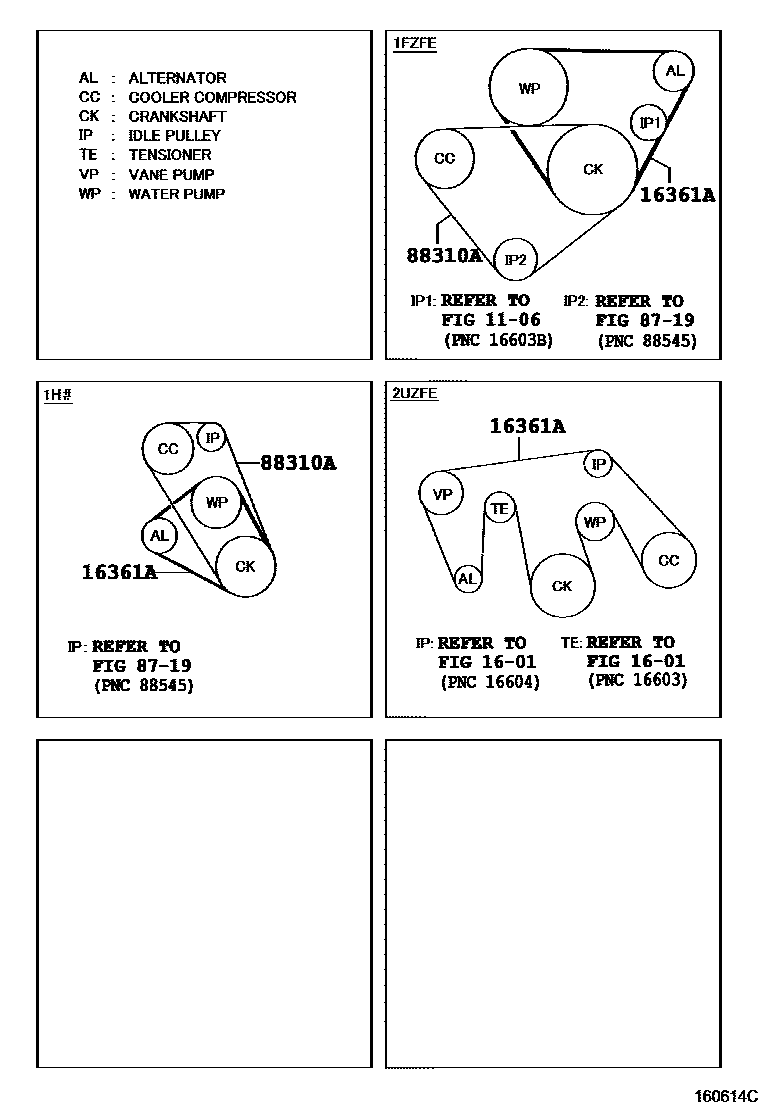

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02353i1FZFE..FZJ100..CHI200309-200506

main90916-02437i2UZFE..UZJ100199801-200208

L=2200

main90916-02452i1H#..HDJ100,HZJ105200208-200505

main90916-02463i2UZFE..UZJ100..CHI200309-200402

main90916-02585i2UZFE..UZJ100..5FC..CHI200402-200506

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02644iHDJ100..GX; HDJ100..VX200505

L=1240; L=1240,DUAL AIR CONDITIONER

main99332-11300iHZJ105200208-200505

L=1300

main99332-60910iFZJ100..CHI200506-200606

L=910

main99364-31240iHDJ100..ARL200008-200208

L=1240

5 parts on this diagram · 1 diagram in section
