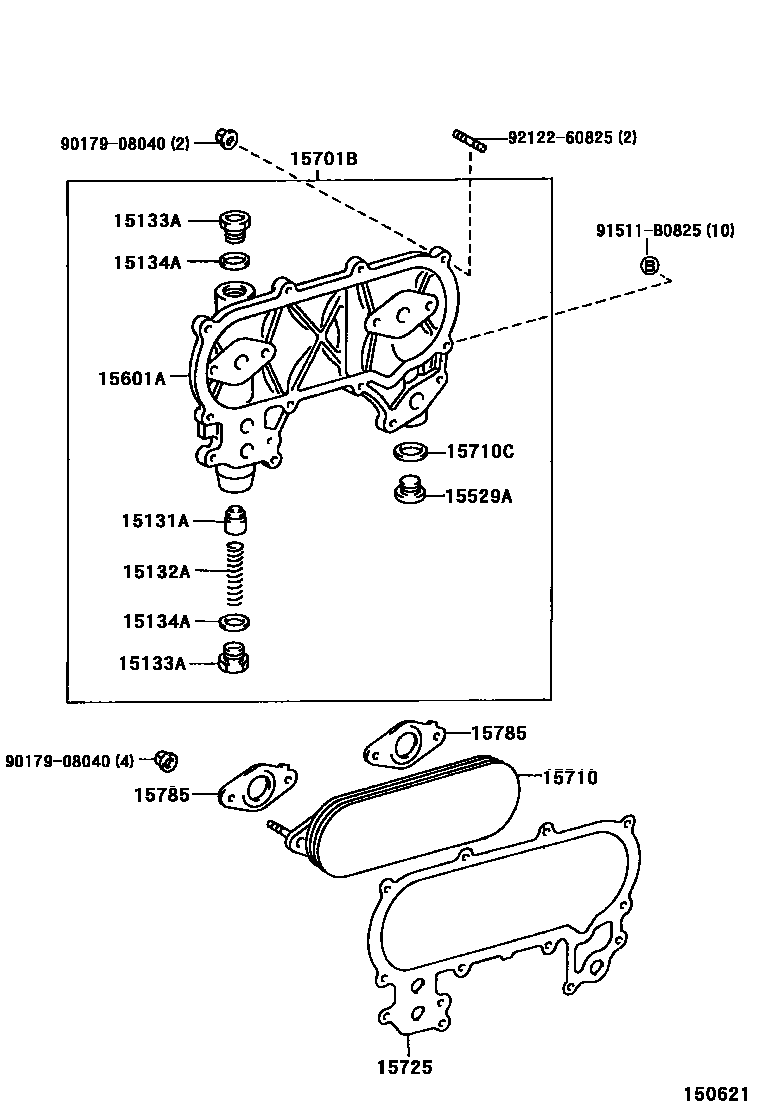

ENGINE OIL COOLER

0001 1 0002 1 0003 1

15131AVALVE, OIL COOLER RELIEF

main15131-64020i1FZFE..FZJ10#..GCC,GEN200208-200505

15132ASPRING, OIL COOLER RELIEF VALVE

main15132-50010i1FZFE..FZJ10#199801-200208

15133APLUG, OIL COOLER RELIEF VALVE

main15133-20010×2i1FZFE..FZJ10#199801-200208

15134AGASKET, OIL COOLER RELIEF VALVE

main15134-20010×2i1FZFE..FZJ10#199801-200208

15529APLUG

main90341-20002i1FZFE..FZJ10#199801-200208

15601ACOVER, OIL COOLER

main15721-66010i1FZFE..FZJ10#..GCC,GEN200208-200505

15701BCOVER SUB-ASSY, OIL COOLER

main15701-66010i1FZFE..FZJ100..CHI200309-200506

15710COOLER ASSY, OIL

main15710-17010i1HDT,1HZ..HDJ100,HZJ105199801-200103

main15710-17011i1HDT,1HZ..HDJ100,HZJ105200103-200208

main15710-17020i1HDFTE..HDJ100200008-200104

main15710-17021i1HDFTE..HDJ100200505

main15710-50020i2UZFE..UZJ100..ARL199801-200008

main15710-54030i1FZFE..FZJ10#199801-200208

main15710-66020i1FZFE..FZJ10#..GCC,GEN200505

15710CGASKET(FOR OIL COOLER)

main15134-17010i1FZFE..FZJ100..CHI200309-200506

15725GASKET, OIL COOLER COVER

main15725-66010i1FZFE..FZJ10#199801-200208

15785GASKET, OIL COOLER

main15785-66010×2i1FZFE..FZJ10#; 1HD#,1HZ..HDJ100,HZJ105199801-200208

9017908040

main90179-08040

91511B0825

main91511-B0825

9212260825

main92122-60825

14 parts on this diagram · 3 diagrams in section
