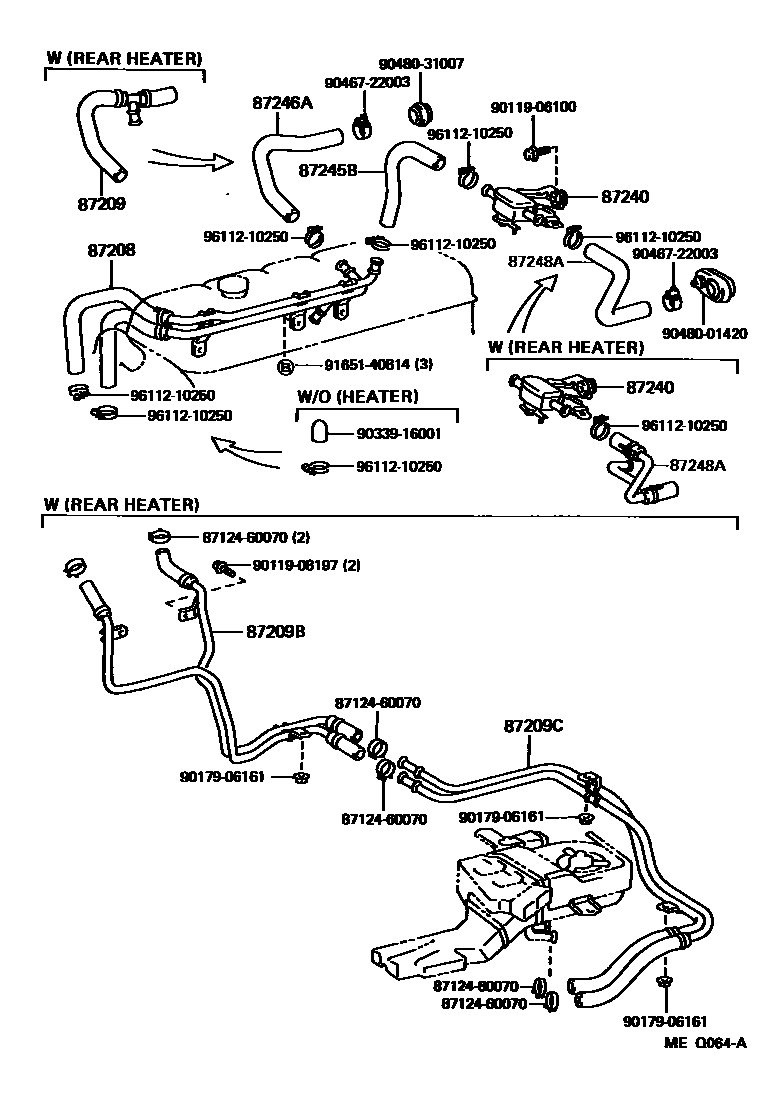

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

87208PIPE SUB-ASSY, HEATER WATER

main87208-60290iFZJ80..EFI199208-199305

main87208-60291iFZJ80..SOB..EFI;FZJ80..(ARL,GEN)..EFI;FZJ80..LUB..GX..GCC..EFI;FZJ80..5F..LUB..GCC..EFI199501-199711

main87209-60130iFJ80199001-199208

87209HOSE SUB-ASSY, WATER

main87209-60150iHDJ80,HZJ80..ARL,GEN199208-199501

main87209-60160iFJ80..ARL,GEN199001-199208

main87209-60290iFZJ80..ARL,GEN199208-199801

main87209-60360iHDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)199501-199801

87209BHOSE SUB-ASSY, WATER, B

main87209-60140iFJ80..VX199201-199208

main87209-60260iFJ80,HDJ80,HZJ80..ARL,GEN199001-199201

main87209-60300iHDJ80..RHD;HDJ80..4FC..GEN;FZJ80,HZJ80..ARL,GEN199201-199208

main87209-60301iFZJ80..ARL,GEN199501-199801

main87209-60370iHDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)199501-199801

87209CHOSE SUB-ASSY, WATER, C

main87209-60120iFJ80..VX;HDJ80..RHD;HDJ80..4FC..GEN;FZJ80,HZJ80..ARL,GEN199201-199208

main87209-60270iFJ80,HDJ80,HZJ80..ARL,GEN199001-199201

main87209-60440iFZJ80,HDJ80,HZJ80..ARL,GEN199208-199401

main87209-60441iHDJ80..ARL;HDJ80..LHD;FZJ80..ARL,GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(ARL,GEN)199401-199801

87240VALVE ASSY, HEATER WATER

main87240-60060iFJ80..RHD199001-199208

main87240-60070iFJ80..LHD199001-199201

main87240-60080iHDJ80,HZJ80..RHD199001-199201

main87240-60090iHDJ80,HZJ80..LHD199001-199208

main87240-60130iFZJ80,HDJ80,HZJ80..RHD199201-199208

main87240-60140iFZJ80..LHD199201-199208

main87240-60160iHZJ80..RHD..GX;HZJ80..STD..ARL;FZJ80,HDJ80..RHD199501-200103

main87240-60170iFZJ80,HDJ80,HZJ80..LHD199501

87245BHOSE, HEATER WATER, INLET B

main87245-60100iFJ80199001-199208

main87245-60110iHDJ80,HZJ80199001-199201

main87245-60300iFZJ80199201-199208

main87245-60320iHZJ80..RHD..STD..GEN199208-199801

main87245-60480iFZJ80..EFI199208

87246AHOSE, HEATER WATER, OUTLET A

main87245-60090iHDJ80..RHD..5F..VX199001-199208

main87245-60120iHZJ80;HDJ80..4FC;HDJ80..5F..GX;HDJ80..LHD..5F199208-199501

main87245-60130iFJ80199001-199208

main87245-60310iFZJ80199201-199208

main87245-60350iFZJ80..LUB..GEN;FZJ80..SOB..GX..GEN; FZJ80..SOB..STD..GEN199201-199208

W(HEATER); W(REAR HEATER)

main87245-60600iHZJ80..STD..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX199501-200103

main87245-60610iHDJ80..TD4;HDJ80..LHD;HDJ80..RHD..5F..TD2;HZJ80..5F..(ARL,GEN)199501-199801

W(REAR HEATER)

87248APIPE, HEATER WATER INLET, A

main87208-60170iFZJ80..GCC;FZJ80..LUB..(STD,VX)..GEN; FZJ80..GX..GEN;FZJ80..SOB..STD..GEN199201-199208

REAR

main87208-60180iFZJ80..LUB..GEN;FZJ80..SOB..GX..GEN; FZJ80..SOB..STD..GEN199201-199208

W(HEATER); W(REAR HEATER)

main87208-60370iHDJ80,HZJ80..ARL,GEN199001-199208

W(REAR HEATER)

main87208-60380iHZJ80..4F199001-199201

REAR

main87209-60590iFJ80199001-199208

W(REAR HEATER)

main87245-60890iFJ80199201-199208

REAR

main87248-60480iHZJ80;HDJ80..GEN199208-199501

REAR

8712460070CLAMP, HEATER

main87124-60070

9011906100

main90119-06100

9011908197

main90119-08197

9017906161

main90179-06161

9033916001

main90339-16001

9046722003

main90467-22003

9048001420

main90480-01420

9048031007

main90480-31007

9165140814

main91651-40814

9611210250

main96112-10250

18 parts on this diagram · 6 diagrams in section
