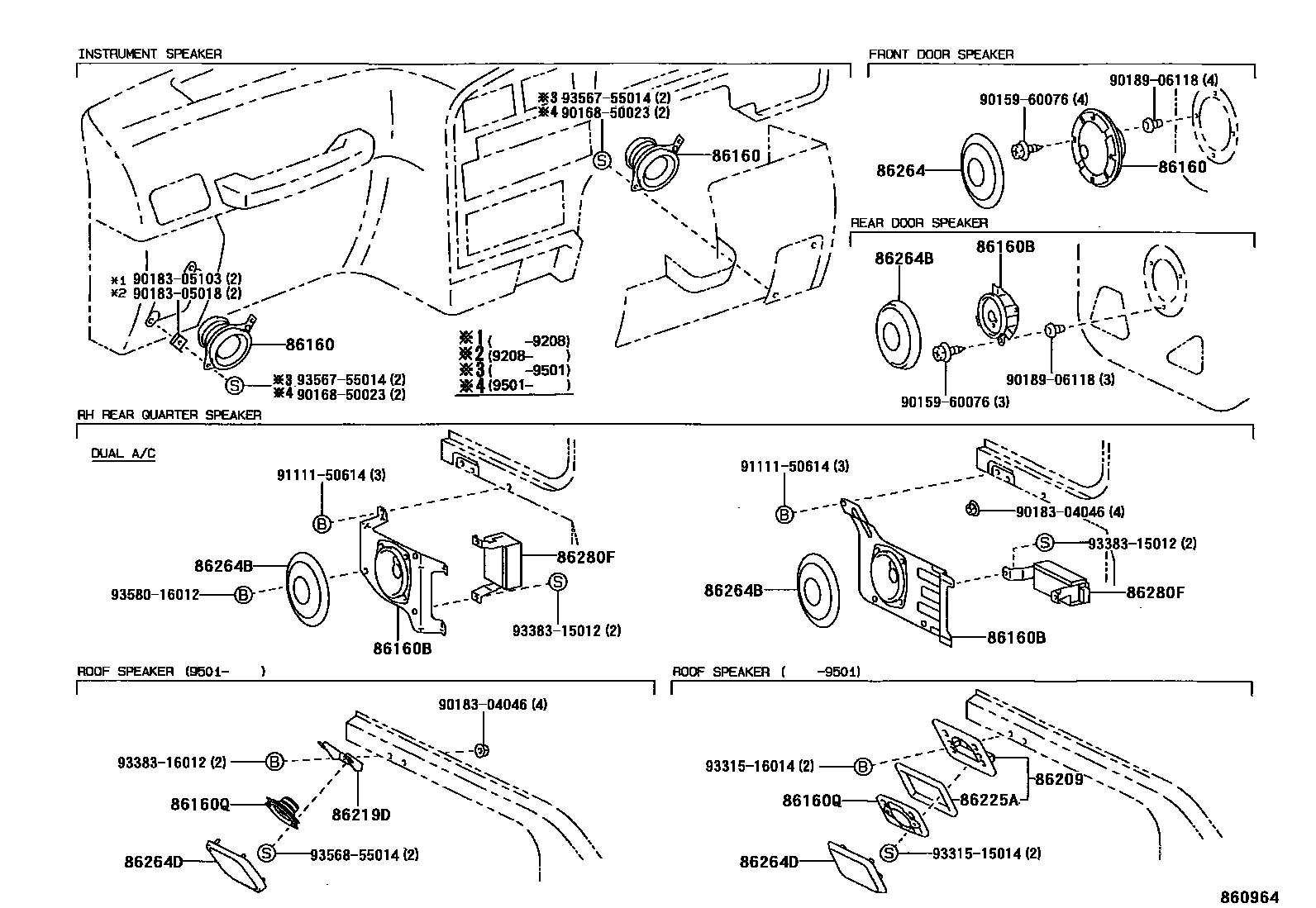

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-16130iFJ80..(GX,STD)..ARL;HDJ80,HZJ80..(GX,STD)..(ARL,GCC); HZJ80..GEN;FJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2); HZJ80;HDJ80..GEN;FJ80..STD..GCC;FJ80..(ARL,GEN)..CBR;FJ80,HDJ80..GX..(EFI,TD2)199001-199003

5 SPEAKER SPEC,INSTRUMENT PANEL; INSTRUMENT PANEL

main86160-60070×2iFZJ80,HDJ80..VX..ARL; FZJ80,HZJ80..VX..GCC199308-199405

9 SPEAKER,INSTRUMENT PANEL; INSTRUMENT PANEL

main86160-60080×2iFZJ80,HDJ80..VX..ARL; FZJ80,HZJ80..VX..GCC199308-199405

9 SPEAKER,FRONT DOOR; FRONT DOOR

86160BSPEAKER ASSY, REAR

main86160-60090×2iHDJ80..4FC;FZJ80..5F..VX;FZJ80..STD..EFI199909

REAR DOOR

main86160-60100iFZJ80,HDJ80,HZJ80..GX,VX199208-199508

REAR QUARTER PANEL

main86160-60110iFZJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GCC)199508-199801

W(DUAL AIR CONDITIONER),REAR QUARTER PANEL

86160QSPEAKER ASSY, ROOF

main86160-60120×2iFZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199208-199801

86209BRACKET SUB-ASSY, SPEAKER

main86209-60010×2iFZJ80..VX..GCC;FJ80,HDJ80,HZJ80..VX..(ARL,GCC)..(DSL,EFI,TD2)199001-199208

86219DBRACKET, SPEAKER, REAR NO.1

main86219-60020×2iFZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199501-199801

86225ACOVER, SPEAKER

main86225-60010×2iFZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199208-199501

86264GRILLE, SPEAKER, FRONT

main86269-60020-03×2iFJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199001-199208

BLUISH GRAY,TRIM1#

main86269-60020-06×2iFJ80,FZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199001-199208

SABLE,TRIM4#

main86269-60060-B0×2iFZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199501-199801

BLUEISH GRAY,TRIM1#

main86269-60060-E0×2iFZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199501-199801

OAK,TRIM4#

86264BGRILLE, SPEAKER, REAR

main86269-60010-03×2iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

BLUISH GRAY,TRIM1#,REAR DOOR

main86269-60010-06×2iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

SABLE,TRIM4#,REAR DOOR

main86269-60020-03iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

BLUISH GRAY,TRIM1#,REAR QUARTER PANEL

main86269-60020-06iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

SABLE,TRIM4#,REAR QUARTER PANEL

main86269-60050-B0×2iFZJ80,HDJ80..GX,VX;HZJ80..5F..(GX,VX)199501-199909

BLUEISH GRAY,TRIM1#,REAR DOOR

main86269-60050-E0×2iFZJ80..5F..STD..EFI; FZJ80..5F..VX;FZJ80..4FC..STD199909

OAK,TRIM4#,REAR DOOR; OAK,TRIM41,REAR DOOR

main86269-60060-B0iHDJ80..4FC;FZJ80..5F..STD..EFI199909

BLUEISH GRAY,TRIM1#,REAR QUARTER PANEL

main86269-60060-E0iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199501-199901

OAK,TRIM4#,REAR QUARTER PANEL

86264DGRILLE, SPEAKER, ROOF

main86269-60030-03×2iFZJ80..VX..GCC;FJ80,HDJ80,HZJ80..VX..(ARL,GCC)..(DSL,EFI,TD2)199001-199208

LIGHT GRAY,TRIM1#

main86269-60030-06×2iFZJ80..VX..GCC;FJ80,HDJ80,HZJ80..VX..(ARL,GCC)..(DSL,EFI,TD2)199001-199208

LIGHT SABLE,TRIM4#

main86269-60030-42×2iFZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199208-199501

SABLE,TRIM4#

main86269-60030-B6×2iFZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199208-199501

BLUEISH GRAY,TRIM1#

main86269-60040-B0×2iFZJ80,HDJ80,HZJ80..VX..(ARL,GCC)199501-199801

LIGHT GRAY,TRIM1#,4#

86280FAMPLIFIER ASSY, STEREO COMPONENT

main86280-60010iHDJ80..4FC;FZJ80..5F..VX;FZJ80..STD..EFI199909

9015960076

main90159-60076

9016850023

main90168-50023

9018304046

main90183-04046

9018305018

main90183-05018

9018305103

main90183-05103

9018906118

main90189-06118

9111150614

main91111-50614

9331515014

main93315-15014

9331516014

main93315-16014

9338315012

main93383-15012

9338316012

main93383-16012

9356755014

main93567-55014

9356855014

main93568-55014

9358016012

main93580-16012

24 parts on this diagram · 1 diagram in section
