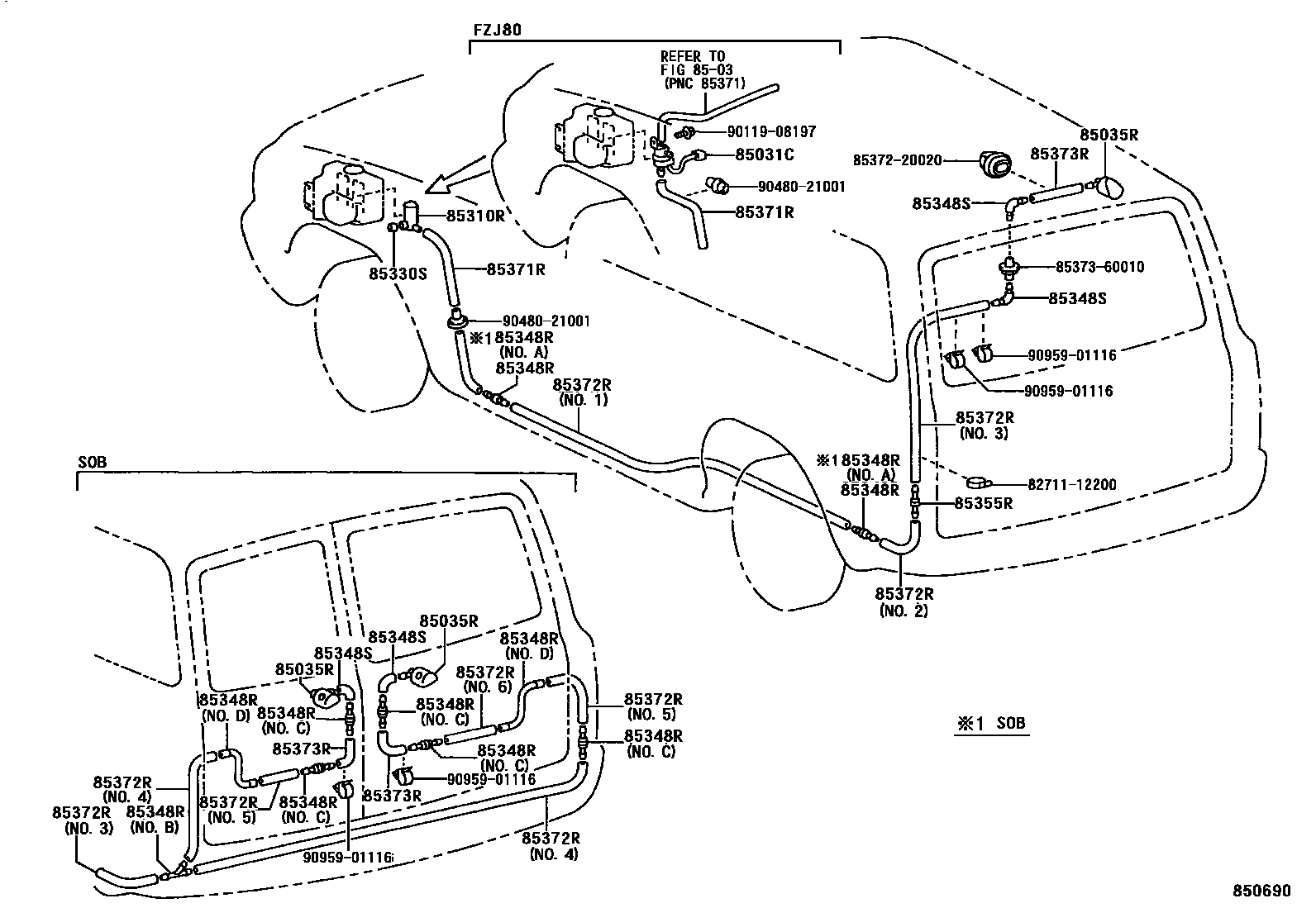

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031CVALVE SUB-ASSY, WASHER

main85321-60050iFZJ80199201-199208

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199208

main85391-60020iFJ80,FZJ80,HZJ80..SOB199001-199208

RH

main85392-60010iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDITION(PHILIPPINES)

85310RMOTOR ASSY, REAR WASHER

main85340-60030iFJ80,HDJ80,HZJ80199001-199208

main85340-60031iHDJ80,HZJ80199208-200103

85330SBUSH, REAR WASHER JAR

main90099-32089iFJ80,HDJ80,HZJ80199001-199208

85348RJOINT, REAR WASHER HOSE, NO.1

main85334-22470×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

NO.A

main85348-12250iFZJ80,HDJ80,HZJ80..SOB199208-200109

NO.B(3WAY)

main85349-89122×5iFZJ80,HDJ80,HZJ80..SOB199208-200109

NO.C

main85375-60110×2iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDITION(PHILIPPINES),NO.D

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481×2iFJ80,FZJ80,HZJ80..SOB199001-199208

main85355-20200×2iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199208

85355RVALVE, REAR WASHER HOSE

main85031-30010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main85031-90A00iFZJ80,HDJ80,HZJ80199208

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33029iHDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;HDJ80,HZJ80..LUB..ARL; HZJ80..LHD..LUB..GX199501-199801

L=1000(*H,L=900); L=1000(*H,L=900),COLD SPEC & W(*RWD)

main90099-33080iFZJ80199201-199208

L=1450(*H,L=600); L=690

main90446-07001iHDJ80;FZJ80..5F;FZJ80..4FC..(GX,VX)199208

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iFZJ80..SOB..GEN;FZJ80..STD..GCC199310-200109

L=690

main90099-33299iFZJ80,HZJ80..SOB199208-199308

L=1000(*H,L=100),NO.3

main90099-33363iFJ80,HZJ80..SOB199001-199010

L=600,NO.5,LH

main90099-33683iFJ80,FZJ80,HDJ80,HZJ80199001-199208

L=3350,NO.1

main90446-06006iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199208

L=2000(*H,L=1600),NO.3

main90446-06013iFJ80,FZJ80,HDJ80,HZJ80; FJ80,FZJ80,HZJ80..SOB199001-199208

L=1000(*H,L=100),NO.2; L=1000(*H,L=240),NO.4,LH,NO.5,RH

main90446-06292iFJ80,HZJ80..SOB199001-199208

L=3550(*H,L=2090),NO.4,RH

main90446-07001iFJ80,FZJ80,HZJ80..SOB199010-199208

L=1800(*H,L=600),NO.5,LH,NO.6,RH

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iFZJ80,HDJ80,HZJ80..LUB199208

L=1000(*H,L=210)

main90446-06013iFZJ80,HZJ80..SOB199208-199501

L=1000(*H,L=280),LH,RH

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537360010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-60010

9011908197

main90119-08197

9048021001

main90480-21001

9095901116

main90959-01116

17 parts on this diagram · 1 diagram in section
