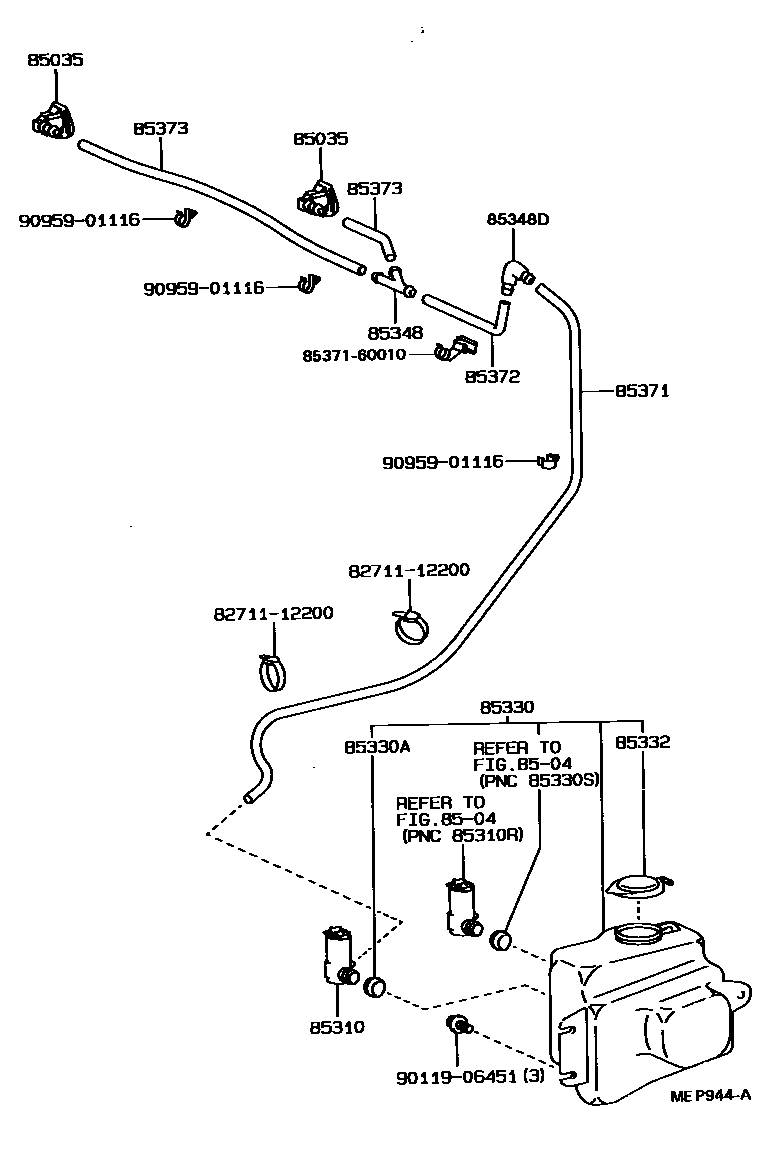

WINDSHIELD WASHER

0001 1 0002 1W(HEADLAMP CLEANER) 0003 1 0004 1 0005 1

85035NOZZLE SUB-ASSY, WASHER

main85381-30020-C1×2iFZJ80,HDJ80,HZJ80200010

BLACK

main85381-60010×2iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main85382-60010×2iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-16050iFJ80,HDJ80,HZJ80199001-199208

main85330-50020iFZJ80199208-199605

main85330-60130iFZJ80199605

main85330-60140iHDJ80,HZJ80199605-200103

85330JAR ASSY, WINDSHIELD WASHER

main85315-60110iFJ80,HDJ80,HZJ80..GX,STD199001-199208

main85315-60111iHZJ80..5F..(GX,STD)..(GCC,GEN)199605-199909

main85315-60120iFZJ80..VX..ARL199208-199605

main85315-60121iFZJ80..VX..ARL199605-199801

main85315-60140iFJ80,HDJ80..VX..ARL199001-199208

NO.1

main85315-60143iHDJ80..VX..TD4199605-199801

NO.1

main85325-60010iHDJ80,HZJ80..(GX,STD)..ARL;HDJ80,HZJ80..VX..(DSL,TD2); HZJ80..(GX,STD)..(GCC,GEN)199501-199605

W(REAR WINDOW WIPER)

main85325-60012iHZJ80..4FC;HDJ80,HZJ80..VX..(DSL,TD2);HDJ80,HZJ80..(GX,STD)..ARL; HZJ80..5F..(GX,STD)..(GCC,GEN)199605-200103

W(REAR WINDOW WIPER)

main85325-60060iFZJ80..5F;FZJ80..4FC..GX;FZJ80..LHD..4FC..VX199208-199605

main85325-60061iFZJ80..GCC,GEN;FZJ80..GX..ARL199605

main85351-60050iFJ80,HDJ80..VX..ARL199001-199208

NO.2

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iFZJ80,HDJ80,HZJ80199208

85332CAP, WINDSHIELD WASHER JAR

main85316-34040iFZJ80,HDJ80,HZJ80199310-199605

main85316-60111iHDJ80,HZJ80199605-200103

main85332-12660iFZJ80,HDJ80,HZJ80199208-199310

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iFZJ80..LHD..EFI199305-199501

NO.1

main85348-14390iFZJ80199501-199909

3WAY

main85375-10260iFZJ80..LHD199201-199208

NO.2

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iFJ80,FZJ80,HDJ80,HZJ80199001-199208

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iFZJ80..LHD199201-199208

L=1450(*H,L=280)

main90099-33382iHDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;HDJ80,HZJ80..LUB..ARL; HZJ80..LHD..LUB..GX199501-199801

*H,L=1100,COLD AREA SPEC; *H,L=1100,COLD SPEC

main90099-33790iFZJ80..RHD199201-199208

L=2600

main90099-33822iFZJ80..RHD199208-199801

L=2750

main90446-06006iHDJ80,HZJ80199208-200103

*H,L=1100

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075iFZJ80..LHD;FZJ80..RHD..(GX,STD); FZJ80..RHD199201-199208

L=1100(*H,L=100); L=1100(*H,L=100),NO.2

main90099-33080iFZJ80..4FC..STD; FZJ80..VX199909

L=1450(*H,L=200),COLD AREA SPEC; L=1450(*H,L=716)

main90446-07001iHDJ80,HZJ80;FZJ80..4FC..ARL;FZJ80..STD..EFI;FZJ80..5F..(GX,VX)199305-199501

L=1800(*H,L=200)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iFZJ80..4FC..STD199909

L=1450(*H,L=330),LH,RH

main90446-06013iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..STD..EFI199208-199305

L=1000(*H,L=620),LH,RH

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8537160010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-60010

9011906451

main90119-06451

9095901116

main90959-01116

15 parts on this diagram · 5 diagrams in section
