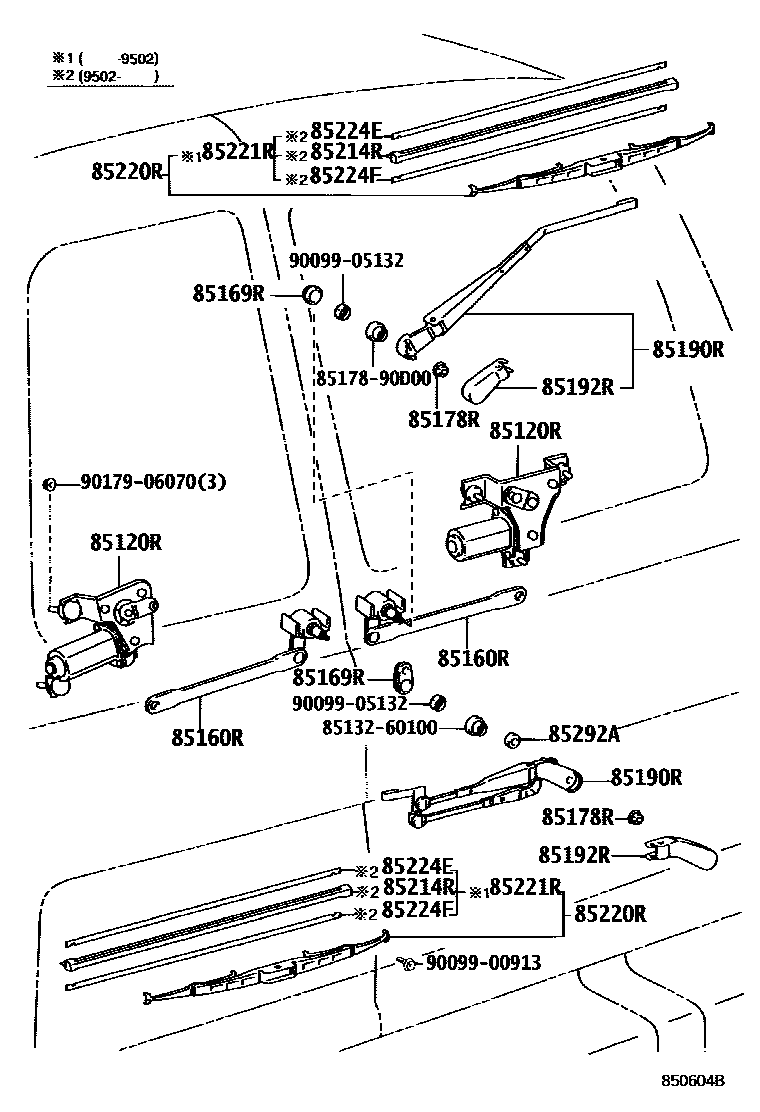

REAR WIPER

0001 1 0002 1

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85080-60140iFJ80,FZJ80,HZJ80..SOB199001-199208

LH

main85080-60141iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDIT ION(PHILIPPINES)

main85080-60150iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199208

main85080-60151iFZJ80,HDJ80,HZJ80..LUB199208-200612

main85080-60160iFJ80,FZJ80,HZJ80..SOB199001-199208

RH

main85080-60161iHDJ80..LHD..5F199510-199511

PHILIPPINES,RH

85160RLINK ASSY, REAR WIPER

main85170-60060iFJ80,FZJ80,HZJ80..SOB199001-199208

LH

main85170-60070iFZJ80,HDJ80,HZJ80..LUB199208-200612

main85170-60080iHDJ80..LHD..5F199510-199511

PHILIPPINES,RH

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-60100iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDIT ION(PHILIPPINES)

main85179-16150iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199208

main85179-90P80iFJ80,FZJ80,HZJ80..SOB199001-199208

RH

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06070iFJ80,FZJ80,HDJ80,HZJ80..LUB; FJ80,FZJ80,HZJ80..SOB199001-199208

85190RARM ASSY, REAR WIPER

main85241-60010iFJ80,FZJ80,HDJ80,HZJ80..LUB; FJ80,FZJ80,HZJ80..SOB199001-199208

RH

main85241-60011iFZJ80,HDJ80,HZJ80..LUB199208-199705

main85241-60012iFZJ80,HDJ80,HZJ80..LUB199705-200612

main85241-60020iFJ80,FZJ80,HZJ80..SOB199001-199208

LH

main85241-60021iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDIT ION(PHILIPPINES)

main85241-60040iFZJ80,HDJ80,HZJ80..SOB199208-200109

RH

85192RCOVER, REAR WIPER ARM

main85192-13060iFJ80,FZJ80,HDJ80,HZJ80..LUB; FJ80,FZJ80,HZJ80..SOB199001-199208

RH

main85192-14010iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDIT ION(PHILIPPINES)

main85192-28020iFJ80,FZJ80,HZJ80..SOB199001-199208

LH

main85195-95J01iFZJ80,HDJ80,HZJ80..SOB199208-200109

RH

85214RRUBBER, REAR WIPER

main85214-20340iFZJ80,HDJ80,HZJ80..LUB199502

main85214-60050×2iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDIT ION(PHILIPPINES)

85220RBLADE ASSY, REAR WIPER

main85242-36010iFZJ80,HDJ80,HZJ80..LUB199208-199705

main85242-60010iFJ80,FZJ80,HZJ80..SOB199001-199208

RH

main85242-60011iFZJ80,HDJ80,HZJ80..SOB199208-200109

RH

main85242-60020iFJ80,FZJ80,HZJ80..SOB199001-199208

LH

main85242-60021iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDIT ION(PHILIPPINES)

main85242-60030iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199208

main85242-60060iFZJ80,HDJ80,HZJ80..LUB199705-200612

85221RBLADE, REAR WIPER

main85221-10060iFJ80,FZJ80,HDJ80,HZJ80..LUB199001-199208

main85221-13010iFJ80,FZJ80,HZJ80..SOB199001-199208

LH

main85221-16070iFJ80,FZJ80,HZJ80..SOB199001-199208

RH

main85243-36010iFZJ80,HDJ80,HZJ80..LUB199208-199502

main85243-60020×2iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDIT ION(PHILIPPINES)

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-60070iFZJ80,HDJ80,HZJ80..LUB199502

main85224-60080×4iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDIT ION(PHILIPPINES)

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-60070iFZJ80,HDJ80,HZJ80..LUB199502

main85224-60080×2iFZJ80,HDJ80,HZJ80..SOB199502-200109

85292ACAP, REAR WIPER ARM HEAD

main85292-60010iFJ80,FZJ80,HZJ80..SOB199001-199208

8513260100COVER, REAR WIPER SHAFT

main85132-60100

8517890D00NUT (FOR FRONT WIPER ARM SETTING)

main85178-90D00

9009900913

main90099-00913

9009905132

main90099-05132

9017906070

main90179-06070

17 parts on this diagram · 2 diagrams in section
