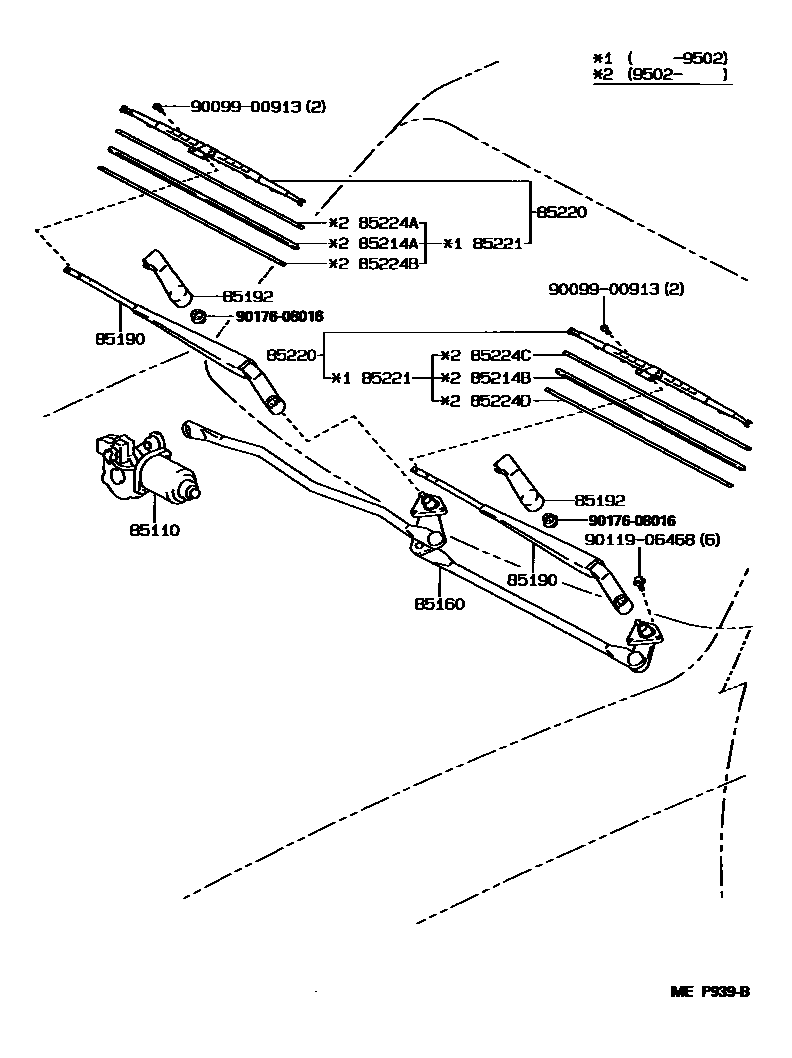

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-60100iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main85110-60101iFZJ80,HDJ80,HZJ80..RHD199208-200103

main85110-60110iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main85110-60111iFZJ80,HDJ80,HZJ80..LHD199208

85160LINK ASSY, WINDSHIELD WIPER

main85150-60100iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main85150-60101iFZJ80,HDJ80,HZJ80..LHD199208

main85150-60120iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main85150-60121iFZJ80,HDJ80,HZJ80..RHD199208-200103

85190ARM ASSY, WINDSHIELD WIPER

main85211-60010×2iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main85211-60011×2iFZJ80,HDJ80,HZJ80..RHD199208-200103

main85221-60010×2iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main85221-60011×2iFZJ80,HDJ80,HZJ80..LHD199208-199701

main85221-60012×2iFZJ80,HDJ80,HZJ80..LHD199701

85192COVER, WINDSHIELD WIPER ARM

main85261-90K01×2iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main85261-90K02×2iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main85292-60020×2iFZJ80,HDJ80,HZJ80199208

85214ARUBBER, WIPER, RH

main85214-20320iFZJ80,HDJ80,HZJ80199502

85214BRUBBER, WIPER, LH

main85214-20320iFZJ80,HDJ80,HZJ80199502

85220BLADE ASSY, WINDSHIELD WIPER

main85212-60050iFZJ80,HDJ80,HZJ80..LHD199208-199701

RH

main85212-60051iFZJ80,HDJ80,HZJ80..LHD199701

RH

main85212-60060iFZJ80,HDJ80,HZJ80..RHD199208-200103

RH

main85220-16340×2iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main85220-16420×2iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main85222-60100iFZJ80,HDJ80,HZJ80..RHD199208-200103

LH

main85222-60120iFZJ80,HDJ80,HZJ80..LHD199208

LH

85221BLADE, WINDSHIELD WIPER

main85213-60030iFZJ80,HDJ80,HZJ80..LHD; FZJ80,HDJ80,HZJ80..RHD199208-199502

LH; RH

main85221-30100×2iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main85221-30120×2iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main85223-60060iFZJ80,HDJ80,HZJ80..LHD; FZJ80,HDJ80,HZJ80..RHD199208-199502

LH; RH

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-60050iFZJ80,HDJ80,HZJ80..LHD199502

main85224-60060iFZJ80,HDJ80,HZJ80..RHD199502-200103

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-60050iFZJ80,HDJ80,HZJ80..LHD199502

main85224-60060iFZJ80,HDJ80,HZJ80..RHD199502-200103

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-60050iFZJ80,HDJ80,HZJ80..RHD199502-200103

main85224-60060iFZJ80,HDJ80,HZJ80..LHD199502

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-60050iFZJ80,HDJ80,HZJ80..RHD199502-200103

main85224-60060iFZJ80,HDJ80,HZJ80..LHD199502

9009900913

main90099-00913

9011906468

main90119-06468

9017608016

main90176-08016

15 parts on this diagram · 1 diagram in section
