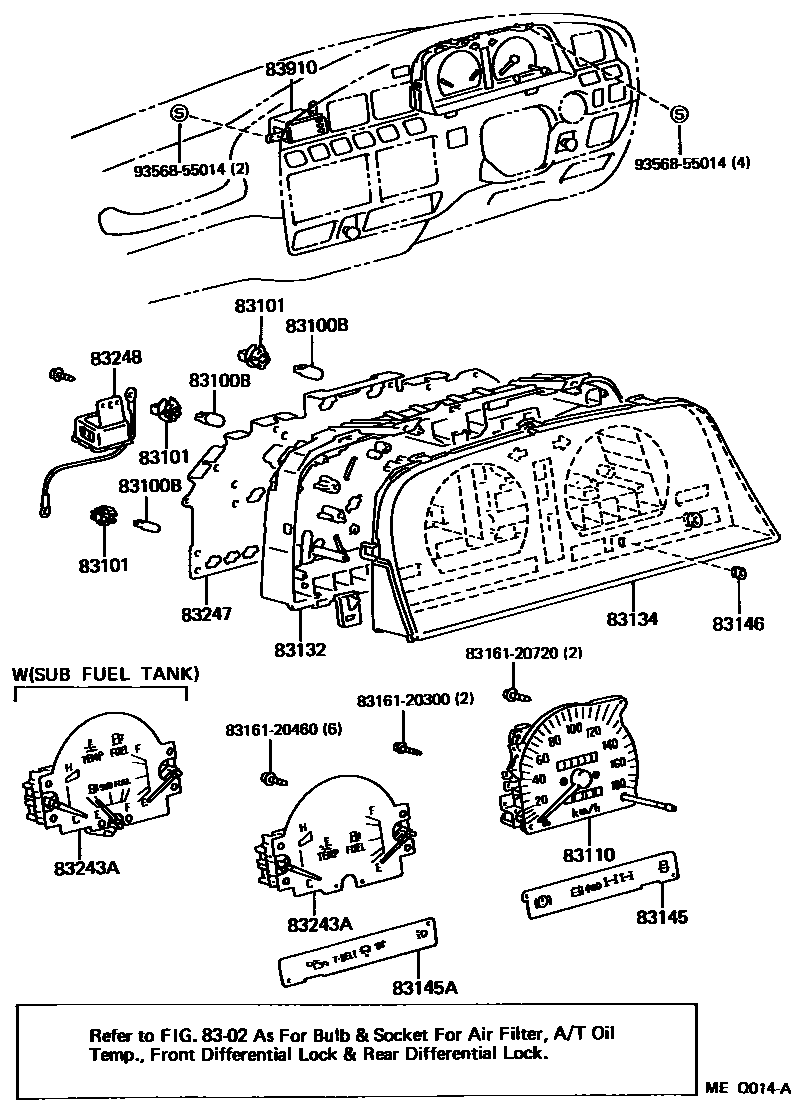

METER
8302INDICATOR
83100BBULB, COMBINATION METER, NO.1
12V 3.0W GREEN CAP
12V 2.0W; 12V 2.0W,W(SPEED METER + COMBIMETER)
main83120-60010iFZJ80..5F..GCC;HDJ80..LHD..4FC;FZJ80..4FC..VX..GCC;HZJ80..SOB..(GX,STD)..(ARL,GCC)199608-200612
14V 2.0W,W(SOCKET)
main83120-60020×9iHDJ80..4FC;FZJ80..4FC..GCC; HDJ80..5F;FZJ80..5F..GCC..EFI;HZJ80..(GX,STD)..(ARL,GCC); HZJ80..VX..GCC;HZJ80..RHD..5F..GEN;HZJ80..LHD..(GX,VX)..GEN;FZJ80..5F..(GX,STD)..(ARL,GCC)199608-200103
12V 1.4W,W(SOCKET)
main90010-06006×4iFZJ80..STD..EFI;FZJ80..GX..GCC..EFI;FZJ80,HDJ80,HZJ80..ARL;FZJ80..5F..VX..GEN..EFI;HDJ80,HZJ80..RHD..4FC..GEN;HDJ80,HZJ80..LHD..SOB..(GX,VX)..GEN199605-200612
12V3.4W,W(GREEN CAP)
main90010-06007×3iFZJ80..CBR;HZJ80..GCC;HZJ80..LHD..STD;FZJ80..VX..GCC..EFI;FZJ80..GX..GEN..EFI;HDJ80,HZJ80..LHD..LUB;HDJ80,HZJ80..RHD..5F..GEN199608-200109
12V 3.4W,W(SOCKET)
main90981-11018×6iFZJ80..4FC..ARL;FZJ80..5F..(GX,VX)..(ARL,GCC); FZJ80..GEN..CBR; FZJ80..SOB..EFI;HDJ80..4FC..GEN;HZJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LUB..GCC..EFI;HZJ80..SOB..(GX,STD)..(ARL,GCC); FZJ80..STD..GCC; HDJ80,HZJ80..5F..LUB..ARL; HDJ80..4FC..ARL; HDJ80..5F..GEN;FZJ80..GEN..EFI;HZJ80..LHD..SOB..(STD,VX)199208-199501
12V 1.2W W/O SOCKET
14V 3.4W
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14040×8iFZJ80..SOB..STD..GEN; FZJ80..STD..GCC; FZJ80..STD..GEN;FZJ80..4FC..ARL;FZJ80..5F..(GX,VX)..(ARL,GCC); HDJ80..4FC..ARL; HZJ80..STD..GEN; HZJ80..VX..GEN;HDJ80..4FC..GEN;FZJ80..SOB..EFI;HZJ80..GX..(GCC,GEN);FZJ80..LUB..GCC..EFI199208-199501
1.2W OR 1.4 BULB; 1.2W OR 1.4W BULB
3.4W BULB
83110SPEEDOMETER ASSY
W/O(TACHOMETER)
KM
W(TACHOMETER & READ SWITCH)
KM
KM
KM
MILE/KM
MILE/KM
MILE/KM
MILE/KM
MILE/KM
MILE/KM
MILE/KM
KM
W(DIFFERENTIAL LOCK); W(DIFFERENTIAL LOCK) OR W(POWER STEERING---PPS)
KM
KM
MILE/KM
KM
MILE/KM
W(SUB FUEL TANK)
MILE/KM
83132CASE, COMBINATION METER
W(SUB FUEL TANK); W(TACHOMETER)
main83132-60720iFZJ80,HZJ80..GX..GCC;HZJ80..RHD..STD..GEN; FZJ80,HZJ80..VX..GCC;FZJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN); FZJ80..LUB..STD;FZJ80,HZJ80..STD..ARL199208-199501
W(SPEED METER + CONBIMETER); W(TACHOMETER)
MALAYSIA OR INDONESIA CKD SPEC
83134COVER, COMBINATION METER, NO.1
main83134-60100iFZJ80..GX..GCC;FJ80,FZJ80..STD..(ARL,GEN); FZJ80..VX..GCC;FJ80,FZJ80..(GX,VX)..(ARL,GEN)199201-199208
W(TACHOMETER)
MALAYSIA OR INDONESIA CKD SPEC
W(SUB FUEL TANK)
W(SUB FUEL TANK)
83145LENS, METER, NO.1
W(TACHOMETER)
main83145-60120iFZJ80..GX..GCC;FZJ80..STD..GEN;HZJ80..RHD..STD..GEN; FZJ80..VX..GCC;FZJ80,HDJ80,HZJ80..(GX,VX)..GEN199201-199208
W(TACHOMETER)
W(TACHOMETER)
main83145-60560iFJ80,FZJ80..5F..GX..GCC; FJ80,FZJ80..STD..GCC; FJ80..RHD..GEN;HZJ80..GX..GCC;FJ80..LHD..STD..GEN;FZJ80,HZJ80..STD..GEN199001-199208
W(DIFFERENTIAL LOCK) OR W(*RWD) OR W(*PW) OR W(SUB FUEL TANK) OR (DUAL *AIC)---EXCL(*TAC); W(DIFFERENTIAL LOCK) OR W(*RWD) OR W(SUB FUEL TANK)---EXCL(TACHOMETER)
W(TACHOMETER)
W(SUB FUEL TANK)
W(SPEED METER + CONBIMETER)
W(SPEED METER + CONBIMETER)
W(SPEED METER + CONBIMETER); W(TACHOMETER)
W(SPEED METER + CONBIMETER)
main83832-60450iHDJ80..TD2;HZJ80..VX..GCC;HZJ80..5F..(GX,VX)..GEN; HZJ80..RHD..STD..GEN199608-200103
INDONESIA CKD SPEC
W(TACHOMETER)
W(SPEED METER + CONBIMETER)
83145ALENS, METER, NO.2
W(TACHOMETER)
W(TACHOMETER)
W(DIFFERENTIAL LOCK); W(DIFFERENTIAL LOCK) OR W(POWER STEERING---PPS)
W(TACHOMETER)
W(TACHOMETER)
W(LEAD SWITCH); W(SUB FUEL TANK & TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
W(SPEED METER + CONBIMETER)
W(TACHOMETER)
MALAYSIA CKD SPEC
W(SPEED METER + CONBIMETER)
W(SUB TANK)
W(SPEED METER + CONBIMETER)
W(SPEED METER + CONBIMETER)
W(TACHOMETER)
W(TACHOMETER)
W(SPEED METER + CONBIMETER)
W(TACHOMETER)
W(SPEED METER + CONBIMETER); W(SUB FUEL TANK & SPEED METER + COMBIMETER)
W(SPEED METER + CONBIMETER)
W(SPEED METER + CONBIMETER)
W(SPEED METER + CONBIMETER)
INDONESIA CKD SPEC
W(TACHOMETER)
83146GROMMET, METER GLASS
83243AGAUGE SUB-ASSY, FUEL RECEIVER
W(TACHOMETER)
W/O(TACHOMETER)
W/O(TACHOMETER---WATER TEMP. GAGE WIDE TYPE)
W(SUB FUEL TANK) & W/O(TACHOMETER); W(TACHOMETER) OR W/O(TACHOMETER)
W(SUB FUEL TANK); W(TACHOMETER)
W(SUB FUEL TANK & SPEED METER + COMBIMETER)
83247PLATE, METER CIRCUIT
W(TACHOMETER)
W(TACHOMETER)
W(SUB FUEL TANK)
W(SUB FUEL TANK)
W(SPEED METER + CONBIMETER)
W(SPEED METER + CONBIMETER)
main83149-60780iFZJ80..GX..GCC; FZJ80..LUB..STD; FZJ80..VX..GCC..CBR;FZJ80..(GX,VX)..GEN..CBR199208-199501
W(SPEED METER + CONBIMETER); W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
main83247-60220iFJ80,FZJ80..5F..SOB..GX..GCC; FJ80,FZJ80..LUB..GX..GCC; FJ80..4FC..GX..GCC;FJ80,FZJ80..VX..GCC199001-199208
W(TACHOMETER); W(TACHOMETER) OR W(TACHOMETER & SUB FUEL TANK)
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER) OR W/O(TACHOMETER)
W(SUB FUEL TANK)
W(DIFFERENTIAL LOCK) OR W(*RWD) OR W(*PW) OR W(DUAL *AIC)---EXCE(SUB FUEL TANK,TACHOMETER); W(DIFFERENTIAL LOCK) OR W(*RWD)---EXCE(SUB FUEL TANK,TACHOMETER)
W(SUB FUEL TANK)
W(SUB FUEL TANK)
main83247-6A120iFZJ80..5F..VX..GCC;FZJ80..(GX,VX)..GEN..CBR; FZJ80..GX..GCC; FZJ80..LUB..STD199501-199608
W(SPEED METER + CONBIMETER); W(TACHOMETER)
W(SPEED METER + CONBIMETER)
MALAYSIA OR INDONESIA CKD SPEC
INDONESIA CKD SPEC
83248CHIME, SPEED WARNING
83910CLOCK ASSY
main83910-60030iFJ80..(GX,STD)..GCC;FJ80,HDJ80..LHD..GEN;FZJ80,HZJ80..LHD..VX..GEN;FZJ80,HZJ80..LHD..(GX,STD)199001-199208
MULTIPLEX TYPE
MULTIPLEX TYPE
8316120300CASE, COMBINATION METER MIRROR, NO.1
main83161-20300
8316120460CASE, COMBINATION METER MIRROR, NO.1
main83161-20460
8316120720CASE, COMBINATION METER MIRROR, NO.1
main83161-20720
9356855014
main93568-55014
17 parts on this diagram · 9 diagrams in section
