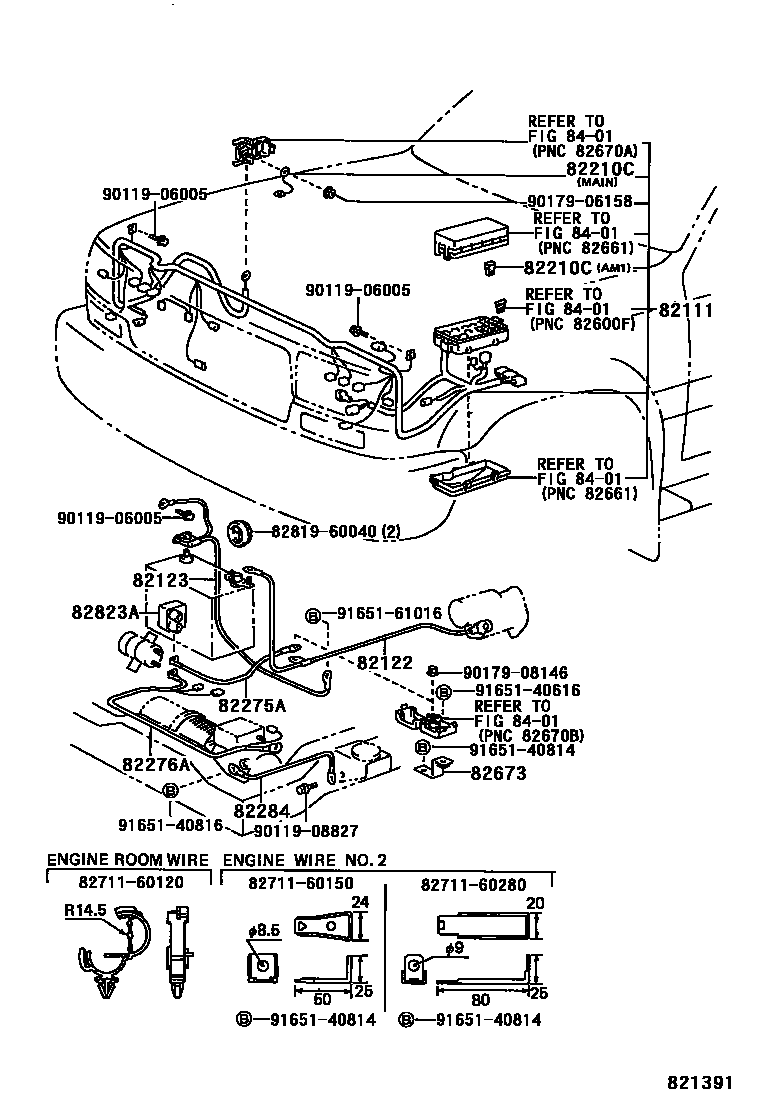

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(SPEAR WHEEL CARRIER---BACK DOOR)
W(SPEAR WHEEL CARRIER---BACK DOOR)
W(SPEAR WHEEL CARRIER---BACK DOOR)
SWING OUT BACK DOOR EDIT ION(PHILIPPINES)
SWING OUT BACK DOOR EDIT ION(PHILIPPINES)
W(12V 65A ALTERNATOR); W(12V 65A,80A ALTERNATOR); W(SPEAR WHEEL CARRIER---BACK DOOR)
W(12V 65A ALTERNATOR); W(12V 65A,80A ALTERNATOR); W(SPEAR WHEEL CARRIER---BACK DOOR)
W(12V 65A ALTERNATOR); W(12V 65A,80A ALTERNATOR); W(SPEAR WHEEL CARRIER---BACK DOOR)
W(SPEAR WHEEL CARRIER---BACK DOOR)
W(SPEAR WHEEL CARRIER---BACK DOOR)
W(SPEAR WHEEL CARRIER---BACK DOOR)
W(SPEAR WHEEL CARRIER---BACK DOOR)
W(12V 90A ALTERNATOR)
W(12V 90A ALTERNATOR)
SWING OUT BACK DOOR EDIT ION(PHILIPPINES); W(ELECTRIC WINCH) OR W(MANUAL AIR CONDITIONER)---EXCL(12V 65A ALTERNATOR)
main82111-60281iFZJ80..LHD..GX..CBR;FZJ80..LHD..VX..GEN..CBR; FZJ80..LHD..STD; FZJ80..VX..GCC..CBR199208-199608
SWING OUT BACK DOOR EDIT ION(PHILIPPINES); W(ELECTRIC WINCH) OR W(MANUAL AIR CONDITIONER)---EXCL(12V 65A ALTERNATOR)
W(ELECTRIC WINCH) OR W(MANUAL AIR CONDITIONER)---EXCL(12V 65A ALTERNATOR)
W(SPEAR WHEEL CARRIER---BACK DOOR)
COLD SPEC
82122WIRE, ENGINE, NO.2
COLD SPEC
W(ELECTRIC WINCH)
W(ELECTRIC WINCH)
W(ELECTRIC WINCH)
COLD SPEC
COLD SPEC
COLD SPEC
W(ELECTRIC WINCH)
W(ELECTRIC WINCH)
W(ELECTRIC WINCH)
82123WIRE, ENGINE, NO.3
COLD SPEC
COLD SPEC
COLD SPEC
COLD SPEC OR W(ELECTRICAL WINCH); W(ELECTRICAL WINCH)
W(ELECTRICAL WINCH)
82210CFUSIBLE LINK
L=110,MAIN,GLOW
60A,TERM.:FEMALE,YEL
GLOW RESISTER,E/G WIRE GLOW
50A,TERM.:FEMALE,RED
L=110,MAIN,GLOW,AM2
L=110,0.5 GREEN
MAIN,GLOW,HEAD,AM1
L=110,MAIN,GLOW
L=110,BLUE
82275ACABLE, BATTERY TO MAGNET SWITCH
COLD SPEC & W(ELECTRIC WINCH)
82276ACABLE, MAGNET SWITCH TO WINCH
82284WIRE, EARTH
COLD SPEC
82673BRACKET, JUNCTION BLOCK
82823ACAP, TERMINAL, NO.2
8401SWITCH & RELAY & COMPUTER
8271160120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60120
8271160150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60150
8271160280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60280
8281960040GROMMET, WIRING HARNESS
main82819-60040
9011906005
main90119-06005
9011908827
main90119-08827
9017906158
main90179-06158
9017908146
main90179-08146
9165140616
main91651-40616
9165140814
main91651-40814
9165140816
main91651-40816
9165161016
main91651-61016
22 parts on this diagram · 22 diagrams in section
