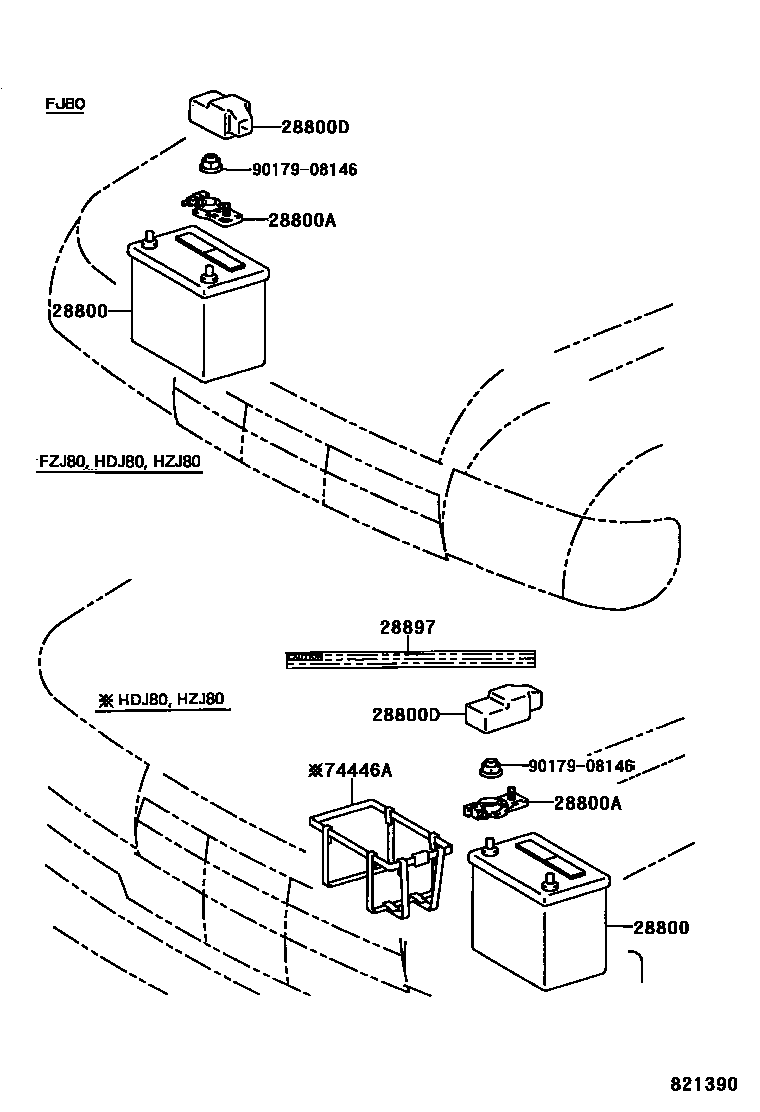

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i1HZ..HZJ80..LHD..LUB..GX199501-199801

55D23R

main28800-30082i3F..FJ80..GCC,GEN199001-199201

48D26R

main28800-42010i1H#..HDJ80,HZJ80..GCC,GEN199001-199009

75D31L

main28800-42020i1FZFE,1H#..FZJ80,HDJ80,HZJ80200001

75D31L,YUASA

main28800-42130i1H#..HDJ80,HZJ80..ARL199001-199101

75D31L

main28800-42141i1FZFE,1HDFT,1HZ..FZJ80,HDJ80,HZJ80..ARL199501-199801

75D31L

main28800-46012i3F..FJ80..GCC,GEN199009-199201

75D31R

main28800-54030i1FZF..FZJ80199811-200003

95D31L

main28800-54040i1HZ..HZJ80..LHD..LUB..GX199501-199801

95D31R

main28800-56040i1FZF..FZJ80199208-199603

48D26L

main28800-56090i1FZF..FZJ80200103-200109

95D31L,FURUKAWA

main28800-61030i3F#..FJ80..ARL199009-199208

75D31R

main28800-64010i1HZ..HZJ80..LHD..LUB..GX199501-199801

55D23L

main28800-64180i1FZF..FZJ80200003-200109

95D31L,YUASA

main28800-64182i1FZF..FZJ80200103-200109

95D31L,YUASA

28800ATERMINAL, BATTERY POSITIVE

main90982-05022i1FZF,3F#,1H#..FJ80,FZJ80,HDJ80,HZJ80199001-199208

main90982-05030×2i1FZFE..FZJ80..ARL,GCC;1FZFE..FZJ80..(GX,VX)..GEN;1FZFE..FZJ80..5F..STD..GEN;1FZF,1HD#,1HZ..FZJ80,HDJ80,HZJ80199208

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i3F#,1H#..FJ80,HDJ80,HZJ80199001-199011

main82821-60010i1FZF,3F#,1H#..FJ80,FZJ80,HDJ80,HZJ80199011-199208

28897PLATE, BATTERY CAUTION

main28897-17040i1HDFT..HDJ80199501-199801

74446ABAND, BATTERY

main74446-60010iHDJ80,HZJ80199009-199102

main74446-60011iHZJ80..LHD..LUB..GX199501-199801

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section
