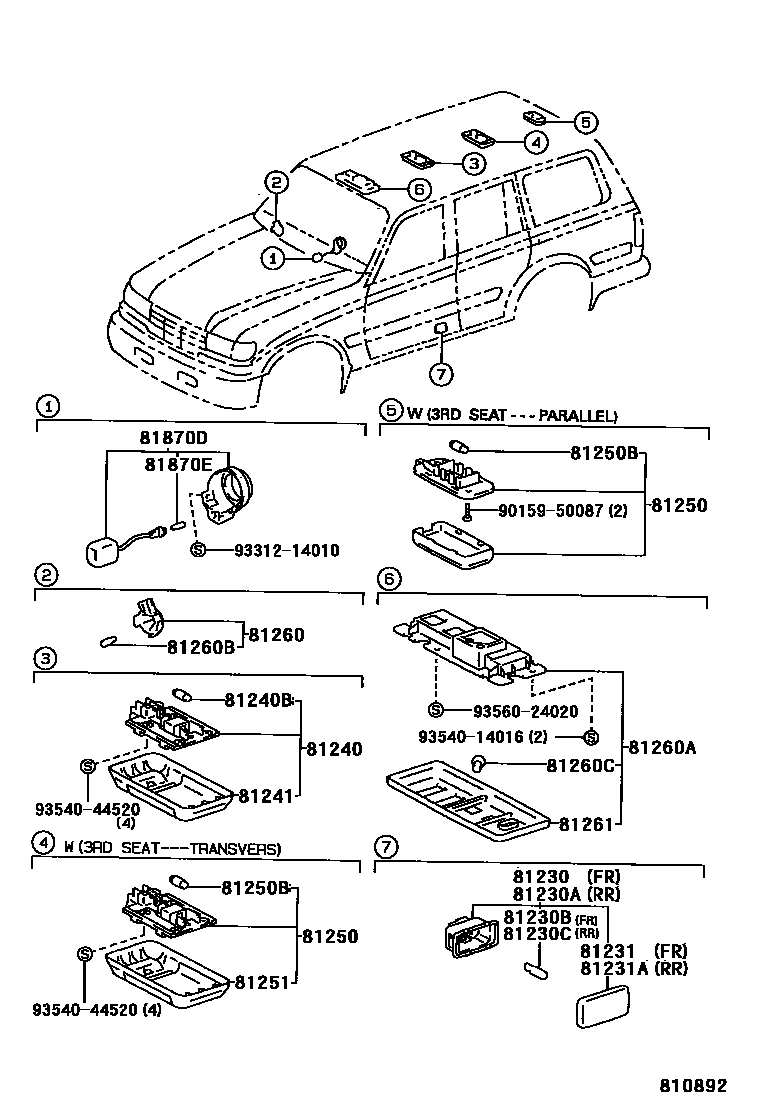

INTERIOR LAMP
81230LAMP ASSY, COURTESY
81230ALAMP ASSY, COURTESY, NO.2
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81230CBULB(FOR COURTESY LAMP NO.2)
12V 3.8W
81231LENS, COURTESY LAMP
81231ALENS, COURTESY LAMP, NO.2
81240LAMP ASSY, ROOM, NO.1
LIGHT GRAY,TRIM1#
GRAY,TRIM1#,4#
LIGHT SABLE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
main81240-32020-B6iHDJ80..LHD;FZJ80..GX..EFI;HZJ80..LHD..STD;HZJ80..5F..(GX,VX);FZJ80..4FC..VX..GEN;FZJ80..VX..GCC..EFI;FZJ80..RHD..(STD,VX);FZJ80,HZJ80..STD..(ARL,GCC);FZJ80,HDJ80..(GX,VX)..(CBR,TD4)199501-199909
W(3RD SEAT---TRANSVERS),LIGHT GRAY,TRIM1#,4#
main81240-60030-03iFJ80,FZJ80,HDJ80..LUB..VX..(ARL,GCC); FZJ80..GX;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,FZJ80..SOB..VX;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR;FZJ80,HZJ80..LHD..5F..SOB..STD..GEN199001-199208
GRAY,TRIM1#; W(3RD SEAT---TRANSVERS),GRAY,TRIM1#
main81240-60030-06iFJ80,FZJ80,HDJ80..LUB..VX..(ARL,GCC); FZJ80..GX;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,FZJ80..SOB..VX;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR;FZJ80,HZJ80..LHD..5F..SOB..STD..GEN199001-199208
LIGHT SABLE,TRIM4#; W(3RD SEAT---TRANSVERS),LIGHT SABLE,TRIM4#
main81240-95704-03iFJ80,FZJ80..LUB..VX..GCC; HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2)199001-199208
GRAY,TRIM1#; W(3RD SEAT---PARALEL),GRAY,TRIM1#
main81240-95704-16iFJ80,FZJ80..LUB..VX..GCC; HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2)199001-199208
LIGHT SABLE,TRIM4#; W(3RD SEAT---PARALEL),LIGHT SABLE,TRIM4#
main81240-95704-42iFZJ80..LUB..VX..GCC; HZJ80;FZJ80..SOB..VX;FZJ80,HDJ80..GX,STD;FZJ80,HDJ80..VX..GEN199208-199501
SABLE,TRIM4#; W(3RD SEAT---PARALEL),SABLE,TRIM4#
LIGHT GRAY,TRIM4#; VENEZUELA CKD SPEC,LIGHT GRAY,TRIM4#
81250BBULB, ROOM LAMP, NO.2
12V 10W
12V 10W
81251LENS, ROOM LAMP, NO.2
main81241-24020iFJ80,FZJ80,HDJ80..LUB..VX..(ARL,GCC); FZJ80..GX;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,FZJ80..SOB..VX;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR;FZJ80,HZJ80..LHD..5F..SOB..STD..GEN199001-199208
W(3RD SEAT---TRANSVERS)
main81241-95013iFZJ80..LUB..VX..GCC; HZJ80;FZJ80..SOB..VX;FZJ80,HDJ80..GX,STD;FZJ80,HDJ80..VX..GEN199208-199501
W(3RD SEAT---PARALEL)
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
LIGHT GRAY,TRIM1#,4#; W(MOON ROOF),LIGHT GRAY,TRIM1#,4#
LIGHT SABLE,TRIM4#; W(MOON ROOF),LIGHT SABLE,TRIM4#
main81260-60010-42iFZJ80..LUB..ARL;HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX); FZJ80..RHD..LUB..CBR199208-199501
SABLE,TRIM4#; W(MOON ROOF),SABLE,TRIM4#
main81260-60010-B6iFZJ80..4FC..GEN;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2); FZJ80..RHD..GX..CBR199501-199801
BLUEISH GRAY,TRIM1#,4#; W(MOON ROOF),BLUEISH GRAY,TRIM1#,4#
W(ACCESSORY METER),LIGHT GRAY,TRIM1#
LIGHT SABLE,TRIM4#
main81260-60020-42iFZJ80,HDJ80,HZJ80..LUB..ARL; FZJ80,HZJ80..STD..ARL; FZJ80..LHD..(GX,VX);HDJ80,HZJ80..(GX,VX)..(GCC,GEN)199208-199501
SABLE,TRIM4#; W(ACCESSORY METER OR GPS),SABLE,TRIM4#; W(ACCESSORY METER),SABLE,TRIM4#
BLUEISH GRAY,TRIM1#,4#; W(ACCESSORY METER OR GPS),BLUEISH GRAY,TRIM1#,4#
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 10W
81261LENS AND COVER, MAP LAMP
main81261-60010-03iFZJ80..4FC..GEN;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2); FZJ80..RHD..GX..CBR199501-199801
LIGHT GRAY,TRIM1#,4#; W(MOON ROOF),LIGHT GRAY,TRIM1#,4#
main81261-60010-06iHZJ80..GCC;FZJ80..LUB..ARL;HDJ80,HZJ80..LUB;FZJ80..LHD..(GX,VX); HZJ80..SOB..GX..GEN;FZJ80..RHD..LUB..CBR199208-199501
LIGHT SABLE,TRIM4#; W(MOON ROOF),LIGHT SABLE,TRIM4#
main81261-60020-03iFZJ80,HZJ80..STD..ARL; FZJ80..LUB..ARL; HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX)199208-199501
LIGHT GRAY,TRIM1#; W(ACCESSORY METER OR GPS),LIGHT GRAY,TRIM1#; W(ACCESSORY METER),LIGHT GRAY,TRIM1#
main81261-60020-06iFZJ80,HZJ80..STD..ARL; FZJ80..LUB..ARL; HDJ80,HZJ80..GX,VX;FZJ80..LHD..(GX,VX)199208-199501
LIGHT SABLE,TRIM4#; W(ACCESSORY METER OR GPS),LIGHT SABLE,TRIM4#; W(ACCESSORY METER),LIGHT SABLE,TRIM4#
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
9015950087
main90159-50087
9331214010
main93312-14010
9354014016
main93540-14016
9354044520
main93540-44520
9356024020
main93560-24020
24 parts on this diagram · 1 diagram in section
