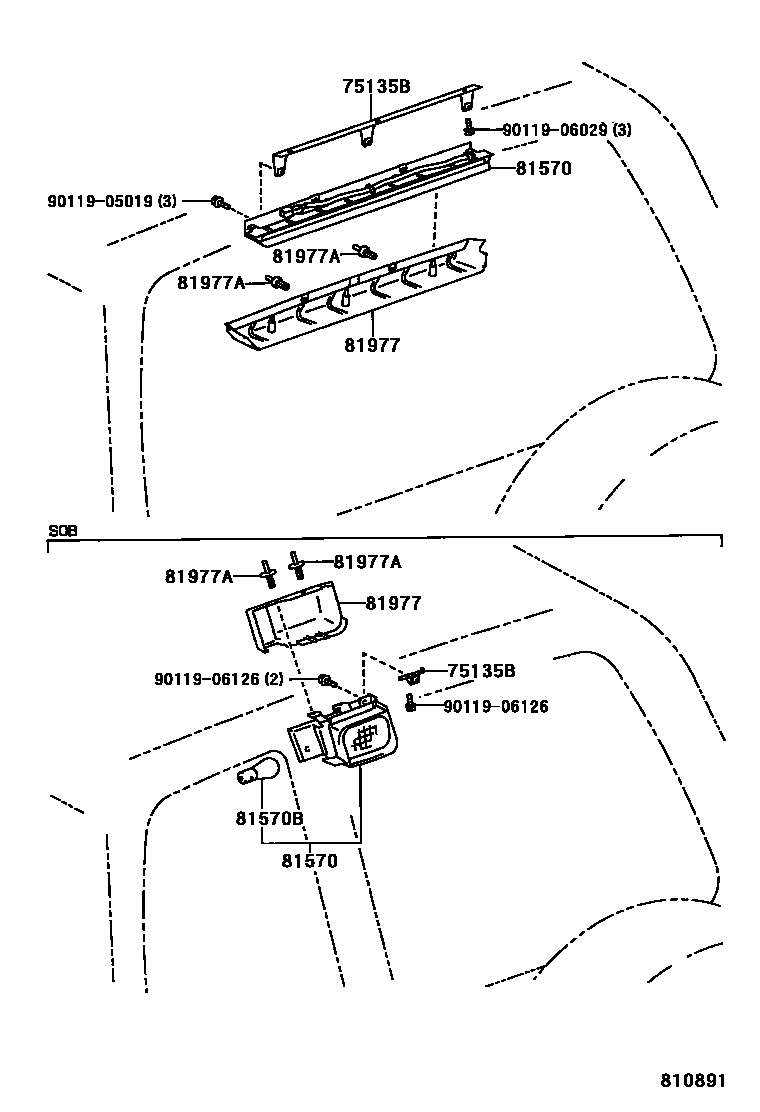

CENTER STOP LAMP

75135BBRACKET, CENTER STOP LAMP

main75135-60030iFZJ80,HDJ80,HZJ80..LUB199208-199909

main75135-60040iHDJ80..LHD..5F199510-199607

SWING OUT BACK DOOR EDITION(PHILIPPINES)

81570LAMP ASSY, CENTER STOP

main81570-60010iFZJ80,HDJ80,HZJ80..LUB199208-199501

main81570-60011iHDJ80199909-200103

main81570-60020iFZJ80,HZJ80..SOB199208-199501

main81570-60021iHZJ80..5F..SOB;FZJ80,HDJ80..SOB199501-199909

81570BBULB (FOR CENTER STOP LAMP)

main99132-11210iHZJ80..5F..SOB;FZJ80,HDJ80..SOB199208-199909

12V 21W

81977COVER, CENTER STOP LAMP

main81977-60010iFZJ80,HDJ80,HZJ80..LUB199208-199909

main81977-60020-B0iFZJ80,HZJ80..SOB199208-199501

LIGHT GRAY,TRIM1#

main81977-60020-E0iFZJ80,HZJ80..SOB199208-199501

SABLE,TRIM4#

main81977-60021-B0iFZJ80,HZJ80..SOB199901-199909

LIGHT GRAY,TRIM1#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-06141×2iHDJ80..LHD..5F199510-199511

PHILIPPINES

9011905019

main90119-05019

9011906029

main90119-06029

9011906126

main90119-06126

8 parts on this diagram · 1 diagram in section
