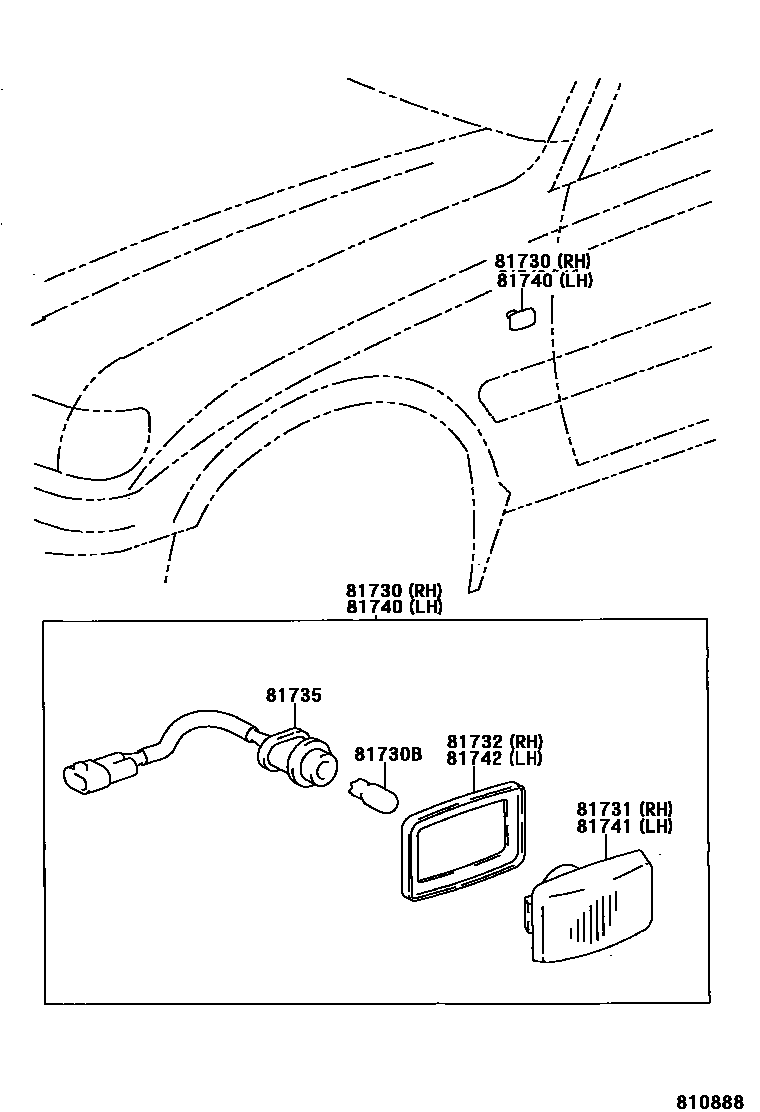

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-60060iFJ80,FZJ80,HDJ80,HZJ80199001-199207

main81730-60061iFJ80,FZJ80,HDJ80,HZJ80199207-199208

main81730-60111iFZJ80,HDJ80,HZJ80199208

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-17011iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main81731-60061iFZJ80,HDJ80,HZJ80199208

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-17010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-60060×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main81735-60110×2iFZJ80,HDJ80,HZJ80199208

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-60060iFJ80,FZJ80,HDJ80,HZJ80199001-199207

main81730-60061iFJ80,FZJ80,HDJ80,HZJ80199207-199208

main81730-60111iFZJ80,HDJ80,HZJ80199208

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-17011iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main81731-60061iFZJ80,HDJ80,HZJ80199208

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-17010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

8 parts on this diagram · 1 diagram in section
