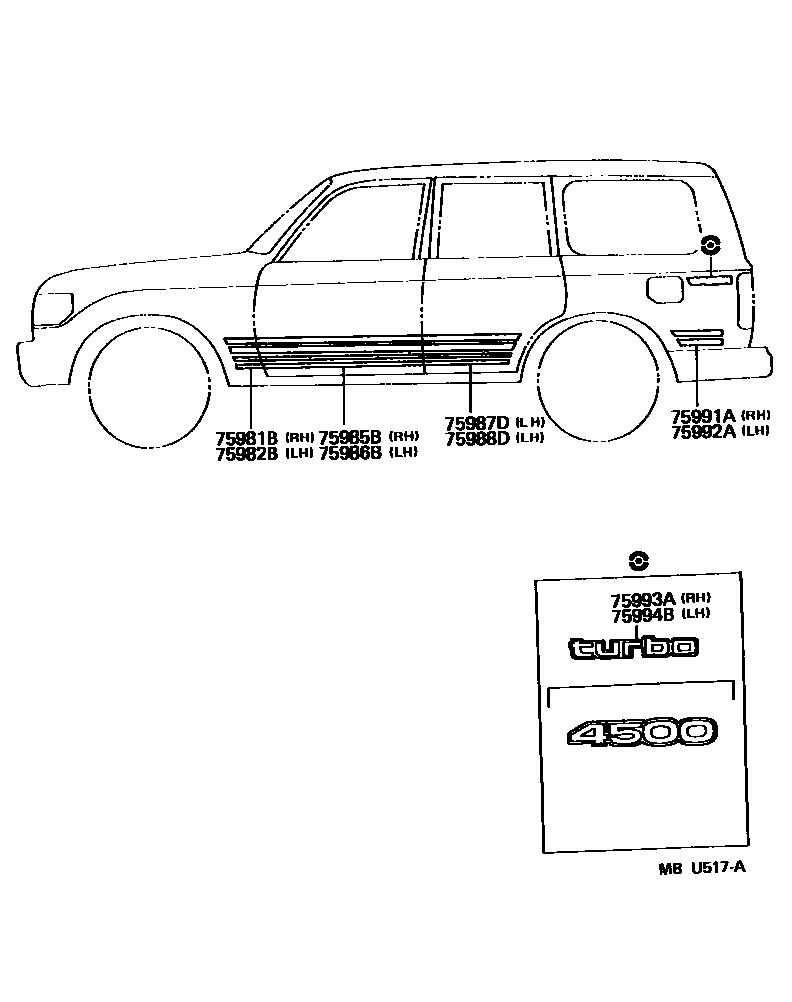

BODY STRIPE
75981BSTRIPE, FENDER, RH
main75981-60070iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199501-199801
TYPE A:REFER TO ILLUSTRATION, LIGHT SILVER
TYPE A:REFER TO ILLUSTRATION & LIGHT SILVER,W(OVER FENDER)
DARK SILVER
DARK SILVER
VX LIMITED
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
VX-R
VX-R
main75981-60320iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION
main75981-60330iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION & W(OVER FENNDER)
VX-R
LIMITED EDITION(G.C.C.)
LIMITED EDITION(G.C.C.)
GX-R
LIMITED EDITION(G.C.C)
75982BSTRIPE, FENDER, LH
TYPE A:REFER TO ILLUSTRATION,LIGHT SILVER
TYPE A:REFER TO ILLUSTRATION & LIGHT SILVER,W(OVER FENDER)
main75982-60090iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199501-199901
DARK SILVER
DARK SILVER
VX-R OR VX LIMITED
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
VX-R
VX-R
main75982-60320iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION
main75982-60330iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION & W(OVER FENNDER)
VX-R
LIMITED EDITION(G.C.C.)
LIMITED EDITION(G.C.C.)
GX-R
LIMITED EDITION(G.C.C)
75985BSTRIPE, FRONT DOOR, NO.3 RH
main75985-60090iFJ80,FZJ80;HDJ80..RHD;HZJ80..SOB..(STD,VX);HZJ80..GX..(ARL,GCC); HDJ80..LHD;HZJ80..(GX,VX)..GEN199001-199208
TYPE A:REFER TO ILLUSTRATION & LIGHT SILVER,W(OVER FENDER); TYPE A:REFER TO ILLUSTRATION, LIGHT SILVER
DARK SILVER
VX LIMITED
VX-R
VX-R
TYPE B:REFER TO ILLUSTRATION
VX-R
LIMITED EDITION(G.C.C.)
LIMITED EDITION(G.C.C.)
GX-R
LIMITED EDITION(G.C.C)
75986BSTRIPE, FRONT DOOR, NO.3 LH
main75986-60080iFJ80,FZJ80;HDJ80..RHD;HZJ80..SOB..(STD,VX);HZJ80..GX..(ARL,GCC); HDJ80..LHD;HZJ80..(GX,VX)..GEN199001-199208
TYPE A:REFER TO ILLUSTRATION & LIGHT SILVER,W(OVER FENDER); TYPE A:REFER TO ILLUSTRATION, LIGHT SILVER
DARK SILVER
VX LIMITED
VX-R
VX-R
TYPE B:REFER TO ILLUSTRATION
VX-R
LIMITED EDITION(G.C.C.)
LIMITED EDITION(G.C.C.)
GX-R
LIMITED EDITION(G.C.C)
75987DSTRIPE, REAR DOOR, OUTSIDE, RH
main75987-60060iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199501-199801
TYPE A:REFER TO ILLUSTRATION, LIGHT SILVER
TYPE A:REFER TO ILLUSTRATION & LIGHT SILVER,W(OVER FENDER)
main75987-60080iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199501-199901
DARK SILVER
DARK SILVER
VX-R OR VX LIMITED
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
VX-R
VX-R
main75987-60230iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION
main75987-60240iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION & W(OVER FENNDER)
VX-R
LIMITED EDITION(G.C.C.)
LIMITED EDITION(G.C.C.)
GX-R
LIMITED EDITION(G.C.C)
75988DSTRIPE, REAR DOOR OUTSIDE, LH
TYPE A:REFER TO ILLUSTRATION, LIGHT SILVER
main75988-60080iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199501-199801
TYPE A:REFER TO ILLUSTRATION & LIGHT SILVER,W(OVER FENDER)
main75988-60090iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199501-199901
DARK SILVER
DARK SILVER
VX-R OR VX LIMITED
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
VX-R
VX-R
main75988-60270iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION
main75988-60280iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION & W(OVER FENNDER)
VX-R
LIMITED EDITION(G.C.C.)
LIMITED EDITION(G.C.C.)
GX-R
LIMITED EDITION(G.C.C)
75991ASTRIPE, QUARTER, RH
main75991-60150iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199501-199801
TYPE A:REFER TO ILLUSTRATION, LIGHT SILVER
main75991-60160iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199501-199801
TYPE A:REFER TO ILLUSTRATION & LIGHT SILVER,W(OVER FENDER)
DARK SILVER
DARK SILVER,W(OVER FENDER)
VX LIMITED
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
VX-R
VX-R
main75991-60490iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION
main75991-60500iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION & W(OVER FENNDER)
VX-R
LIMITED EDITION(G.C.C.)
LIMITED EDITION(G.C.C.)
GX-R
LIMITED EDITION(G.C.C)
75992ASTRIPE, QUARTER, LH
TYPE A:REFER TO ILLUSTRATION, LIGHT SILVER
TYPE A:REFER TO ILLUSTRATION & LIGHT SILVER,W(OVER FENDER)
DARK SILVER
DARK SILVER,W(OVER FENDER)
VX-R OR VX LIMITED
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
W(OVER FENDER)
VX-R
VX-R
main75992-60490iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..(GX,STD)..GEN..EFI;FZJ80,HZJ80..5F..(CBR,DSL);FZJ80,HDJ80..(ARL,GCC)..(EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION
main75992-60500iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199608-199801
TYPE B:REFER TO ILLUSTRATION & W(OVER FENNDER)
VX-R
LIMITED EDITION(G.C.C.)
LIMITED EDITION(G.C.C.)
GX-R
LIMITED EDITION(G.C.C)
75993ASTRIPE, QUARTER, REAR RH
DARK SILVER,045 ,181 ,20R ,26P ,27P ,4E9 ,4K1; DARK SILVER,045 ,20R ,26P ,27P ,4K1
LIGHT SILVER,183 ,202 ,26W ,3H4 ,3H7 ,6M1 ,8H6; LIGHT SILVER,183 ,26W ,3H4 ,6M1
LIGHT SILVER,183 ,202 ,25N ,26W ,3H4 ,6M1
DARK SILVER,045 ,181 ,20R ,26P ,27P ,4E9 ,4K1; DARK SILVER,045 ,181 ,4E9 ,4K1; DARK SILVER,045 ,20R ,26P ,27P ,4K1
DARK SILVER,045 ,181 ,26P ,4E9 ,4K1; DARK SILVER,045 ,26P ,4K1
LIGHT SILVER,1A6 ,202 ,3H4 ,6M1 ,8K0
main75994-60100-B0iFZJ80..STD..CBR; FZJ80..VX..GCC; FZJ80..VX..GEN;FZJ80..GX..(GCC,GEN)199410-199501
LIGHT SILVER,183 ,202 ,25N ,26W ,3H4 ,6M1; LIGHT SILVER,183 ,202 ,26W ,3H4 ,3H7 ,6M1 ,8H6; LIGHT SILVER,183 ,3H4 ,3H7 ,6M1 ,8H6
main75994-60100-B1iFZJ80..STD..CBR; FZJ80..VX..GCC; FZJ80..VX..GEN;FZJ80..GX..(GCC,GEN)199410-199501
DARK SILVER,045 ,181 ,26P ,4E9 ,4K1; DARK SILVER,045 ,181 ,4E9 ,4K1; DARK SILVER,045 ,26P ,4K1
LIMITED EDITION(G.C.C)
75994BSTRIP, QUARTER, REAR LH
DARK SILVER,045 ,181 ,20R ,26P ,27P ,4E9 ,4K1; DARK SILVER,045 ,20R ,26P ,27P ,4K1
LIGHT SILVER,1A6 ,2AC ,3H4 ,6M1 ,8K0
main75994-60100-B0iFZJ80..GX..CBR;FZJ80..VX..GEN;FZJ80..GX..GEN..EFI; FZJ80..LUB..STD;FZJ80..RHD..STD;FZJ80..STD..GCC199501-199909
LIGHT SILVER,1A6 ,202 ,2AC ,3H4 ,6M1 ,8K0; LIGHT SILVER,1A6 ,3H4 ,6M1 ,8K0
main75994-60100-B1iFZJ80..STD..CBR; FZJ80..VX..GCC; FZJ80..VX..GEN;FZJ80..GX..(GCC,GEN)199410-199501
DARK SILVER,045 ,181 ,26P ,4E9 ,4K1; DARK SILVER,045 ,181 ,4E9 ,4K1; DARK SILVER,045 ,26P ,4K1
LIMITED EDITION(G.C.C)
10 parts on this diagram · 11 diagrams in section
