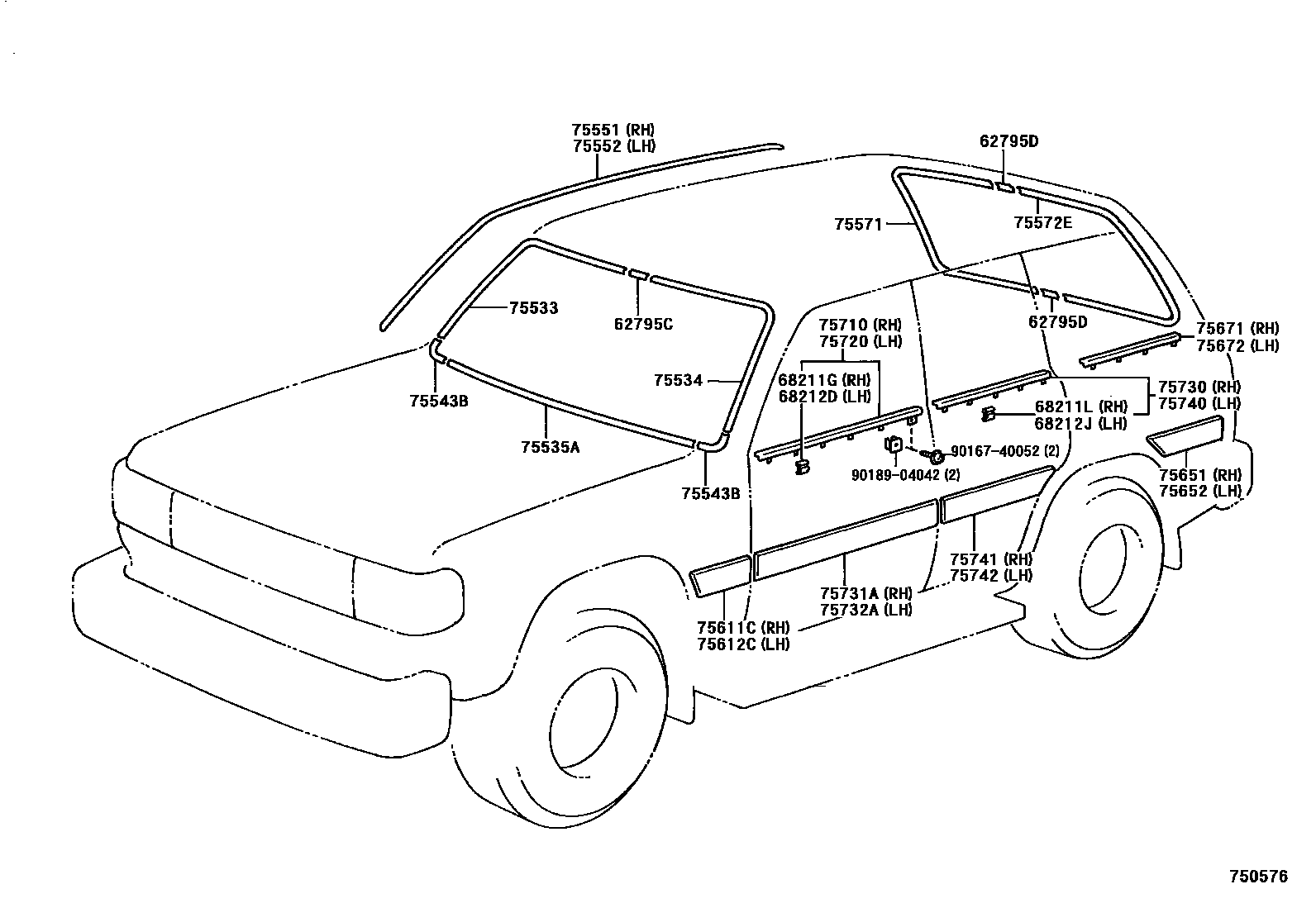

MOULDING

0001 1 0002 1

62795CCOVER, WINDSHILED MOULDING JOINT

main62795-90A00iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(GX,VX)..(CBR,DSL)199001-199208

62795DCOVER, BACK WINDOW MOULDING JOINT

main62795-90A00×2iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..LUB..(GX,VX)..(CBR,DSL)199001-199208

68211GCLIP(DOOR BELT MOULDING RH)

main68211-60030×7iHZJ80..4FC;HDJ80..5F..VX..ARL;FZJ80..GX..GCC..EFI;FZJ80..5F..VX..GEN..EFI;FZJ80,HDJ80..RHD..4FC..VX;HDJ80,HZJ80..LHD..SOB..(GX,VX)..GEN199208-200612

68211LCLIP, REAR DOOR BELT MOULDING, RH

main68211-60030×6iFZJ80,HDJ80,HZJ80..GX,VX199208-200612

68212DCLIP(DOOR BELT MOULDING LH)

main68211-60030×7iHZJ80..4FC;HDJ80..5F..VX..ARL;FZJ80..GX..GCC..EFI;FZJ80..5F..VX..GEN..EFI;FZJ80,HDJ80..RHD..4FC..VX;HDJ80,HZJ80..LHD..SOB..(GX,VX)..GEN199208-200612

68212JCLIP, REAR DOOR BELT MOULDING, LH

main68211-60030×6iFZJ80,HDJ80,HZJ80..GX,VX199208-200612

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-60010iHDJ80..GX;HDJ80..GEN;HZJ80..GX,VX;FZJ80..4FC..GX;FZJ80..5F..(GX,VX);FZJ80..LHD..4FC..VX199208

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-60010iHDJ80..GX;HDJ80..GEN;HZJ80..GX,VX;FZJ80..4FC..GX;FZJ80..5F..(GX,VX);FZJ80..LHD..4FC..VX199208

75535AMOULDING, WINDSHIELD, OUTSIDE LOWER

main75535-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(GX,VX)..(CBR,DSL)199001-199208

75543BCOVER, WINDSHIELD MOULDING JOINT, LOWER

main75543-60010×2iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(GX,VX)..(CBR,DSL)199001-199208

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-60010iFZJ80..STD200109

main75551-60020iFZJ80,HDJ80..VX..ARL199208-199801

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-60010iHDJ80..GX;HDJ80..GEN;HZJ80..GX,VX;FZJ80..4FC..GX;FZJ80..5F..(GX,VX);FZJ80..LHD..4FC..VX199208

main75552-60020iFJ80,HDJ80..VX..ARL199001-199208

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..LUB..(GX,VX)..(CBR,DSL)199001-199208

75572EMOULDING, BACK WINDOW, OUTSIDE UPPER LH

main75572-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..LUB..(GX,VX)..(CBR,DSL)199001-199208

75611CMOULDING, FRONT FENDER, OUTSIDE RH

main75611-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

main75611-60020iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

W(OVER FENDER)

main75611-60030iFJ80,FZJ80,HZJ80..VX..GCC199001-199208

FOR VX-R,W(OVER FENDER)

main75611-60060iHDJ80..RHD..5F..TD2199501-199901

main75611-60070iFZJ80..STD200407

main75611-60080iHDJ80..RHD..4FC..TD2199610-200103

main75611-60100iFZJ80,HZJ80..GX..GCC199609-199702

LIMITED EDITION(G.C.C.)

main75611-60140iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

75612CMOULDING, FRONT FENDER, OUTSIDE LH

main75612-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

main75612-60020iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(OVER FENDER)

main75612-60030iFZJ80,HZJ80..VX..GCC199208-199501

FOR VX-R,W(OVER FENDER)

main75612-60060iHDJ80..LHD;HZJ80..5F..(GX,VX);FZJ80..(GX,STD)..EFI;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80..(GX,VX)..(CBR,TD4)199501-200407

main75612-60070iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80..(ARL,GCC)..EFI;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HDJ80..(GX,VX)..(CBR,TD4)199501-200407

W(OVER FENDER)

main75612-60080iHDJ80..RHD..4FC..TD2199610-200103

main75612-60100iFZJ80,HZJ80..GX..GCC199609-199702

LIMITED EDITION(G.C.C.)

main75612-60140iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

75651MOULDING, QUARTER, OUTSIDE RH

main75651-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

main75651-60020iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(OVER FENDER)

main75651-60050iFZJ80,HZJ80..VX..GCC199208-199501

FOR VX-R,W(OVER FENDER)

main75651-60070iFZJ80..4FC..VX..GEN199501-199909

main75651-60080iFZJ80..5F..VX..GEN..EFI199711-200407

main75651-60100iHDJ80..RHD..4FC..TD2199610-200103

main75651-60130iFZJ80,HZJ80..GX..GCC199609-199702

LIMITED EDITION(G.C.C.)

main75651-60200iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

main75651-60210iFZJ80..VX200407

75652MOULDING, QUARTER, OUTSIDE LH

main75652-60010iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

main75652-60020iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(OVER FENDER)

main75652-60050iFZJ80,HZJ80..VX..GCC199208-199501

FOR VX-R,W(OVER FENDER)

main75652-60070iFZJ80..LUB..STD..CBR199603-200407

main75652-60080iHDJ80..LHD;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80..(ARL,GCC)..EFI;FZJ80..4FC..(GX,VX)..GEN;FZJ80,HDJ80..(GX,VX)..(CBR,TD4)199501-200407

W(OVER FENDER)

main75652-60100iHDJ80..RHD..4FC..TD2199610-200103

main75652-60130iFZJ80,HZJ80..GX..GCC199609-199702

LIMITED EDITION(G.C.C.)

main75652-60190iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

main75652-60200iFZJ80..VX200407

75671MOULDING, QUARTER BELT, RH

main75660-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(GX,VX)..(CBR,DSL)199001-199208

main75660-60020iFZJ80,HDJ80..VX..ARL199208-199801

75672MOULDING, QUARTER BELT, LH

main75670-60010iHDJ80..GX;HDJ80..GEN;HZJ80..GX,VX;FZJ80..4FC..GX;FZJ80..5F..(GX,VX);FZJ80..LHD..4FC..VX199208

main75670-60020iFJ80,HDJ80..VX..ARL199001-199208

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(GX,VX)..(CBR,DSL)199001-199208

main75710-60011iHDJ80..GX;FZJ80..4FC..GX;FZJ80..5F..(GX,VX);FZJ80..LHD..4FC..VX;HDJ80,HZJ80..(GX,VX)..(DSL,TD2)199603

main75710-60020iFJ80,HDJ80..VX..ARL199001-199208

main75710-60021iFZJ80,HDJ80..VX..ARL199603-199801

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-60010iHDJ80..GX;HDJ80..GEN;FZJ80..4FC..GX;FZJ80..LHD..4FC..VX;FZJ80,HZJ80..5F..(GX,VX)199208-199603

main75720-60011iFZJ80..STD..EFI200105

main75720-60020iFZJ80,HDJ80..VX..ARL199208-199603

main75720-60021iFZJ80,HDJ80..VX..ARL199603-199801

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(GX,VX)..(CBR,DSL)199001-199208

main75730-60020iFJ80,HDJ80..VX..ARL199001-199208

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

main75731-60020iFJ80,FZJ80,HZJ80..VX..GCC199001-199208

FOR VX-R,W(OVER FENDER)

main75731-60050iFZJ80..VX..GEN..EFI199501-200407

main75731-60060iFZJ80,HZJ80..VX..GCC199501-199801

FOR VX-R,W(OVER FENDER)

main75731-60090iFZJ80,HZJ80..GX..GCC199609-199702

LIMITED EDITION(G.C.C.)

main75731-60100iFZJ80,HZJ80..VX..GCC199609-199703

LIMITED EDITION(G.C.C.)

main75731-60150iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

main75732-60020iFJ80,FZJ80,HZJ80..VX..GCC199001-199208

FOR VX-R,W(OVER FENDER)

main75732-60050iFZJ80..LUB..STD..CBR199603

main75732-60060iFZJ80,HZJ80..VX..GCC199501-199801

FOR VX-R,W(OVER FENDER)

main75732-60090iFZJ80,HZJ80..GX..GCC199609-199702

LIMITED EDITION(G.C.C.)

main75732-60100iFZJ80,HZJ80..VX..GCC199609-199703

LIMITED EDITION(G.C.C.)

main75732-60150iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-60010iHDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..(GX,VX)..(CBR,DSL)199001-199208

main75740-60020iFJ80,HDJ80..VX..ARL199001-199208

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

main75741-60020iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

W(OVER FENDER)

main75741-60070iFJ80,FZJ80,HZJ80..VX..GCC199001-199208

FOR VX-R,W(OVER FENDER)

main75741-60080iFZJ80..4FC..VX..GEN199501-199909

main75741-60090iFZJ80..5F..VX..GEN..EFI199711-200407

main75741-60110iFZJ80,HZJ80..VX..GCC199501-199801

FOR VX-R,W(OVER FENDER)

main75741-60140iFZJ80,HZJ80..GX..GCC199609-199702

LIMITED EDITION(G.C.C.)

main75741-60150iFZJ80,HZJ80..VX..GCC199609-199703

LIMITED EDITION(G.C.C.)

main75741-60190iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

main75741-60220iFZJ80..VX200407

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199208

main75742-60020iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(OVER FENDER)

main75742-60070iFJ80,FZJ80,HZJ80..VX..GCC199001-199208

FOR VX-R,W(OVER FENDER)

main75742-60080iFZJ80..4FC..VX..GEN199501-199909

main75742-60090iFZJ80..5F..VX..GEN..EFI199711-200407

main75742-60110iFZJ80,HZJ80..VX..GCC199501-199801

FOR VX-R,W(OVER FENDER)

main75742-60140iFZJ80,HZJ80..GX..GCC199609-199702

LIMITED EDITION(G.C.C.)

main75742-60150iFZJ80,HZJ80..VX..GCC199609-199703

LIMITED EDITION(G.C.C.)

main75742-60190iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

main75742-60220iFZJ80..VX200407

9016740052

main90167-40052

9018904042

main90189-04042

30 parts on this diagram · 2 diagrams in section
