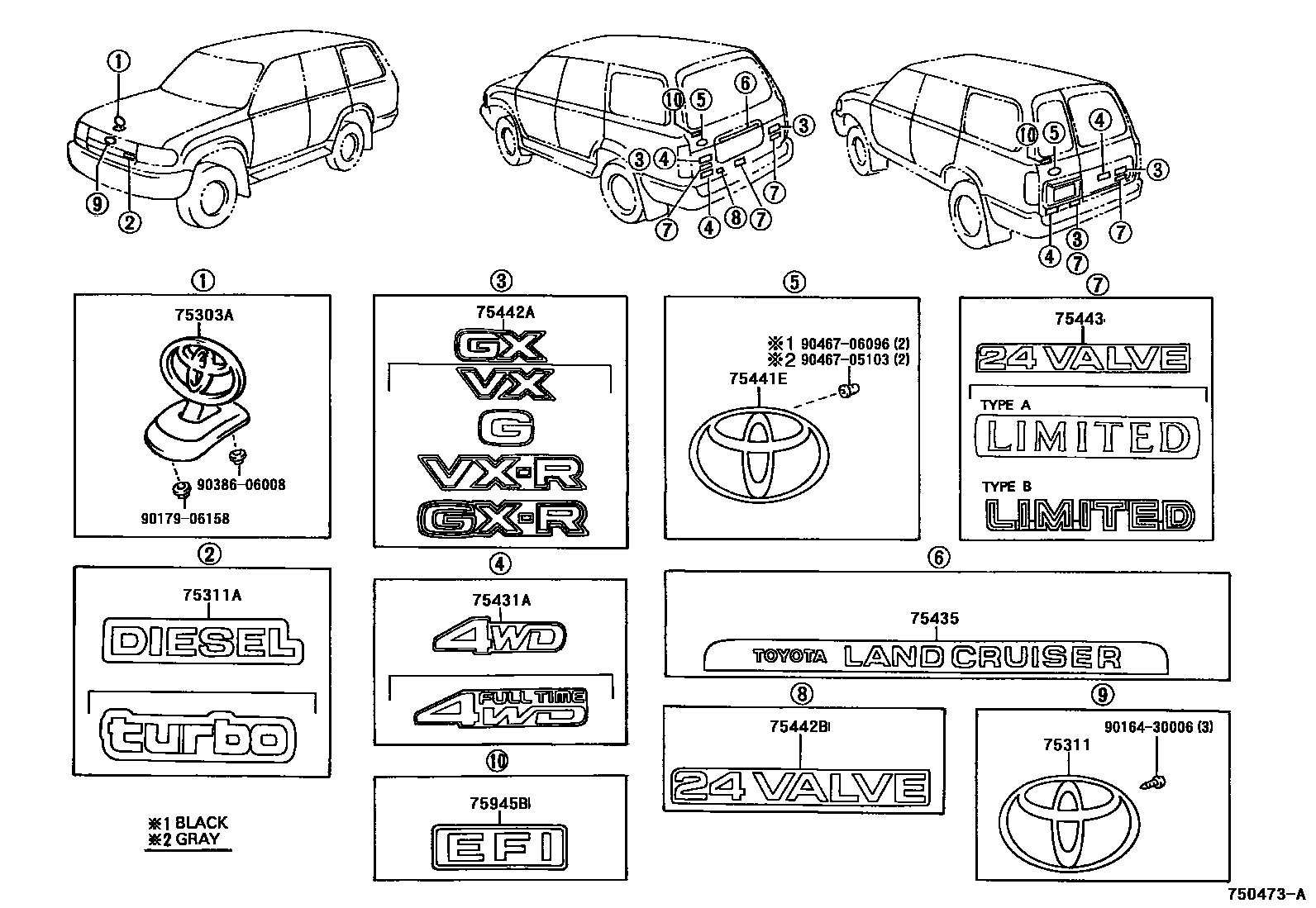

EMBLEM & NAME PLATE
75303AEMBLEM SUB-ASSY, HOOD
CHROME PLATED
GOLD
75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
GOLD
75311APLATE, FRONT NAME, NO.1
DIESEL
TURBO
DIESEL,GOLD
75431AEMBLEM, BACK DOOR, NO.1
GOLD
FULL TIME 4WD,GOLD
4WD
FULL TIME 4WD
75435ORNAMENT, BACK DOOR
LIMITED EDITION(G.C.C)
75441EPLATE, BACK DOOR NAME, NO.1
BLACK,202
main75441-60070-02iFZJ80,HZJ80..VX..GCC; HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN)199208-199301
RED MICA,25N ,3H4; RED MICA,3H4
main75441-60070-03iFZJ80,HDJ80,HZJ80..GX;FZJ80,HDJ80,HZJ80..VX..GEN; FZJ80,HDJ80,HZJ80..VX..(ARL,GCC); FZJ80,HZJ80..STD199208-199301
BLUISH SILVER M,181; BLUISH SILVER M,181 ,20R ,26P; BLUISH SILVER M,20R ,26P
BLUE,8H6
main75441-60070-05iFZJ80..GX,STD;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80,HDJ80,HZJ80..(GX,STD)..(DSL,EFI,TD2)199001-199208
BEIGE,4E9
main75441-60070-06iFZJ80..GX,STD;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80,HDJ80,HZJ80..(GX,STD)..(DSL,EFI,TD2)199001-199208
DARK GREYISH BROWN M,4L6
WHITE,045
main75441-60070-12iFZJ80..GX,STD;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80,HZJ80..VX..GEN;FJ80,HDJ80,HZJ80..(GX,STD)..(DSL,EFI,TD2)199001-199208
RED,3H7
DARK BLUISH GRAY M,183
LIGHT BEIGE M,27P ,4K1; LIGHT BEIGE M,4K1
DARK GREEN MICA,6M1
GOLD
CENTER,GOLD
75442APLATE, BACK DOOR NAME, NO.2
G
GX
VX
VX-R; VX-R,W(SPARE WHEEL CARRIER)
VX-R
GX-R
75442BPLATE, BACK DOOR NAME, NO.2
24 VALVE
24 VALVE,GOLD
75443PLATE, BACK DOOR NAME, NO.3
24 VALVE
24 VALVE,GOLD
LIMITED,LIMITED EDITION(G.C.C.)
LIMITED,LIMITED EDITION(G.C.C),TYPE B
75945BSTRIPE, BACK DOOR
DK.SILVER,045 ,2AB ,4M7
LT.SILVER,1A6 ,2AC ,2AD ,202 ,3H4 ,6M1 ,8K0
LIMITED EDITION(G.C.C)
9016430006
main90164-30006
9017906158
main90179-06158
9038606008
main90386-06008
9046705103
main90467-05103
9046706096
main90467-06096
15 parts on this diagram · 1 diagram in section
