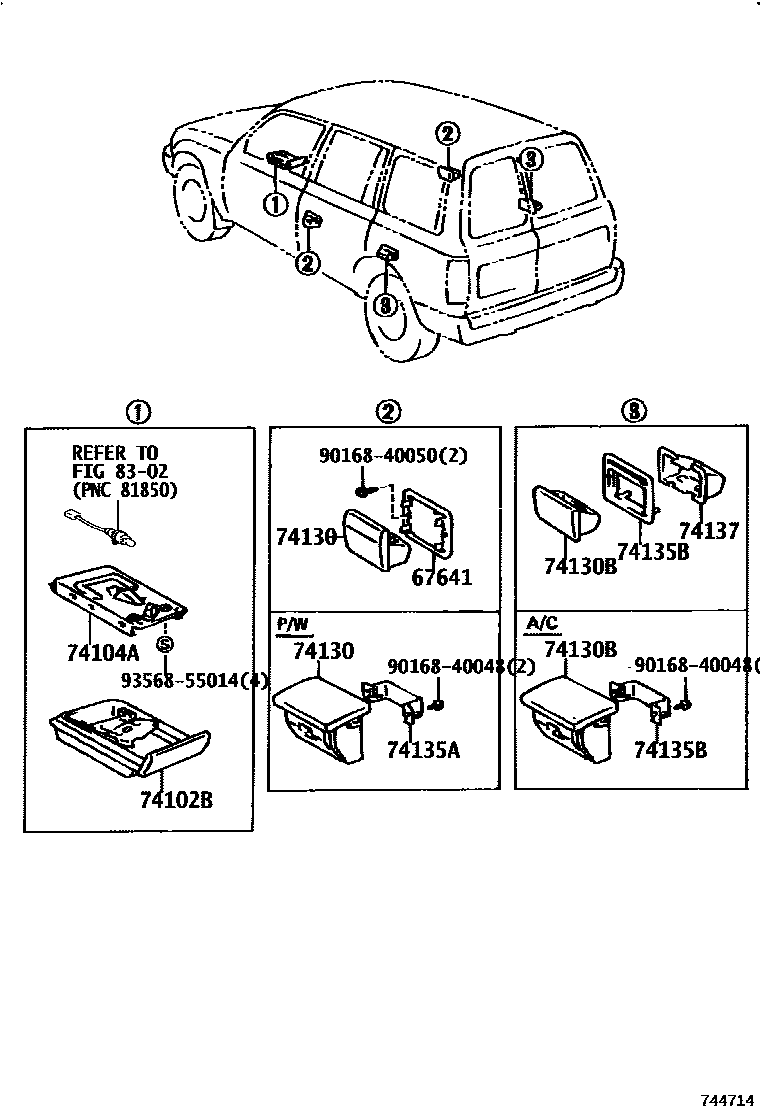

ASH RECEPTACLE

67641BRACKET, ASH RECEPTACLE SET

main67641-30010iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-200109

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-60020iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199501

main74102-60030iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199501

main74102-60070iFZJ80,HDJ80,HZJ80199501-199511

main74102-60080iFZJ80,HDJ80,HZJ80199511

main74102-60090iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-60010iFZJ80,HDJ80,HZJ80..LHD..GEN199001-199501

main74104-60020iFZJ80,HDJ80,HZJ80..RHD199001-199501

main74104-60040iFJ80,FZJ80,HZJ80..GCC199001-199501

main74104-60060iFZJ80,HDJ80,HZJ80199501

74130RECEPTACLE ASSY, REAR ASH

main74130-14020-39iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199501

GRAY,TRIM1#

main74130-14020-58iFZJ80,HDJ80,HZJ80..GX,STD199001-199501

SABLE,TRIM4#

main74130-14020-B1iFZJ80,HDJ80..GX;FZJ80..SOB..STD;HZJ80..5F..(GX,STD)199308-200109

BLUISH GRAY,TRIM1#

main74130-14020-E1iFZJ80,HZJ80..SOB..STD199501-199901

OAK,TRIM4#

main74130-32030-06iFZJ80,HDJ80,HZJ80..VX199001-199501

W(POWER WINDOW),SABLE,TRIM4#

main74130-32030-06iFJ80,FZJ80,HDJ80,HZJ80..VX199001-199501

SABLE,TRIM4#

main74130-32030-13iFJ80,FZJ80,HDJ80,HZJ80..GX199001-199702

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main74130-32030-13iFJ80,FZJ80,HDJ80,HZJ80..VX199001-199702

BLUISH GRAY,TRIM1#

main74130-32030-E0iHDJ80..SOB;FZJ80..SOB..GX;HDJ80,HZJ80..GX;FZJ80..LUB..(GX,STD)199501-199702

W(POWER WINDOW),OAK,TRIM4#

main74130-32030-E0iHDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..VX..(CBR,DSL,EFI,TD4)199501-199702

OAK,TRIM4#

main74130-60020-B0iFZJ80,HDJ80..CBR,TD2199702-200109

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main74130-60020-E0iHZJ80..4FC;HDJ80..RHD..TD2;FZJ80..(STD,VX)..GEN..EFI199702-199901

W(POWER WINDOW),OAK,TRIM4#

main74130-60020-E0iFZJ80..EFI199901

OAK,TRIM4#

main74130-60030iFZJ80,HZJ80..VX..GCC199708-199712

LIMITED EDITION(G.C.C)

74130BRECEPTACLE ASSY, REAR ASH

main74105-10010-30iFZJ80,HDJ80,HZJ80..GX,VX;FZJ80,HZJ80..LHD..SOB..STD..GEN199001-199501

SABLE,TRIM4#

main74105-10010-30iFZJ80..LUB..VX..GCC199201-199208

W(CD AUTO CHANGER),SABLE,TRIM4#

main74105-10010-33iFZJ80,HDJ80,HZJ80..GX,VX;FZJ80,HZJ80..LHD..SOB..STD..GEN199001-199501

GRAY,TRIM1#

main74105-10010-33iFZJ80..LUB..VX..GCC199201-199208

W(CD AUTO CHANGER),GRAY,TRIM1#

main74105-10010-B0iHDJ80..ARL;FZJ80..4FC..GX;HDJ80..LHD..LUB;FZJ80..4FC..SOB..VX;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..5F..(GX,VX);FZJ80,HZJ80..LHD..SOB..STD..GEN199308-199901

BLUISH GRAY,TRIM1#

main74105-10010-B0iHDJ80..ARL;FZJ80..4FC..GX;HDJ80..LHD..LUB;FZJ80..4FC..SOB..VX;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..5F..(GX,VX);FZJ80,HZJ80..LHD..SOB..STD..GEN199308-199801

W(CD AUTO CHANGER),BLUISH GRAY,TRIM1#

main74105-10010-E2iFZJ80..LUB..VX..GCC..EFI199501-200612

OAK,TRIM4#

main74105-10010-E2iFZJ80..LUB..VX..GCC..EFI199501-199801

W(CD AUTO CHANGER),OAK,TRIM4#

main74130-32030-06iFZJ80,HDJ80,HZJ80..GX,VX199001-199501

W(DUAL AIR CONDITIONER),SABLE,TRIM4#

main74130-32030-13iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199702

W(DUAL AIR CONDITIONER),BLUISH GRAY,TRIM1#

main74130-32030-13iHDJ80..RHD..4FC..TD2199702-199703

BLUISH GRAY,TRIM1#

main74130-32030-13iHDJ80..RHD..4FC..TD2199702-199703

W(DUAL AIR CONDITIONER),OAK,TRIM4#

main74130-32030-E0iHDJ80..RHD..4FC..TD2199702-199703

OAK,TRIM4#

main74130-32030-E0iHDJ80..RHD..4FC..TD2199702-199703

W(DUAL AIR CONDITIONER),OAK

main74130-32030-E0iHDJ80..LHD..LUB;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80,HDJ80..(GX,VX)..(CBR,EFI,TD4)199501-199702

W(DUAL AIR CONDITIONER),OAK,TRIM4#

main74130-60020-B0iFZJ80..4FC..GEN;HDJ80..LHD..LUB;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80..(GX,VX)..(CBR,TD4)199703-199909

W(DUAL AIR CONDITIONER),BLUISH GRAY,TRIM1#

main74130-60020-B0iHDJ80..RHD..4FC..TD2199703-200103

BLUISH GRAY,TRIM1#

main74130-60020-E0iFZJ80..4FC199703-199909

W(DUAL AIR CONDITIONER),OAK,TRIM4#

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-32010iFZJ80..LUB;HDJ80,HZJ80..GX,VX;FZJ80..SOB..(GX,VX)199605-199901

74135BRETAINER, REAR ASH RECEPTACLE, NO.2

main74135-32010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX199001-199909

W(DUAL AIR CONDITIONER)

main74135-32010iHDJ80..RHD..4FC..TD2199610-200103

main74135-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,VX;FZJ80,HZJ80..LHD..5F..SOB..STD..GEN199001-199901

main74135-60010iFZJ80..LUB..VX..GCC199201-199801

W(CD AUTO CHANGER)

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030iFJ80,FZJ80,HDJ80,HZJ80..GX,VX;FZJ80,HZJ80..LHD..5F..SOB..STD..GEN199001-199901

8302INDICATOR

→ Go to FIG 83-02

9016840048

main90168-40048

9016840050

main90168-40050

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section
