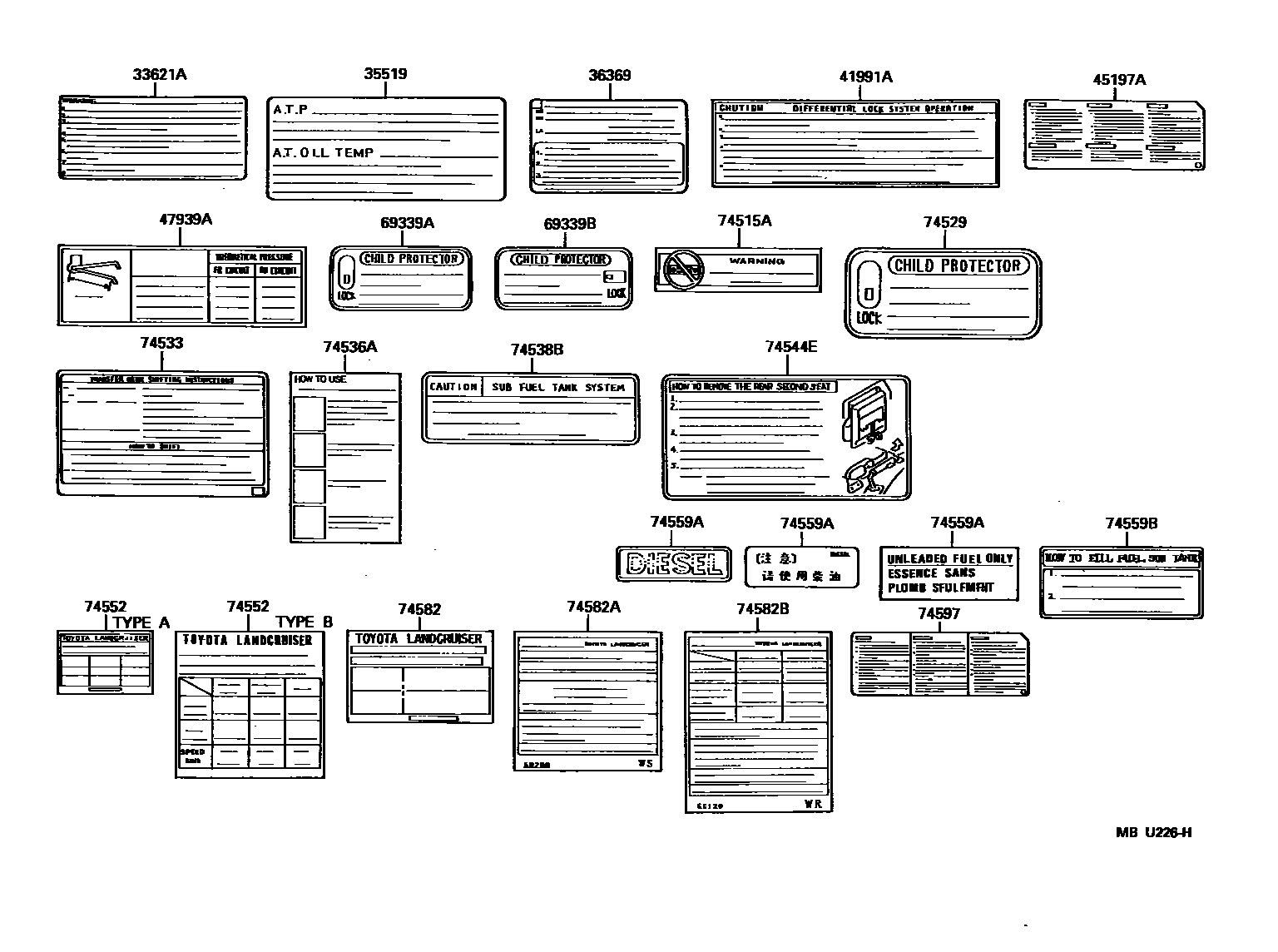

CAUTION PLATE

33621APLATE, CONTROL LEVER CAUTION

main33621-60310iFZJ80,HDJ80..LHD..4FC199208-199701

main33621-60311iFZJ80,HDJ80..LHD..4FC199701-199801

main36621-60311iFZJ80..4FC..VX199801

35519PLATE, AUTOMATIC TRANSMISSION CAUTION

main35519-60010iFJ80,HDJ80,HZJ80..LHD..4FC199001-199004

main35519-60040iFJ80,HDJ80,HZJ80..4FC199004-199010

main35519-60041iFZJ80,HDJ80,HZJ80..RHD..4FC199703-200103

main35519-60050iHZJ80..4FC199609-199702

main35519-60070iFZJ80,HDJ80..4FC..(GCC,GEN)199208-199702

main35519-60071iFZJ80,HDJ80..LHD..4FC199703

36369LABEL, TRANSFER INFORMATION

main36369-60060iFJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..MTM..(GCC,GEN)199001-199010

main36369-60070iFJ80,HDJ80,HZJ80..LHD..4FC199001-199010

main36369-60090iFJ80,HDJ80,HZJ80..5F..LUB..ARL199001-199108

main36369-60110iFJ80,HDJ80..4FC..ARL199001-199108

main36369-60120iFJ80,HDJ80,HZJ80..LHD..MTM199010-199108

main36369-60170iFZJ80,HDJ80..LHD..4FC199208-199608

main36369-60180iFZJ80,HDJ80,HZJ80..5F..LUB..ARL199208-199608

main36369-60190iFZJ80,HDJ80..4FC..ARL199208-199608

main36369-60300iHZJ80..GX..ARL;FZJ80,HDJ80..5F..(EFI,TD2,TD4)199501-199608

W/O(CENTER DIFFERENTIAL LOCK)

main36369-60320iFZJ80,HDJ80..4FC..ARL199305-199501

W/O(CENTER DIFFERENTIAL LOCK)

main36369-60370iFZJ80..GX..ARL199608-199801

W(CENTER DIFFERENTIAL LOCK)

main36369-60380iFZJ80,HDJ80,HZJ80..LUB..ARL; FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199608-199801

W(CENTER DIFFERENTIAL LOCK)

main36369-60400iFZJ80..VX199909

41991APLATE, CAUTION

main41991-60060iFJ80,HDJ80,HZJ80199001-199002

main41991-60061iFZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80199002-199208

45197ALABEL, AIRBAG CAUTION

main45197-60020iFZJ80,HDJ80..VX..ARL199501-199608

main45197-60030iFZJ80..VX..GCC199501-199608

47939APLATE, LOAD SENSING VALVE MARKING

main47939-60230iFJ80,FZJ80..RHD..GEN;HZJ80..RHD..STD..GEN199001-199208

main47939-60270iFZJ80..RHD..CBR;HZJ80..RHD..5F..SOB..GX199208-199901

69339APLATE, CHILD PROTECTOR LOCK CAUTION

main69339-12010iFJ80..4FC..SOB..VX;FJ80,HZJ80..SOB..(GX,STD)..(GCC,GEN)199001-199108

69339BPLATE, CHILD PROTECTOR LOCK CAUTION

main69339-91704iFJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,VX)199001-199208

74515APLATE, THEFT WARNING

main74515-14032×2iFJ80,HDJ80..VX..ARL199001-199208

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010iFZJ80..STD..GCC;FZJ80,HZJ80..5F..SOB..GEN; HZJ80..LHD..STD;FZJ80..LHD..SOB..GEN;HZJ80..5F..SOB..GX..GEN199208-199801

W(3RD PARALLEL SEAT); W(3RD TRANSVERS SEAT)

74533PLATE, TRANSFER CAUTION

main36369-60120iFZJ80..CBR;FZJ80..STD..ARL;HZJ80..LHD..LUB;HZJ80..LHD..STD;HDJ80..5F..LUB..GEN;HZJ80..RHD..5F..GEN;HZJ80..SOB..(ARL,GCC)199302-200109

main36369-60170iFZJ80..GX..GEN..EFI;FZJ80,HDJ80..LHD..4FC..VX199302

main36369-60180iFZJ80,HDJ80,HZJ80..5F..LUB..ARL..(DSL,EFI,TD2)199302-199801

main36369-60190iFZJ80,HDJ80..4FC..ARL..(EFI,TD2)199302-199801

main36369-60300iFZJ80,HDJ80,HZJ80..5F..LUB..ARL..(DSL,EFI,TD2)199302-199801

W(*66)

main36369-60320iFZJ80,HDJ80..4FC..ARL..(EFI,TD2)199302-199801

W(*66)

74536ALABEL, FUEL TANK CAP INFORMATION

main74536-60010×2iFJ80,FZJ80,HDJ80,HZJ80..GCC,GEN199001-199208

W(SUB FUEL TANK)

74538BLABEL, FUEL TANK SYSTEM CAUTION

main74538-60020iFZJ80..GCC..EFI;FZJ80..4FC..GEN199208-199907

main74538-60030iFZJ80..ARL199208-199801

74544ELABEL, REAR NO.2 SEAT INFORMATION

main74544-60090iFZJ80,HDJ80..VX199801

74552PLATE, SAFETY CAUTION

main74582-60140iFJ80..STD..GCC199001-199201

main74582-60141iFZJ80..STD..GCC199201-199208

main74582-60150iFJ80,HZJ80..5F..SOB..GX..GCC; FJ80,HZJ80..GX..GCC199001-199201

TYPE A

main74582-60151iFZJ80..GX..GCC199201-199208

main74582-60160iFJ80..5F..SOB..VX; FJ80..VX..GCC199001-199201

TYPE A

main74582-60161iFZJ80,HZJ80..VX..GCC199201-199208

W(7.50R16-8 TIRE),TYPE A

main74582-60170iFJ80,HZJ80..5F..SOB..GCC; FJ80..SOB..GEN;FJ80..4FC..SOB;HDJ80,HZJ80..GEN;FJ80..LUB..(GCC,GEN)199001-199201

W(9.00-15-6 TIRE); W(9.00-15-6 TIRE),TYPE B

main74582-60180iHZJ80..4FC;HZJ80..RHD..GEN;HDJ80,HZJ80..VX..GEN; HZJ80..LHD..5F..(GX,STD)..GEN199201-199208

W(7.50R16-8 TIRE)

main74582-60310iFJ80..LHD..4F;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN199001-199201

ALGERIA SPEC & W(9.00-15-6 TIRE)

main74582-60320iFJ80..LHD..4F;FZJ80..LHD..SOB..GEN;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN199001-199208

ALGERIA SPEC & W(7.50R16-8 TIRE)

main74582-60360iHZJ80..GX..GCC199201-199208

W(7.50R16-8 TIRE),TYPE A

main74582-60600iFZJ80,HZJ80..STD..ARL199208-199801

main74582-60640iHZJ80..VX..GCC;FZJ80..(GX,VX)..GCC199208-199508

main74582-60641iHZJ80..VX..GCC;FZJ80..(GX,VX)..GCC199508-199608

main74582-60650iHZJ80..GX..GCC199208-199508

main74582-60651iFZJ80..STD..GCC199208-199508

main74582-60700iHZJ80..LHD..STD;HZJ80..LHD..LUB..GX;FZJ80..LHD..SOB..GEN199208-199811

ALGERIA SPEC

74559APLATE, FUEL CAUTION

main74559-14050iFZJ80..ARL;FZJ80..5F..GEN..EFI199208-199909

main74559-27010iHZJ80..LHD..LUB..GX199501-199801

CHINA SPEC

main74559-89101iHDJ80,HZJ80199001-199208

74559BLABEL, FUEL INFORMATION

main74572-60010iFZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2199001-199203

main74572-60030iFZJ80..LHD..SOB..STD..GEN;FZJ80,HZJ80..LHD..5F..LUB..GX..GEN199308-199811

CHINA SPEC

74582PLATE, LOAD SENSING VALVE MARKING

main74582-60700iHZJ80..LHD..STD;HZJ80..LHD..LUB..GX;FZJ80..LHD..SOB..GEN199208-200109

ALGERIA SPEC

74582APLATE, SAFETY CAUTION

main74582-60110iFJ80,HZJ80..STD..ARL199001-199208

main74582-60120iFJ80,HDJ80,HZJ80..LUB..ARL199001-199208

main74582-60600iFZJ80,HDJ80,HZJ80..LUB..ARL199208-199801

74582BPLATE, SAFETY CAUTION

main74582-60200iFJ80,HDJ80,HZJ80..LUB..ARL199001-199208

main74582-60610iFZJ80,HDJ80,HZJ80..LUB..ARL199208-199501

main74582-60611iFZJ80,HDJ80,HZJ80..LUB..ARL199501-199801

74597LABEL, DRIVER & PASSENGER AIRBAG CAUTION

main74597-60020iHDJ80..RHD..4FC..TD2;FZJ80,HDJ80,HZJ80..ARL199608-199708

main74597-60040iFZJ80,HDJ80,HZJ80..ARL199708-199801

21 parts on this diagram · 1 diagram in section
