SEAT BELT

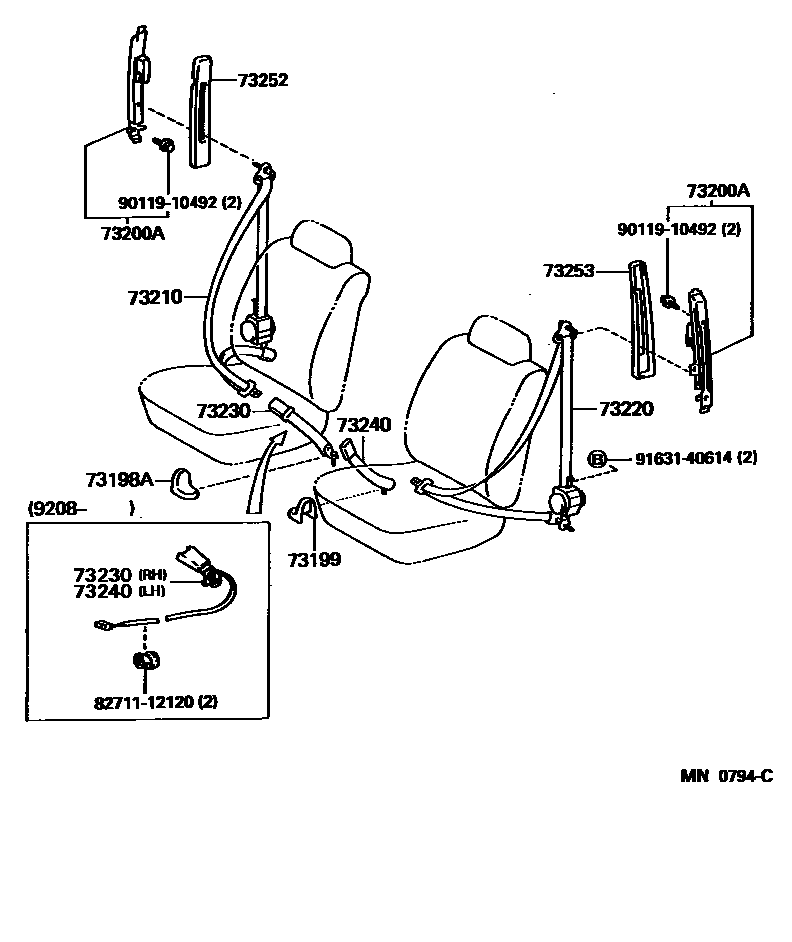

Parts diagram
73198ACOVER, FRONT SEAT BELT INNER ANCHOR, RH
main73198-60010-03i199008-199201
BLUISH GRAY,TRIM1#
main73198-60010-06i199008-199201
SABLE,TRIM4#
73199COVER, FRONT SEAT BELT INNER ANCHOR, LH
main73199-60010-03i199008-199201
BLUISH GRAY,TRIM1#
main73199-60010-06i199008-199201
SABLE,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-60010-03i199001-199501
LIGHT GRAY,TRIM1#
main73200-60010-03i199501-199801
LIGHT GRAY,TRIM1#,4#
main73200-60010-06i199001-199501
LIGHT SABLE,TRIM4#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-60040-03i199001-199604
BLUISH GRAY,TRIM1#
main73210-60040-06i199001-199501
SABLE,TRIM4#
main73210-60040-E0i199501-199604
OAK,TRIM4#
main73210-60041-B0i199604-199801
BLUISH GRAY,TRIM1#
main73210-60041-E0i199604-199801
OAK,TRIM4#
main73210-60050-03i199501-199604
W(ADJUSTABLE SH0ULDER BELT ANCHOR),BLUISH GRAY,TRIM1#
main73210-60050-03i199001-199604
W(ADJUSTABLE SHOULDER BELT ANCHOR),BLUISH GRAY,TRIM1#
main73210-60050-06i199001-199501
W(ADJUSTABLE SHOULDER BELT ANCHOR),SABLE,TRIM4#
main73210-60050-E0i199501-199604
W(ADJUSTABLE SH0ULDER BELT ANCHOR),OAK,TRIM4#
main73210-60051-B0i199604-199801
W(ADJUSTABLE SH0ULDER BELT ANCHOR),BLUISH GRAY,TRIM1#
main73210-60051-E0i199604-199801
W(ADJUSTABLE SH0ULDER BELT ANCHOR),OAK,TRIM4#
main73210-60080-03i199001-199201
BLUISH GRAY,TRIM1#
main73210-60080-03i199001-199201
W(*ELR),BLUISH GRAY,TRIM1#
main73210-60080-06i199001-199201
SABLE,TRIM4#
main73210-60080-06i199001-199201
W(*ELR),SABLE,TRIM4#
main73210-60090-03i199001-199208
SOUTH AFRICA SPEC & ZIMBABWE SPEC,BLUISH GRAY,TRIM1#
main73210-60090-03i199001-199208
ZIMBABWE SPEC,BLUISH GRAY,TRIM1#
main73210-60090-03i199001-199208
SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#
main73210-60090-06i199001-199208
ZIMBABWE SPEC,SABLE,TRIM4#
main73210-60090-06i199001-199208
SOUTH AFRICA SPEC & ZIMBABWE SPEC,SABLE,TRIM4#
main73210-60090-06i199001-199208
SOUTH AFRICA SPEC,SABLE,TRIM4#
main73210-60091-B0i199208-199801
SOUTH AFRICA SPEC & ZIMBABWE SPEC,BLUISH GRAY,TRIM1#
main73210-60091-B0i199208-199801
SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#
main73210-60091-B0i199208-199508
ZIMBABWE SPEC,BLUISH GRAY,TRIM1#
main73210-60091-E0i199208-199501
SOUTH AFRICA SPEC,SABLE,TRIM4#
main73210-60091-E0i199208-199501
ZIMBABWE SPEC,SABLE,TRIM4#
main73210-60091-E0i199208-199501
SOUTH AFRICA SPEC & ZIMBABWE SPEC,SABLE,TRIM4#
main73210-60091-E1i199501-199801
SOUTH AFRICA SPEC,OAK,TRIM4#
main73210-60091-E1i199501-199508
ZIMBABWE SPEC,OAK,TRIM4#
main73210-60091-E1i199501-199801
SOUTH AFRICA SPEC OR ZIMBABWE SPEC,OAK,TRIM4#
main73210-60130-03i199008-199208
BLUISH GRAY,TRIM1#
main73210-60130-03i199201-199208
W(*ELR),BLUISH GRAY,TRIM1#
main73210-60130-06i199008-199208
SABLE,TRIM4#
main73210-60130-06i199201-199208
W(*ELR),SABLE,TRIM4#
main73210-60131-B0i199208-199708
BLUISH GRAY,TRIM1#
main73210-60131-B0i199208-199708
W(*ELR),BLUISH GRAY,TRIM1#
main73210-60131-E0i199208-199501
W(*ELR),SABLE,TRIM4#
main73210-60131-E0i199208-199501
SABLE,TRIM4#
main73210-60131-E1i199501-199708
OAK,TRIM4#
main73210-60131-E1i199501-199708
W(*ELR),OAK,TRIM4#
main73210-60132-B0i199708-200109
BLUISH GRAY,TRIM1#
main73210-60132-B0i199708-199909
BLUISH GRAY,TRIM10
main73210-60132-E1i199909-200612
OAK,TRIM4#
main73210-60132-E1i199708-199909
OAK,TRIM10
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-60040-03i199001-199604
BLUISH GRAY,TRIM1#
main73220-60040-06i199001-199501
SABLE,TRIM4#
main73220-60040-E0i199501-199604
OAK,TRIM4#
main73220-60041-B0i199604-199801
BLUISH GRAY,TRIM1#
main73220-60041-E0i199604-199801
OAK,TRIM4#
main73220-60050-03i199001-199604
W(ADJUSTABLE SLIDE ANCHOR),BLUISH GRAY,TRIM1#
main73220-60050-03i199501-199604
W(ADJUSTABLE SH0ULDER BELT ANCHOR),BLUISH GRAY,TRIM1#
main73220-60050-06i199001-199501
W(ADJUSTABLE SLIDE ANCHOR),SABLE,TRIM4#
main73220-60050-E0i199501-199604
W(ADJUSTABLE SH0ULDER BELT ANCHOR),OAK,TRIM4#
main73220-60051-B0i199604-199801
W(ADJUSTABLE SH0ULDER BELT ANCHOR),BLUISH GRAY,TRIM1#
main73220-60051-E0i199604-199801
W(ADJUSTABLE SH0ULDER BELT ANCHOR),OAK,TRIM4#
main73220-60080-03i199001-199201
W(*ELR),BLUISH GRAY,TRIM1#
main73220-60080-03i199001-199201
BLUISH GRAY,TRIM1#
main73220-60080-06i199001-199201
W(*ELR),SABLE,TRIM4#
main73220-60080-06i199001-199201
SABLE,TRIM4#
main73220-60090-03i199001-199208
ZIMBABWE SPEC & W(3-2-3 FRONT SEAT BELT),BLUISH GRAY,TRIM1#
main73220-60090-06i199001-199208
ZIMBABWE SPEC & W(3-2-3 FRONT SEAT BELT),SABLE,TRIM4#
main73220-60091-B0i199208-199508
ZIMBABWE SPEC & W(3-2-3 FRONT SEAT BELT),BLUISH GRAY,TRIM1#
main73220-60091-E0i199208-199501
ZIMBABWE SPEC & W(3-2-3 FRONT SEAT BELT),SABLE,TRIM4#
main73220-60091-E1i199501-199508
ZIMBABWE SPEC & W(3-2-3 FRONT SEAT BELT),OAK,TRIM4#
main73220-60130-03i199008-199208
BLUISH GRAY,TRIM1#
main73220-60130-03i199201-199208
W(*ELR),BLUISH GRAY,TRIM1#
main73220-60130-06i199008-199208
SABLE,TRIM4#
main73220-60130-06i199201-199208
W(*ELR),SABLE,TRIM4#
main73220-60131-B0i199208-199708
BLUISH GRAY,TRIM1#
main73220-60131-B0i199208-199708
W(*ELR),BLUISH GRAY,TRIM1#
main73220-60131-E0i199208-199501
SABLE,TRIM4#
main73220-60131-E0i199208-199501
W(*ELR),SABLE,TRIM4#
main73220-60131-E1i199501-199708
OAK,TRIM4#
main73220-60131-E1i199501-199708
W(*ELR),OAK,TRIM4#
main73220-60132-B0i199708-199909
BLUISH GRAY,TRIM10
main73220-60132-B0i199708-200109
BLUISH GRAY,TRIM1#
main73220-60132-E1i199708-199909
OAK,TRIM10
main73220-60132-E1i199909-200612
OAK,TRIM4#
main73220-60150-03i199001-199208
SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#
main73220-60150-03i199001-199208
SOUTH AFRICA SPEC OR ZIMBABWE SPEC,BLUISH GRAY,TRIM1#
main73220-60150-03i199001-199201
ZIMBABWE SPEC,BLUISH GRAY,TRIM1#
main73220-60150-03i199201-199208
ZIMBABWE SPEC & W(3-3 FRONT SEAT BELT),BLUISH GRAY,TRIM1#
main73220-60150-06i199001-199208
SOUTH AFRICA SPEC,SABLE,TRIM4#
main73220-60150-06i199001-199208
SOUTH AFRICA SPEC OR ZIMBABWE SPEC,SABLE,TRIM4#
main73220-60150-06i199001-199201
ZIMBABWE SPEC,SABLE,TRIM4#
main73220-60150-06i199201-199208
ZIMBABWE SPEC & W(3-3 FRONT SEAT BELT),SABLE,TRIM4#
main73220-60151-B0i199208-199801
SOUTH AFRICA SPEC OR ZIMBABWE SPEC,BLUISH GRAY,TRIM1#
main73220-60151-B0i199208-199801
SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#
main73220-60151-B0i199208-199508
ZIMBABWE SPEC & W(3-3 FRONT SEAT BELT),BLUISH GRAY,TRIM1#
main73220-60151-E0i199208-199501
SOUTH AFRICA SPEC OR ZIMBABWE SPEC,SABLE,TRIM4#
main73220-60151-E0i199208-199501
SOUTH AFRICA SPEC,SABLE,TRIM4#
main73220-60151-E0i199208-199501
ZIMBABWE SPEC & W(3-3 FRONT SEAT BELT),SABLE,TRIM4#
main73220-60151-E1i199501-199801
SOUTH AFRICA SPEC OR ZIMBABWE SPEC & W(3-3 FRONT SEAT BELT),OAK,TRIM4#
main73220-60151-E1i199501-199801
SOUTH AFRICA SPEC,OAK,TRIM4#
main73220-60151-E1i199501-199508
ZIMBABWE SPEC & W(3-3 FRONT SEAT BELT),OAK,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-60010-03i199001-199201
ZIMBABWE SPEC,BLUISH GRAY,TRIM1#
main73230-60010-03i199001-199208
BLUISH GRAY,TRIM1#
main73230-60010-03i199001-199201
SOUTH AFRICA SPEC OR ZIMBABWE SPEC),BLUISH GRAY,TRIM1#
main73230-60010-03i199001-199201
SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#
main73230-60010-03i199201-199208
W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main73230-60010-06i199001-199208
SABLE,TRIM4#
main73230-60010-06i199201-199208
W(SEPARATE SEAT),SABLE,TRIM4#
main73230-60010-06i199001-199201
SOUTH AFRICA SPEC,SABLE,TRIM4#
main73230-60010-06i199001-199201
SOUTH AFRICA SPEC OR ZIMBABWE SPEC),SABLE,TRIM4#
main73230-60010-06i199001-199201
ZIMBABWE SPEC,SABLE,TRIM4#
main73230-60011i200010-200612
main73230-60011-B0i199208-200103
BLUISH GRAY,TRIM1#
main73230-60011-B0i199608-199909
W(*ELR),BLUISH GRAY,TRIM1#
main73230-60011-E0i199208-199501
SABLE,TRIM4#
main73230-60011-E1i199501-200612
OAK,TRIM4#
main73230-60011-E1i199608-199909
W(*ELR),OAK,TRIM4#
main73230-60050-03i199008-199201
W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main73230-60050-03i199008-199201
BLUISH GRAY,TRIM1#
main73230-60050-06i199008-199201
W(SEPARATE SEAT),SABLE,TRIM4#
main73230-60050-06i199008-199201
SABLE,TRIM4#
main73230-60060-03i199001-199201
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
main73230-60060-03i199001-199008
BLUISH GRAY,TRIM1#
main73230-60060-06i199001-199201
W(CENTER SEAT BELT),SABLE,TRIM4#
main73230-60060-06i199001-199008
SABLE,TRIM4#
main73230-60080-03i199001-199201
BLUISH GRAY,TRIM1#
main73230-60080-03i199001-199201
W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main73230-60080-03i199001-199201
W(*ELR),BLUISH GRAY,TRIM1#
main73230-60080-06i199001-199201
W(SEPARATE SEAT),SABLE,TRIM4#
main73230-60080-06i199001-199201
W(*ELR),SABLE,TRIM4#
main73230-60080-06i199001-199201
SABLE,TRIM4#
main73230-60110-03i199001-199201
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main73230-60110-06i199001-199201
W(BENCH SEAT),SABLE,TRIM4#
main73230-60200-B0i199208-199801
W(POWER SEAT),BLUISH GRAY,TRIM1#
main73230-60200-B0i199610-199801
BLUISH GRAY,TRIM1#
main73230-60200-E0i199208-199501
W(POWER SEAT),SABLE,TRIM4#
main73230-60200-E1i199501-199801
W(POWER SEAT),OAK,TRIM4#
main73240-60050-03i199008-199208
BLUISH GRAY,TRIM1#
main73240-60050-06i199008-199208
SABLE,TRIM4#
main73240-60051-B0i199208-200109
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
main73240-60051-B0i199510-199607
SWING OUT BACK DOOR EDITION(PHILIPPINES),BLUISH GRAY,TRIM1#
main73240-60051-E0i199208-199501
W(CENTER SEAT BELT),SABLE,TRIM4#
main73240-60051-E1i199501-200010
W(CENTER SEAT BELT),0AK,TRIM4#
main73240-60051-E1i199909-200010
0AK,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-60010-03i199001-199201
ZIMBABWE SPEC & W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main73230-60010-03i199001-199201
SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#
main73230-60010-03i199001-199201
SOUTH AFRICA SPEC OR ZIMBABWE SPEC,BLUISH GRAY,TRIM1#
main73230-60010-03i199001-199208
BLUISH GRAY,TRIM1#
main73230-60010-03i199001-199208
W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main73230-60010-06i199001-199201
ZIMBABWE SPEC & W(SEPARATE SEAT),SABLE,TRIM4#
main73230-60010-06i199001-199201
SOUTH AFRICA SPEC,SABLE,TRIM4#
main73230-60010-06i199001-199201
SOUTH AFRICA SPEC OR ZIMBABWE SPEC,SABLE,TRIM4#
main73230-60010-06i199001-199208
SABLE,TRIM4#
main73230-60010-06i199001-199208
W(SEPARATE SEAT),SABLE,TRIM4#
main73230-60011-B0i199208-200109
BLUISH GRAY,TRIM1#
main73230-60011-B0i199208-200103
W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main73230-60011-E0i199208-199501
W(SEPARATE SEAT),SABLE,TRIM4#
main73230-60011-E0i199208-199501
SABLE,TRIM4#
main73230-60011-E1i199501-199901
ZIMBABWE SPEC & W(SEPARATE SEAT) OR W(SEPARATE SEAT),OAK,TRIM4#
main73230-60011-E1i199501-199909
OAK,TRIM4#
main73230-60011-E1i199501-199901
W(SEPARATE SEAT),OAK,TRIM4#
main73230-60020-03i199001-199208
ZIMBABWE SPEC & W(BENCH SEAT),BLUISH GRAY,TRIM1#
main73230-60020-06i199001-199208
ZIMBABWE SPEC & W(BENCH SEAT),SABLE,TRIM4#
main73230-60021-B0i199208-199508
ZIMBABWE SPEC & W(BENCH SEAT),BLUISH GRAY,TRIM1#
main73230-60021-E0i199208-199501
ZIMBABWE SPEC & W(BENCH SEAT),SABLE,TRIM4#
main73230-60021-E1i199501-199508
ZIMBABWE SPEC & W(BENCH SEAT),OAK,TRIM4#
main73230-60051-B0i199208-199801
BLUISH GRAY,TRIM1#
main73230-60051-E0i199208-199501
SABLE,TRIM4#
main73230-60051-E1i199909-200612
W(BENCH SEAT),OAK,TRIM4#
main73230-60051-E1i199501-200612
OAK,TRIM4#
main73230-60060-03i199001-199201
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
main73230-60060-06i199001-199201
W(CENTER SEAT BELT),SABLE,TRIM4#
main73230-60110-03i199001-199201
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main73230-60110-06i199001-199201
W(BENCH SEAT),SABLE,TRIM4#
main73230-60190-B0i199208-199801
W(POWER SEAT),BLUISH GRAY,TRIM1#
main73230-60190-E0i199208-199501
W(POWER SEAT),SABLE,TRIM4#
main73230-60190-E1i199501-199801
W(POWER SEAT),OAK,TRIM4#
main73230-60200-B0i199208-199801
W(POWER SEAT),BLUISH GRAY,TRIM1#
main73230-60200-B0i199610-199801
BLUISH GRAY,TRIM1#
main73230-60200-E0i199208-199501
W(POWER SEAT),SABLE,TRIM4#
main73230-60200-E1i199501-199801
W(POWER SEAT),OAK,TRIM4#
main73240-60010-03i199001-199201
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
main73240-60010-06i199001-199201
W(CENTER SEAT BELT),SABLE,TRIM4#
main73240-60040-03i199001-199008
W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main73240-60040-03i199001-199008
BLUISH GRAY,TRIM1#
main73240-60040-06i199001-199008
W(SEPARATE SEAT),SABLE,TRIM4#
main73240-60040-06i199001-199008
SABLE,TRIM4#
main73240-60041-03i199008-199201
BLUISH GRAY,TRIM1#
main73240-60041-03i199008-199201
W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main73240-60041-06i199008-199201
W(SEPARATE SEAT),SABLE,TRIM4#
main73240-60041-06i199008-199201
SABLE,TRIM4#
main73240-60050-03i199001-199208
BLUISH GRAY,TRIM1#
main73240-60050-03i199201-199208
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main73240-60050-06i199201-199208
W(BENCH SEAT),SABLE,TRIM4#
main73240-60050-06i199001-199208
SABLE,TRIM4#
main73240-60051-B0i199208-199501
BLUISH GRAY,TRIM1#
main73240-60051-B0i199208-199801
W(BENCH SEAT),BLUISH GRAY,TRIM1#
main73240-60051-B0i199510-199607
SWING OUT BACK DOOR EDITION(PHILIPPINES),BLUISH GRAY,TRIM1#
main73240-60051-E0i199208-199501
SABLE,TRIM4#
main73240-60051-E0i199208-199501
W(BENCH SEAT),SABLE,TRIM4#
main73240-60051-E1i199501-199801
0AK,TRIM4#
main73240-60051-E1i199501-199801
MALAYSIA SPEC OR W(BENCH SEAT),0AK,TRIM4#
main73240-60051-E1i199501-199801
W(BENCH SEAT),0AK,TRIM4#
main73240-60080-03i199001-199201
W(BENCH SEAT OR CENTER SEAT BELT),BLUISH GRAY,TRIM1#
main73240-60080-03i199001-199201
W(SEPARATE SEAT),BLUISH GRAY,TRIM1#
main73240-60080-03i199001-199201
BLUISH GRAY,TRIM1#
main73240-60080-06i199001-199201
W(SEPARATE SEAT),SABLE,TRIM4#
main73240-60080-06i199001-199201
W(BENCH SEAT OR CENTER SEAT BELT),SABLE,TRIM4#
main73240-60080-06i199001-199201
SABLE,TRIM4#
main73240-60090-03i199001-199008
BLUISH GRAY,TRIM1#
main73240-60090-06i199001-199008
SABLE,TRIM4#
main73240-60091-03i199008-199201
BLUISH GRAY,TRIM1#
main73240-60091-06i199008-199201
SABLE,TRIM4#
main73240-60230-B0i199201-199208
BLUISH GRAY,TRIM1#
main73240-60230-E0i199201-199208
SABLE,TRIM4#
73252COVER, SHOULDER BELT ANCHOR ADJUST, RH
main73252-60010-03i199001-199501
LIGHT GRAY,TRIM1#
main73252-60010-06i199001-199501
LIGHT SABLE,TRIM4#
73253COVER, SHOULDER BELT ANCHOR ADJUST, LH
main73253-60010-03i199001-199501
LIGHT GRAY,TRIM1#
main73253-60010-06i199001-199501
LIGHT SABLE,TRIM4#
8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12120
9011910492
main90119-10492
9163140614
main91631-40614

12 parts on this diagram · 5 diagrams in section

SEAT BELT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
