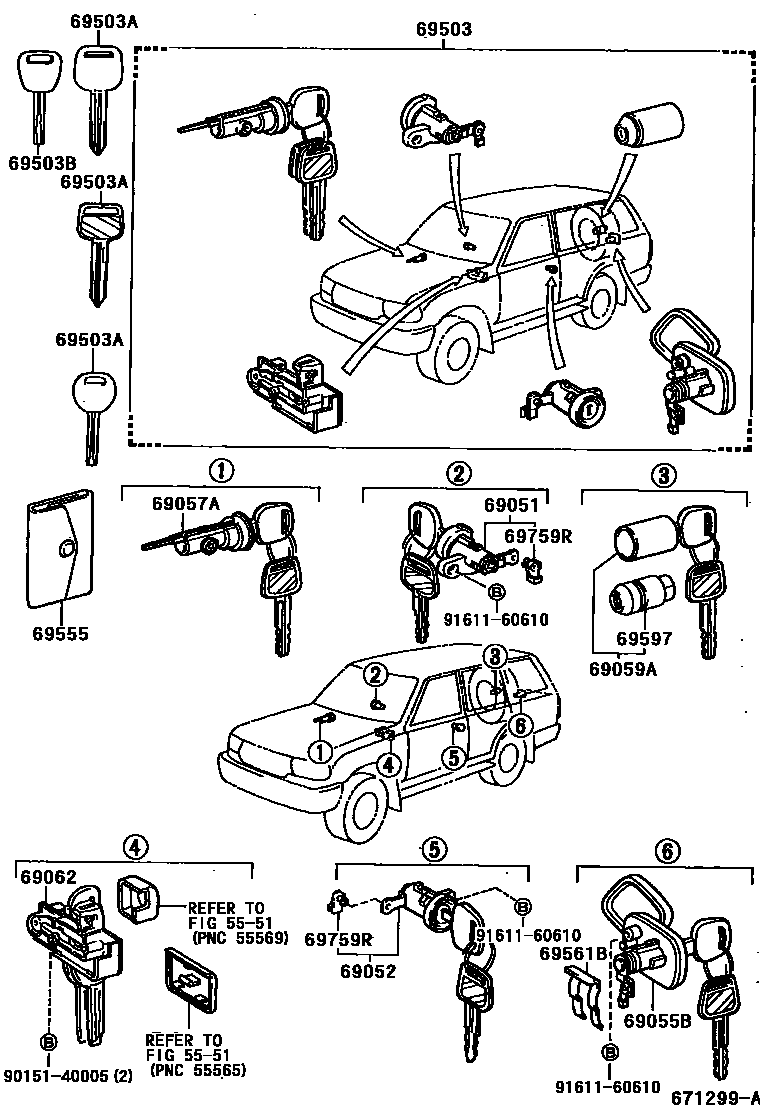

LOCK CYLINDER SET
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-60030iFZJ80..GCC..EFI;FZJ80..GX..GEN..EFI;FZJ80,HDJ80,HZJ80..(GCC,GEN)..(CBR,DSL,TD2)199208-200109
SOUTH AFRICA SPEC
69052CYLINDER & KEY SET, DOOR LOCK, LH
SOUTH AFRICA SPEC
69055BCYLINDER & KEY SET, BACK DOOR LOCK
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
SOUTH AFRICA SPEC
69059ACYLINDER & KEY SET, SPARE WHEEL LOCK
main69059-60010iFZJ80..RHD..STD..CBR;HZJ80..RHD..5F..SOB..GX; HDJ80..LHD;FZJ80..LHD..SOB;HDJ80..RHD..5F..GEN;HZJ80..LUB..GX..GEN;HZJ80..LHD..SOB..GX;FZJ80..LUB..(GCC,GEN);HZJ80..(STD,VX)..(GCC,GEN)199208-199801
W(SPARE WHEEL CARRIER(BACK DOOR))
SOUTH AFRICA SPEC & W(SPARE WHEEL CARRIER(BACK DOOR))
main69059-60080iHDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199801
W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR)
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-60010iFZJ80..GCC..EFI;FZJ80..GX..GEN..EFI;FZJ80,HDJ80,HZJ80..(GCC,GEN)..(CBR,DSL,TD2)199208-200109
SOUTH AFRICA SPEC
69503CYLINDER SET, LOCK
W(SPARE WHEEL CARRIER(BACK DOOR))
W(SPARE WHEEL CARRIER(BACK DOOR))
W(SPARE WHEEL CARRIER(BACK DOOR))
W(SPARE WHEEL CARRIER(BACK DOOR))
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
main69005-60600iFZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LUB..GCC..EFI;FZJ80,HZJ80..LUB..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199801
W(ALUMINUM WHEEL & SPARE WHEEL CARRIER(BACK DOOR)
SWING OUT BACK DOOR EDITION(PHILIPPINES)
69503AKEY, BLANK
MASTER KEY
MASTER KEY,W(*68)
SUB KEY
MASTER KEY
69503BKEY, CUT
MASTER KEY,CARD; MASTER KEY,CARD,W(SPARE WHEEL CARRIER(BACK DOOR))
MASTER KEY
MASTER KEY,CARD
SUB KEY
69555COVER, KEY
69561BRETAINER, BACK DOOR LOCK CYLINDER
69597NUT, SPARE WHEEL LOCK
main69597-35010iHDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199801
W(ALUMINUM WHEEL)
69759RSNAP, FRONT DOOR LOCK CYLINDER
LH
RH
9015140005
main90151-40005
9161160610
main91611-60610
16 parts on this diagram · 6 diagrams in section
