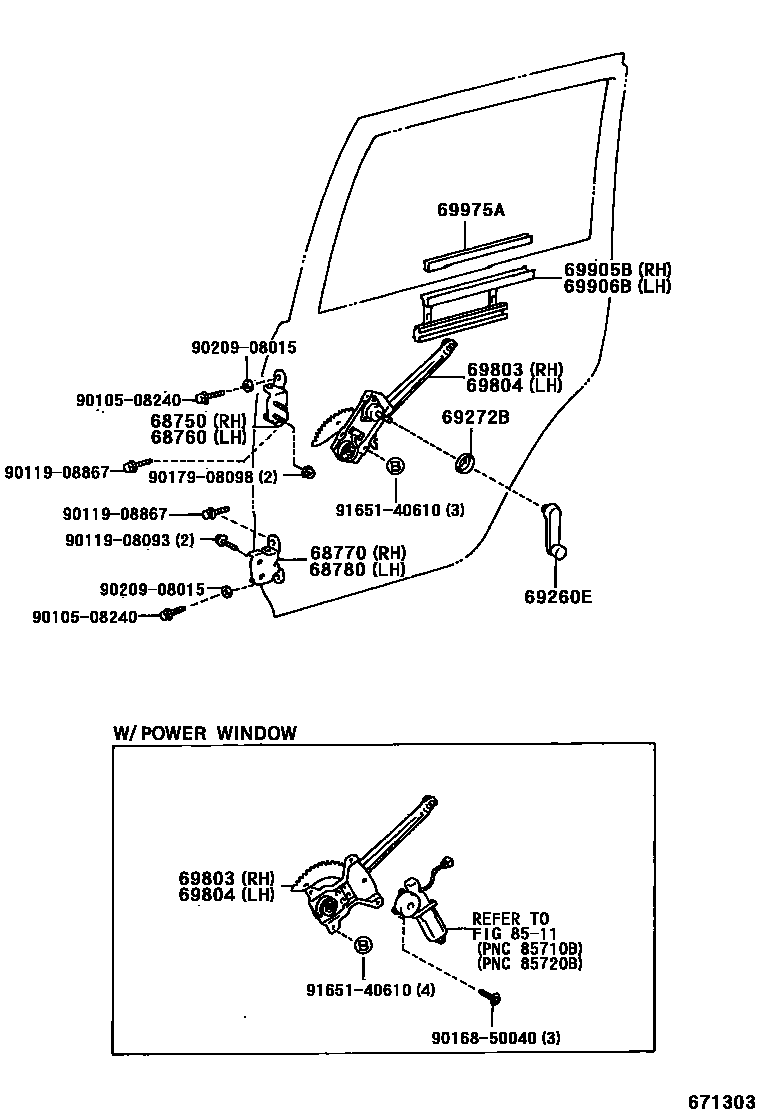

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-60010iFJ80,HDJ80,HZJ80199001-199201

main68750-60030iFJ80,FZJ80,HDJ80,HZJ80199201-199208

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-60010iFJ80,HDJ80,HZJ80199001-199201

main68760-60030iFJ80,FZJ80,HDJ80,HZJ80199201-199208

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iFJ80,HDJ80,HZJ80199001-199201

main68770-35010iFJ80,FZJ80,HDJ80,HZJ80199201-199208

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iFJ80,HDJ80,HZJ80199001-199201

main68780-35010iFJ80,FZJ80,HDJ80,HZJ80199201-199208

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-08×2iFZJ80,HDJ80,HZJ80..GX,STD199208-199308

BLUISH GRAY,TRIM1#

main69260-10040-49×2iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199208

SABLE,TRIM4#

main69260-10040-B1×2iFZJ80,HZJ80..SOB..STD199801-200109

BLUISH GRAY,TRIM1#

main69260-10040-E1×2iFZJ80,HDJ80,HZJ80..GX,STD199501-199603

OAK,TRIM4#

main69260-14030-08×2iHZJ80..RHD..STD..GEN;FJ80,FZJ80..RHD..(GX,STD)..GEN199003-199208

SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#

main69260-14030-58×2iHZJ80..SOB..GX..GEN;FZJ80..RHD..(GX,STD)..CBR199208-199501

SOUTH AFRICA SPEC,SABLE,TRIM4#

main69260-14030-B1×2iFZJ80..RHD..CBR;HZJ80..RHD..5F..SOB..GX199605-199801

SOUTH AFRICA SPEC,BLUISH GRAY,TRIM1#

main69260-14030-E0×2iFZJ80..RHD..CBR;HZJ80..RHD..5F..SOB..GX199501-199801

SOUTH AFRICA SPEC,OAK,TRIM4#

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iFZJ80,HZJ80..SOB..STD199801-199901

NATURAL WHITE,TRIM1#,4#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-60010iFJ80,FZJ80,HDJ80,HZJ80..GX; FJ80,FZJ80,HDJ80,HZJ80..VX199001-199208

W(*PW)

main69830-60010iFJ80,FZJ80,HDJ80,HZJ80..GX,STD199001-199208

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-60010iFJ80,FZJ80,HDJ80,HZJ80..GX; FJ80,FZJ80,HDJ80,HZJ80..VX199001-199208

W(*PW)

main69840-60010iFZJ80,HDJ80..GX;FZJ80..SOB..STD;HZJ80..5F..(GX,STD)199603-199801

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-60010iFZJ80,HDJ80,HZJ80199208-199412

main69905-60011iFZJ80,HDJ80,HZJ80199412-200612

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main69906-60011iFZJ80,HDJ80,HZJ80199412-200612

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main69975-60011×2iFZJ80,HDJ80,HZJ80199412-200612

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508240

main90105-08240

9011908093

main90119-08093

9011908867

main90119-08867

9016850040

main90168-50040

9017908098

main90179-08098

9020908015

main90209-08015

9165140610

main91651-40610

19 parts on this diagram · 1 diagram in section
