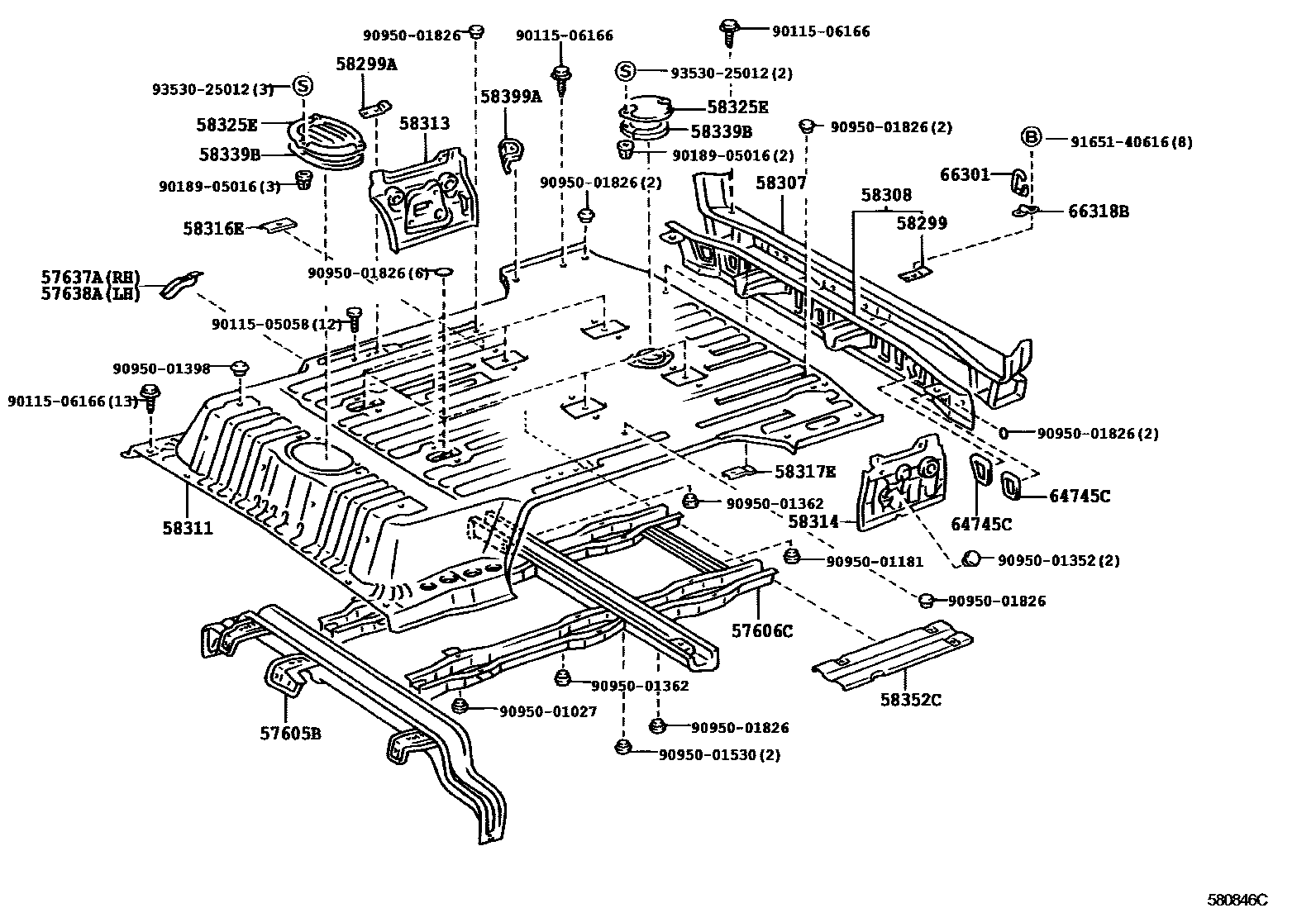

REAR FLOOR PANEL & REAR FLOOR MEMBER
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
W(SUB TANK)
*GIS & W(REAR SEAT BELT (NR 2-2) & *FST)
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
SWING OUT BACK DOOR EDITION(PHILIPPINES)
W(*FST)
main57606-60060iFZJ80,HZJ80..SOB..VX; HDJ80..4FC..GX;HDJ80..4FC..GEN;HDJ80..RHD..GEN;HZJ80..LHD..LUB;FZJ80..LHD..VX..GEN;FZJ80..SOB..GX..GEN;FZJ80..LHD..LUB..GX;FJ80,HZJ80..5F..GX..ARL; HDJ80..5F..GX; HDJ80..LHD..5F;HZJ80..RHD..LUB..GEN199201-199208
W(*AIC); W(CD AUTO CHANGER); W(FRONT SEPARATE SEAT OR AIRCON); W(MOON ROOF OR *AIC)
W(CD AUTO CHANGER)
57637AREINFORCEMENT, REAR FLOOR SIDE, RH
57638AREINFORCEMENT, REAR FLOOR SIDE, LH
58299RETAINER, FLOOR ROPE HOOK
58299ARETAINER, FLOOR ROPE HOOK
58307PANEL SUB-ASSY, BODY LOWER BACK
SWING OUT BACK DOOR EDITION(PHILIPPINES)
W(LIFT UP BACK DOOR & SPARE WHEEL CARRIER W/LOCK); W(SPARE WHEEL CARRIER W/LOCK)
main58307-60121iHDJ80..LHD..LUB;FZJ80..GX..GEN..EFI;HDJ80..RHD..5F..TD2;FZJ80..LUB..GCC..EFI;FZJ80,HZJ80..LUB..(GX,VX)..(GCC,GEN)..(CBR,DSL); HDJ80..RHD..4FC..TD2;FZJ80,HDJ80,HZJ80..LUB..ARL199501-200103
W(SPARE WHEEL CARRIER W/LOCK)
W(SPARE WHEEL CARRIER W/LOCK); W(SPARE WHEEL CARRIER)
main58307-60131iFZJ80..LHD..SOB..STD..GEN; HZJ80..4FC;HZJ80..STD..ARL; HZJ80..5F..SOB..(GX,VX);FZJ80,HDJ80..SOB..(GX,VX)199501-199901
W(SPARE WHEEL CARRIER W/LOCK); W(SPARE WHEEL CARRIER)
58308PANEL SUB-ASSY, BODY LOWER BACK, INNER
main58308-60020iFZJ80..LHD..VX..GEN;HDJ80,HZJ80..VX..GEN; FZJ80..LUB..VX..GCC; FZJ80..VX..ARL;HDJ80,HZJ80..LUB..ARL;FZJ80..LUB..GX..(ARL,GCC); HZJ80..LUB..GX..GEN;FZJ80..LHD..LUB..GX..GEN199208-199501
W(*FST); W(DUAL *AIC) OR W(*FST); W(REAR SEAT(SEPARATED,RECLINING,W/O 3RD SEAT)) OR W(*FST) OR W(DUAL *AIC)
main58308-60080iFZJ80,HZJ80..SOB..GX..GCC; FZJ80,HZJ80..SOB..VX; FZJ80..STD..GCC;HZJ80..SOB..GEN;FZJ80..LHD..SOB..GEN199208-199501
W(REAR SEAT(SEPARATED,RECLINING,W/O 3RD SEAT)) OR W(*FST); W(REAR SEAT(UNITIZED,FIXED,W/O 3RD SEAT)) OR W(*FST)
W(*FST); W(SPARE WHEEL CARRIER) OR W(REAR SEAT(UNITIZED,FIXED,3RD PARALLEL)
58311PAN, REAR FLOOR
main58311-60200iFJ80,FZJ80..LUB..VX..GCC; HZJ80;FZJ80..GX,STD;FJ80,FZJ80..SOB..VX;FJ80..(GX,STD)..GCC;FJ80..(ARL,GEN)..CBR;FZJ80,HDJ80..VX..GEN;FJ80,HDJ80..GX..(EFI,TD2)199001-199208
W(3RD SEAT(PARALLEL OR W/O SEAT))
main58311-60220iFJ80..VX..GEN;FJ80,HZJ80..SOB..(GX,VX); HZJ80..LUB;HDJ80..GEN;FJ80,HDJ80..LUB..GX199001-199201
W(*FST & 3RD SEAT(*FFRS); W(3RD TRANSVERS SEAT)
main58311-60221iHDJ80..5F..VX..ARL;HDJ80..RHD..4FC..VX;FZJ80..LUB..VX..(ARL,GCC); HZJ80..VX;FZJ80..SOB..VX;HDJ80..LHD..LUB;FZJ80..4FC..VX..GEN;FZJ80..VX..GEN..CBR;HDJ80..RHD..5F..GEN199208
W(3RD TRANSVERS SEAT)
*GIS & W(REAR SEAT BELT(NR 2-2) & SUB FUEL TANK)
58313PANEL, REAR FLOOR SIDE, RH
main58313-60030iFJ80,FZJ80,HDJ80,HZJ80; HDJ80..5F..GX; HDJ80..LHD;HZJ80..LUB..GEN;FJ80..(GX,VX)..GEN;FJ80,HZJ80..SOB..GX..GCC199001-199208
W(FRONT SEPARATE SEAT); W(REAR *AIC) & W/O(*MR)
main58313-60050iFJ80,HDJ80,HZJ80..GX..ARL; FJ80,HDJ80..VX;FZJ80,HZJ80..(GX,VX)..(GCC,GEN)199201-199208
W(DUAL & *AIC) & W/O(*MR); W(DUAL *AIC)
W(DUAL *AIC & *MR)
58314PANEL, REAR FLOOR SIDE, LH
main58303-60010iFZJ80,HZJ80..SOB..VX; HDJ80..LHD..5F; HZJ80..LUB;FZJ80..RHD..VX;HDJ80..4FC..GEN;FJ80,FZJ80,HDJ80..LUB..GX; HZJ80..SOB..GX..GEN199201-199208
W(3RD SEAT (PARALLEL OR TRANSVERS)); W(3RD SEAT (TRANSVERS) OR *AIC); W(3RD SEAT (TRANSVERS)); W(CD AUTO CHANGER)
58316ERETAINER, REAR SEAT SET
58317ERETAINER, REAR SEAT, NO.2
58325ECOVER, REAR FLOOR SERVICE HOLE
MAIN TANK
SUB TANK
58339BPACKING, REAR FLOOR SERVICE HOLE
MAIN TANK
SUB TANK
58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2
main58352-60020iHZJ80..LUB;HDJ80..4FC..GEN;FZJ80..GX..GEN..EFI;HZJ80..LHD..SOB..GEN;HZJ80..SOB..(ARL,GCC);FZJ80..STD..(ARL,GCC);FZJ80,HDJ80..LHD..5F..(GX,VX)..(CBR,TD2);FZJ80,HDJ80..(GX,VX)..(ARL,GCC)..(EFI,TD2,TD4)199208-200103
58399ARETAINER, NO.3 SEAT BELT ANCHOR TO FLOOR
main58399-60010iFJ80..VX..EFI;HDJ80,HZJ80..LUB..ARL;FJ80..LUB..GX..(ARL,GCC);FJ80,FZJ80..RHD..LUB..GEN199001-199208
64745CCOVER, LOWER BACK SERVICE HOLE, RH
66301HOOK SUB-ASSY, ROPE
66318BBAND, ROPE HOOK
9011505058
main90115-05058
9011506166
main90115-06166
9018905016
main90189-05016
9095001027
main90950-01027
9095001181
main90950-01181
9095001352
main90950-01352
9095001362
main90950-01362
9095001398
main90950-01398
9095001530
main90950-01530
9095001826
main90950-01826
9165140616
main91651-40616
9353025012
main93530-25012
32 parts on this diagram · 1 diagram in section
