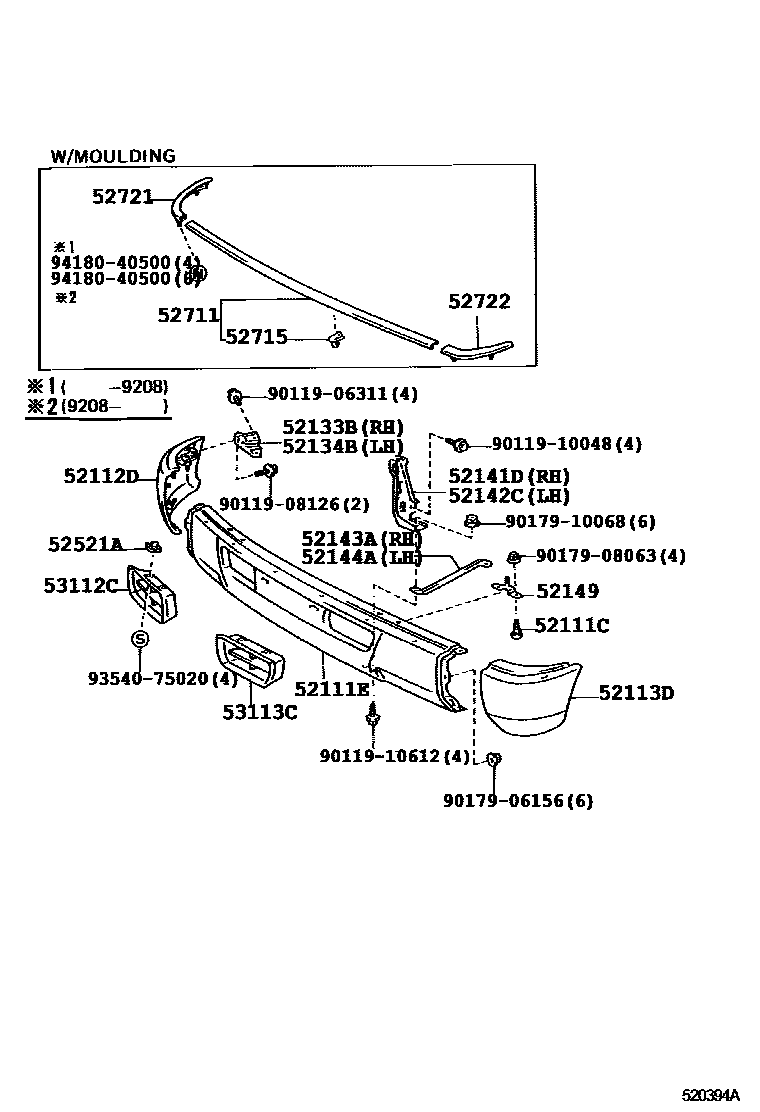

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1W(WINCH) 0005 1W(FRONT BUMPER GUARD) 0006 1W(FRONT BUMPER GUARD)

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08073×4iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main90112-08077-E0×4iFZJ80,HZJ80..VX..GCC199702-199703

LIMITED EDITION(G.C.C.),BEIGE,4M9 ,1B1 ,045

52111EBAR, FRONT BUMPER

main52111-60210iFZJ80,HZJ80..STD199208-199501

main52111-60220iFZJ80,HDJ80,HZJ80..GX199208-199501

main52111-60230iFZJ80,HZJ80..GX..(GCC,GEN)199208-199501

W(WINCH)

main52111-60240iFZJ80,HZJ80..STD..(GCC,GEN)199208-199501

W(WINCH)

main52111-60370iFJ80,FZJ80,HDJ80,HZJ80..VX199001-199208

main52111-60380iFZJ80,HDJ80,HZJ80..VX..(GCC,GEN)199208-199501

W(WINCH)

main52111-60510iFZJ80,HDJ80,HZJ80..GX,STD199501

main52111-60520iFZJ80..(GX,STD)..(GCC,GEN);HZJ80..5F..(GX,STD)..(GCC,GEN)199501-199801

W(ELECTRICAL WINCH)

main52111-60530iFZJ80..LHD..(GX,STD);HZJ80..5F..(GX,STD)..(GCC,GEN)199501-199801

W(*MW)

main52111-60540iFZJ80,HDJ80,HZJ80..VX; FZJ80..VX..GCC..EFI;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..VX..(CBR,DSL,TD2)199501-199801

W(BUMPER GUARD)

main52111-60550iFZJ80,HDJ80,HZJ80..VX..(GCC,GEN)199501-199801

W(ELECTRICAL WINCH)

main52111-60560iHDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..VX199501-199801

W(*MW)

main52111-60600iFZJ80,HZJ80..VX..GCC199702-199703

LIMITED EDITION(G.C.C.) & W(MECHANICAL WINCH)

main52111-60640iFZJ80,HZJ80..VX..GCC199702-199703

LIMITED EDITION(G.C.C.) & W(ELECTRICAL WINCH)

main52111-60913iFZJ80,HZJ80..VX..GCC199702-199703

LIMITED EDITION(G.C.C.) & W(BUMPER GUARD)

52112DEXTENSION, FRONT BUMPER, RH

main52102-60020iFZJ80,HZJ80..STD199208-199501

main52102-60030iFZJ80,HDJ80,HZJ80..GX199208-199501

main52102-60040iHZJ80..GX..GCC; HZJ80..GX..GEN;FJ80,FZJ80..GX..(GCC,GEN)199001-199208

W(WINCH)

main52102-60050iFZJ80,HZJ80..STD..(GCC,GEN)199208-199501

W(WINCH)

main52102-60070iFJ80,FZJ80,HDJ80,HZJ80..VX199001-199208

main52102-60080iFZJ80,HDJ80,HZJ80..VX..(GCC,GEN)199208-199501

W(WINCH)

main52102-60100iFZJ80,HDJ80,HZJ80..GX199208-199501

W(*OF)

main52102-60110iFZJ80,HDJ80,HZJ80..VX199208-199501

W(*OF)

main52102-60120iFZJ80,HZJ80..GX..(GCC,GEN)199208-199501

W(WINCH & *OF)

main52102-60130iFZJ80,HDJ80,HZJ80..VX..(GCC,GEN)199208-199306

W(WINCH & *OF)

main52102-60160iFZJ80,HDJ80,HZJ80..VX..(GCC,GEN)199306-199308

W(WINCH & *OF)

main52102-60180iFZJ80,HDJ80,HZJ80..GX,STD199501

main52102-60190iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..VX..(CBR,DSL,TD4)199501-199801

main52102-60200iFZJ80..5F..VX..GEN..EFI199711

main52102-60210iHDJ80..RHD..4FC..TD2199610-199801

52113DEXTENSION, FRONT BUMPER, LH

main52103-60020iFZJ80,HZJ80..STD199208-199501

main52103-60030iFZJ80,HDJ80,HZJ80..GX199208-199501

main52103-60040iHZJ80..GX..GCC; HZJ80..GX..GEN;FJ80,FZJ80..GX..(GCC,GEN)199001-199208

W(WINCH)

main52103-60050iFZJ80,HZJ80..STD..(GCC,GEN)199208-199501

W(WINCH)

main52103-60070iFJ80,FZJ80,HDJ80,HZJ80..VX199001-199208

main52103-60080iFZJ80,HDJ80,HZJ80..VX..(GCC,GEN)199208-199501

W(WINCH)

main52103-60100iFZJ80,HDJ80,HZJ80..GX199208-199501

W(*OF)

main52103-60110iFZJ80,HDJ80,HZJ80..VX199208-199501

W(*OF)

main52103-60120iFZJ80,HZJ80..GX..(GCC,GEN)199208-199501

W(WINCH & *OF)

main52103-60130iFZJ80,HDJ80,HZJ80..VX..(GCC,GEN)199208-199306

W(WINCH & *OF)

main52103-60160iFZJ80,HDJ80,HZJ80..VX..(GCC,GEN)199306-199308

W(WINCH & *OF)

main52103-60180iFZJ80,HDJ80,HZJ80..GX,STD199501

main52103-60190iHDJ80..LHD;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..VX..(CBR,DSL,TD4)199501-199801

main52103-60200iFZJ80..5F..VX..GEN..EFI199711

main52103-60210iHDJ80..RHD..4FC..TD2199610-199801

52133BBRACKET, FRONT BUMPER EXTENSION MOUNTING, RH

main52061-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199204

main52133-60031iFJ80,FZJ80,HDJ80,HZJ80199204-199206

52134BBRACKET, FRONT BUMPER EXTENSION MOUNTING, LH

main52062-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199204

main52134-60031iFJ80,FZJ80,HDJ80,HZJ80199204-199206

52141DSTAY, FRONT BUMPER, RH

main52141-60060iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main52141-60070iFZJ80,HDJ80,HZJ80; HDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199801

W(BUMPER GUARD)

main52141-60080iFZJ80,HDJ80..GCC,GEN;HZJ80..5F..(GCC,GEN)199501-199801

W(WINCH)

52142CSTAY, FRONT BUMPER, LH

main52142-60050iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main52142-60060iFZJ80,HDJ80,HZJ80; HDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199801

W(BUMPER GUARD)

main52142-60070iFZJ80,HDJ80..GCC,GEN;HZJ80..5F..(GCC,GEN)199501-199801

W(WINCH)

52143AARM, FRONT BUMPER, INNER RH

main52143-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main52143-60040iFZJ80,HDJ80,HZJ80199501-199801

52144AARM, FRONT BUMPER, INNER LH

main52143-60040iFZJ80,HDJ80,HZJ80199501-199801

main52144-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

52149BRACKET, FRONT BUMPER, INNER

main52147-60010iFZJ80,HZJ80..(GX,VX)..GCC199208-199308

W(BUMPER GUARD),RH

main52147-60030×2iHDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199501-199801

W(ELECTRICAL WINCH) OR W(BUMPER GUARD)

main52148-60010iFZJ80,HZJ80..(GX,VX)..GCC199208-199308

W(BUMPER GUARD),LH

main52149-60020×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main52149-60030×2iFZJ80,HDJ80,HZJ80199501-199801

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-04018×4iFJ80,FZJ80,HDJ80,HZJ80199001-199208

52711MOULDING, FRONT BUMPER

main52711-60010iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

main52711-60020iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*OF)

52715RETAINER, FRONT BUMPER MOULDING, NO.1

main52715-60010×6iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

52721MOULDING, FRONT BUMPER EXTENSION, RH

main52721-60010iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

main52721-60020iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*OF)

52722MOULDING, FRONT BUMPER EXTENSION, LH

main52722-60010iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

main52722-60020iFZJ80,HDJ80,HZJ80..GX,VX199208-199501

W(*OF)

53112CGRILLE, RADIATOR, LOWER RH

main53112-60020iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main53112-60030iFZJ80,HDJ80,HZJ80199501-199801

53113CGRILLE, RADIATOR, LOWER LH

main53113-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main53113-60020iFZJ80,HDJ80,HZJ80199501-199801

9011906311

main90119-06311

9011908126

main90119-08126

9011910048

main90119-10048

9011910612

main90119-10612

9017906156

main90179-06156

9017908063

main90179-08063

9017910068

main90179-10068

9354075020

main93540-75020

9418040500

main94180-40500

27 parts on this diagram · 6 diagrams in section
