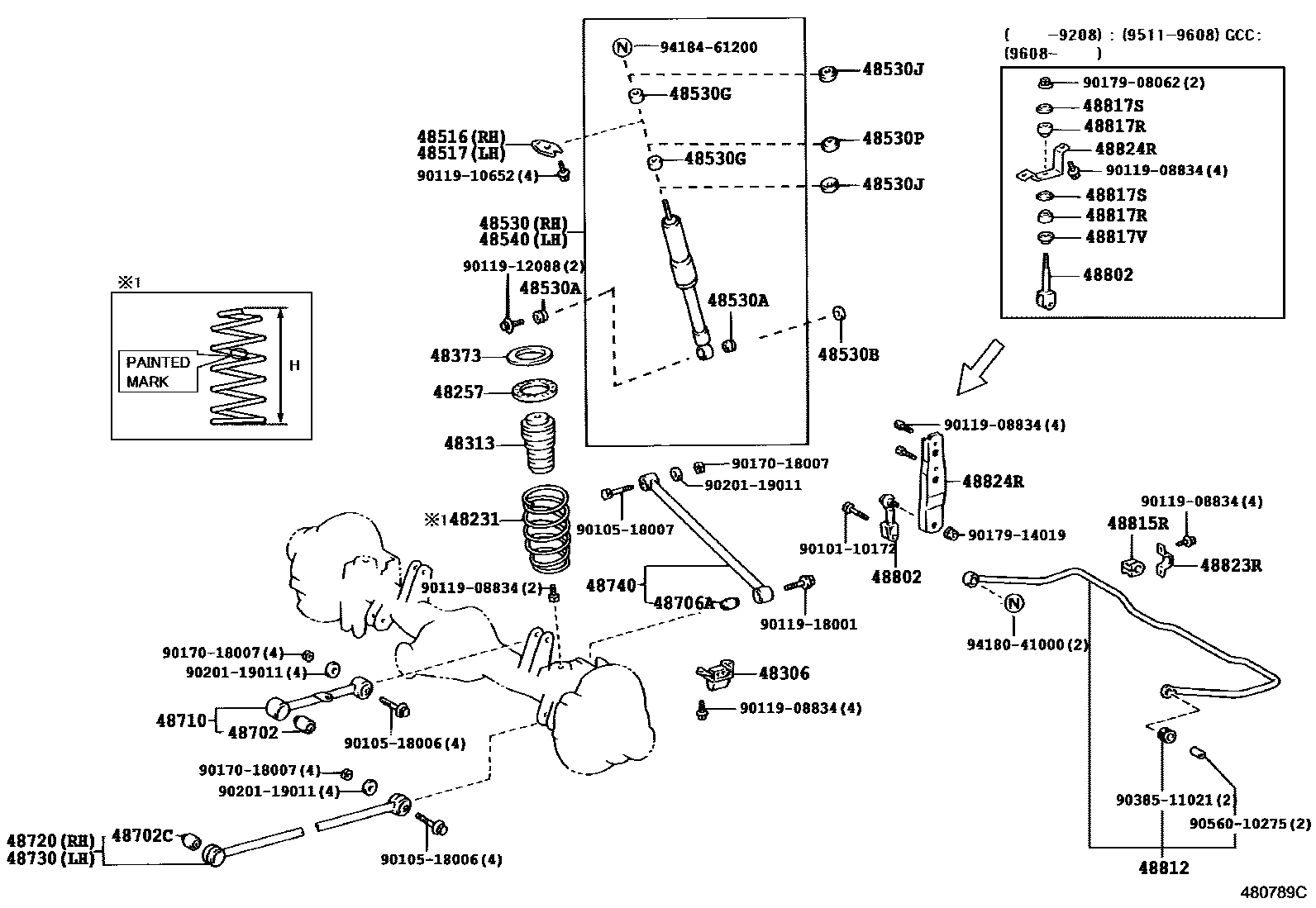

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
VENEZUELA CKD SPEC & W(6J DISC WHEEL)
VENEZUELA CKD SPEC & W(7JJX15 DISC WHEEL)
H=412,RH
H=419,RH
main48231-60240iFJ80..GX..ARL..CBR; FZJ80..GCC;HDJ80..5F..GX;FJ80..LUB..GCC;FJ80..4FC..SOB..VX;FJ80..5F..SOB..GCC;FJ80,HZJ80..GX..ARL..(DSL,EFI)199107-199208
H=440.5,LH; W(FUEL SUB TANK)
H=453,RH
H=459.5; W(FUEL SUB TANK)
main48231-60270iFJ80..5F..GX..GCC;FJ80..4FC..VX..GCC; FJ80..LUB..GCC;FJ80..5F..SOB..GCC;FJ80..4FC..SOB..VX199011-199012
H=464.0,LH; H=464.0,RH
H=476.0
H=487.0
H=498
main48231-60340iFJ80..4FC..GX..GCC;FJ80,HZJ80..5F..GCC;FZJ80..(GX,STD)..GCC; FZJ80..GCC;FJ80..4FC..GCC;FJ80..5F..(GX,STD)..GCC199011-199208
H=426,LH; H=426,RH
main48231-60400iFJ80..LUB..GCC;FZJ80,HZJ80..GCC;FJ80..5F..SOB..GCC;FJ80..4FC..SOB..VX; FJ80..STD..GCC;FJ80..4FC..VX..GCC;FZJ80..(STD,VX)..GCC199011-199208
H=433,LH; H=433,RH
main48231-60460iHDJ80..5F..GX;FZJ80..RHD..STD;FJ80,HZJ80..GX..ARL; HDJ80..LHD..5F;FZJ80..LHD..STD..GEN;HZJ80..LHD..5F..(GX,STD)..GEN199201-199208
H=448.5; H=448.5,RH
W(FUEL SUB TANK)
main48231-60480iFZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..5F..(GX,STD)..GEN;FZJ80,HDJ80..LHD..5F..(GX,VX)..GEN; FZJ80..RHD; HDJ80..5F..GEN;FZJ80..LHD..GEN;HZJ80..LHD..5F..(GX,STD)199201-199208
H=460.5; H=460.5,LH; H=460.5,RH
main48231-60490iFJ80..SOB..GX..GCC;FJ80..(STD,VX)..GCC;FJ80,HZJ80..LHD..STD..GEN; HDJ80,HZJ80..LHD..(4FC,5F)..GEN; HZJ80..RHD..GEN;FJ80..RHD..STD..GEN199103-199201
H=482.5; H=482.5,RH; RH
H=465,RH; W(FUEL SUB TANK),RH
main48231-60510×2iFJ80..SOB..GX..GCC;FJ80..(STD,VX)..GCC;FJ80,HZJ80..LHD..STD..GEN;HDJ80,HZJ80..LHD..(4FC,5F); HZJ80..RHD..GX..GEN199103-199201
H=487.5; H=487.5,LH
main48231-60520iFJ80,HZJ80..LHD..STD..GEN; FJ80..LHD..5F..GX;FJ80..4F..SOB..GX;FJ80..5F..VX..GEN;FJ80..4FC..SOB..VX;FJ80..(4F,4FC)..LUB..CBR;HDJ80,HZJ80..LHD..(GX,VX)199011-199012
H=471,LH; H=471,RH
H=493,RH
H=478,LH; H=478,RH
main48231-60550iFJ80,HZJ80..LHD..STD; FJ80..LUB..GX..GCC;FJ80,HDJ80,HZJ80..LHD..(GX,VX)..GEN199012-199201
H=500,LH; H=500,RH
H=506,LH
main48231-60630iHZJ80..GCC;FJ80,FZJ80..GX..GCC; HZJ80..GCC;FJ80..4FC..GX..GCC;FJ80,FZJ80..5F..VX..GCC199011-199208
H=436.5,LH; H=436.5,RH
H=445; W(FUEL SUB TANK)
H=412;ORANGE PAINTED,RH
H=417.5;YELLOW PAINTED,LH; H=417.5;YELLOW PAINTED,RH
main48231-60830iFZJ80..5F..GCC;FZJ80..4FC..VX..GCC;HZJ80..LHD..SOB..GX..GEN; HZJ80..GCC199208-199801
H=428;PINK PAINTED,LH; H=428;PINK PAINTED,RH
PINK PAINTED;H=433,LH; PINK PAINTED;H=433,RH
ORANGE PAINTED;H=438,LH; W(FUEL SUB TANK)
H=443.5;WHITE PAINTED,LH
main48231-60870iFZJ80,HZJ80..(GX,VX)..GCC; FZJ80..VX..GCC;HDJ80..LHD..5F;FZJ80..LHD..STD..GEN;HZJ80..LHD..(GX,STD)..GEN199501-199510
H=448.5;WHITE PAINTED,LH; H=448.5;WHITE PAINTED,RH
main48231-60880iHDJ80..RHD..5F..GEN; HZJ80..LHD..LUB;HDJ80..RHD..5F..GEN;FZJ80..4FC..VX..GEN;FZJ80..LHD..(GX,STD)..EFI;FZJ80,HZJ80..LHD..SOB..STD..GEN;FZJ80,HDJ80..LHD..(GX,VX)..GEN..(CBR,TD2)199208-199901
H=453.5; H=453.5,RH
main48231-60890iHZJ80..LHD..GEN;FZJ80..4FC..VX..GEN;FZJ80..LHD..SOB..GEN;FZJ80..LHD..(GX,STD)..EFI;FZJ80,HDJ80..LHD..VX..GEN..(CBR,TD2)199510-199901
H=459,LH
main48231-6A010iFZJ80..SOB..GX..GEN; HDJ80..GEN;HZJ80..LHD..GEN;FZJ80..LHD..SOB..STD..GEN;FZJ80..LHD..LUB..(GX,VX)..GEN199307-199502
H=464.0,LH; LH
main48231-6A020iFZJ80..LHD..GX..GEN..CBR; HDJ80..GEN;HZJ80..LHD..GEN;FZJ80..GX..GEN..EFI;FZJ80..LHD..VX..GEN;FZJ80..LHD..SOB..STD..GEN199208-199311
H=469,LH; W(FUEL SUB TANK),LH
LH
48257INSULATOR, REAR COIL SPRING
48306BUMPER SUB-ASSY, REAR SPRING
W(5.50FX15 DISC WHEEL); W(5.50FX15 OR 7JJX15 DISC WHEEL)
48313SPRING, HOLLOW(FOR REAR SUSPENSION)
W(WINCH & 7JJX15 DISC WHEEL)
W(5.50FX15 DISC WHEEL); W(SAND TIRE OR 31X10.50R15LT TIRE)
W(WINCH & 5.50FX15 DISC WHEEL); W(WINCH & 5.50FX15 DISC WHEEL) OR W(WINCH & 7JJX15 DISC WHEEL)
48373SPACER, REAR SPRING
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
VENEZUELA CKD SPEC & W(6J DISC WHEEL)
W(7JJX15 DISC WHEEL)
VENEZUELA CKD SPEC & W(7JJX15 DISC WHEEL)
W(5.50FX15 DISC WHEEL); W(5.50FX15 OR 7JJX15 DISC WHEEL)
W(5.50FX15 DISC WHEEL); W(5.50FX15 OR 7JJX15 DISC WHEEL)
MARK 48531-60431
main48531-69535iFZJ80..STD..EFI;HDJ80..RHD..4FC..TD2;FZJ80,HDJ80,HZJ80..ARL;FZJ80..5F..VX..GEN..EFI199604
MARK 48531-60540
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
VENEZUELA CKD SPEC & W(6J DISC WHEEL)
W(7JJX15 DISC WHEEL)
VENEZUELA CKD SPEC & W(7JJX15 DISC WHEEL)
W(5.50FX15 DISC WHEEL); W(5.50FX15 OR 7JJX15 DISC WHEEL)
W(5.50FX15 DISC WHEEL); W(5.50FX15 OR 7JJX15 DISC WHEEL)
MARK 48531-60431
main48531-69535iFZJ80..STD..EFI;HDJ80..RHD..4FC..TD2;FZJ80,HDJ80,HZJ80..ARL;FZJ80..5F..VX..GEN..EFI199604
MARK 48531-60540
48702BUSH SUB-ASSY, UPPER CONTROL ARM
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
48706ABUSH SUB-ASSY, REAR LATERAL CONTROL ROD
48710ARM ASSY, UPPER CONTROL
W(ABS)
W(ABS)
48720ARM ASSY, LOWER CONTROL, RH
main48720-60011iHDJ80,HZJ80;FZJ80..SOB..STD;FZJ80..(GX,VX)..CBR;FZJ80..(ARL,GCC)..EFI;FZJ80..4FC..(GX,VX)..GEN199709
main48720-60012iHDJ80..RHD..TD2;FZJ80..VX..GEN..EFI;HZJ80..RHD..SOB..GEN;FZJ80..LHD..SOB..STD..GEN; HDJ80..TD4;HDJ80..LHD;FZJ80..STD..GCC;FZJ80..SOB..(GX,VX);FZJ80..4FC..LUB..GX;FZJ80..RHD..(STD,VX);FZJ80,HZJ80..5F..LUB;HZJ80..LHD..SOB..GEN;HZJ80..SOB..(ARL,GCC);FZJ80..4FC..LUB..VX..GCC199511-199709
48730ARM ASSY, LOWER CONTROL, LH
main48720-60012iHDJ80..RHD..TD2;FZJ80..VX..GEN..EFI;HZJ80..RHD..SOB..GEN;FZJ80..LHD..SOB..STD..GEN; HDJ80..TD4;HDJ80..LHD;FZJ80..STD..GCC;FZJ80..SOB..(GX,VX);FZJ80..4FC..LUB..GX;FZJ80..RHD..(STD,VX);FZJ80,HZJ80..5F..LUB;HZJ80..LHD..SOB..GEN;HZJ80..SOB..(ARL,GCC);FZJ80..4FC..LUB..VX..GCC199511-199709
48740ROD ASSY, REAR LATERAL CONTROL
48802LINK SUB-ASSY, STABILIZER
48812BAR, STABILIZER, REAR
VENEZUELA CKD SPEC & 31X10.5 OR 15LT TIRE
48815RBUSH, STABILIZER(FOR REAR)
VENEZUELA CKD SPEC & W(6J DISC WHEEL)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
main90948-02126×4iFZJ80..ARL;HZJ80..LHD..STD;HDJ80,HZJ80..LHD..LUB;FZJ80..4FC..(GX,VX)..GEN;HDJ80,HZJ80..RHD..5F..(DSL,TD2);FZJ80,HDJ80..(ARL,GEN)..(CBR,TD4)199608
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
main90948-02127×2iFZJ80..GCC;FZJ80..STD..EFI;FZJ80..5F..VX..GEN..EFI;HDJ80,HZJ80..RHD..4FC..GEN;HDJ80,HZJ80..LHD..SOB..(GX,VX)199511
48823RCOVER, STABILIZER LINK(FOR REAR)
VENEZUELA CKD SPEC
48824RBRACKET, STABILIZER(FOR REAR)
9010110172
main90101-10172
9010518006
main90105-18006
9010518007
main90105-18007
9011908834
main90119-08834
9011910652
main90119-10652
9011912088
main90119-12088
9011918001
main90119-18001
9017018007
main90170-18007
9017908062
main90179-08062
9017914019
main90179-14019
9020119011
main90201-19011
9038511021
main90385-11021
9056010275
main90560-10275
9418041000
main94180-41000
9418461200
main94184-61200
44 parts on this diagram · 1 diagram in section
