BRAKE BOOSTER & VACUUM TUBE

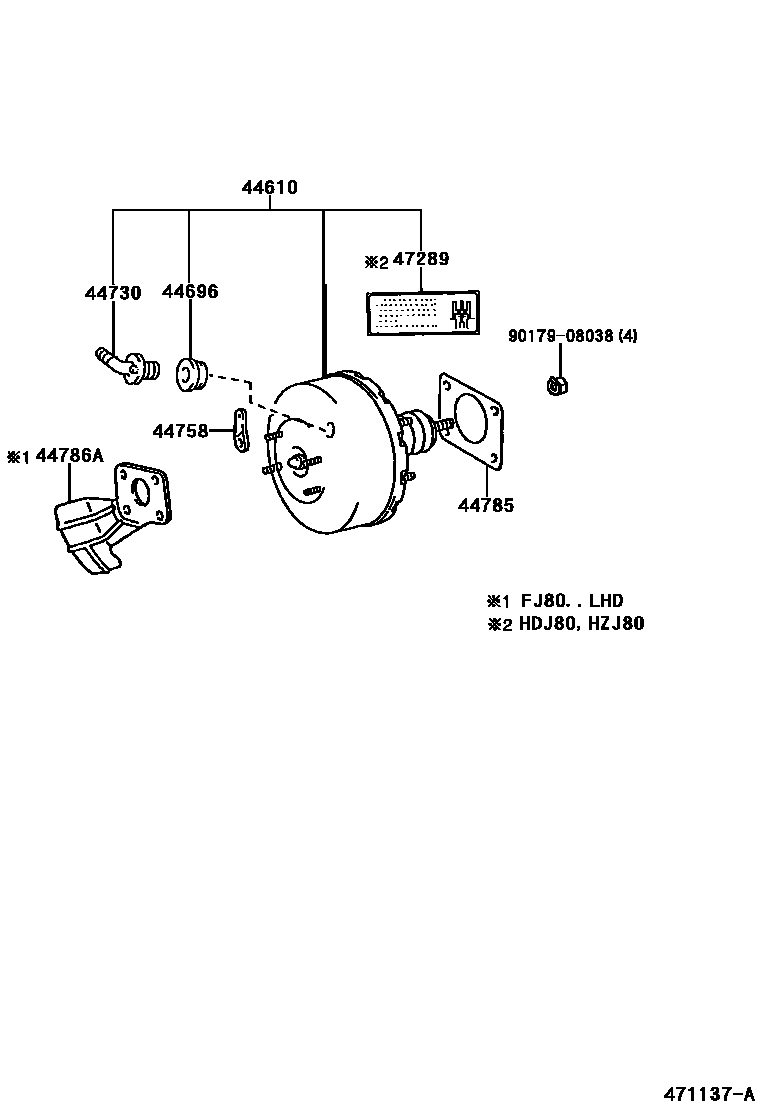

Parts diagram

44610BOOSTER ASSY, BRAKE

main44610-60560i199001-199208

main44610-60570i199001-199208

main44610-60580i199001-199208

main44610-60750i199201-199208

main44610-60760i199208-199308

main44610-60761i199308-199501

main44610-60762i199501-199505

main44610-60763i199505-199801

main44610-60770i199208-199308

main44610-60780i199208-199308

main44610-60781i199308-199501

main44610-60782i199501-199505

main44610-60783i199505-199801

main44610-60790i199208-199308

main44610-60791i199308-199505

main44610-60792i199505

main44610-60801i199308-199501

main44610-60802i199501-199505

main44610-60803i199505-200103

main44610-60820i199208-199308

main44610-60821i199308-199505

main44610-60822i199505-200109

44696GROMMET, CHECK VALVE

main90480-24015i199810

main90480-24439i199208-200109

main90480-24517i199208-199810

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050i199001-199208

main44730-14060i199208-199810

main44730-28010i199810

main44730-30040i199208-200109

main44730-60050i199001-199208

44758BRACKET, VACUUM CHECK VALVE

main44758-35100i199208-200109

main44758-60050i199001-199208

main44758-60060i199208

main44758-60080i199501-199801

44785GASKET, BRAKE BOOSTER

main44785-35020i199001-199208

44786AINSULATOR, BRAKE BOOSTER HEAT

main44786-60080i199001-199201

47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION

main47289-60010i199208-200103

9017908038

main90179-08038

8 parts on this diagram · 5 diagrams in section
