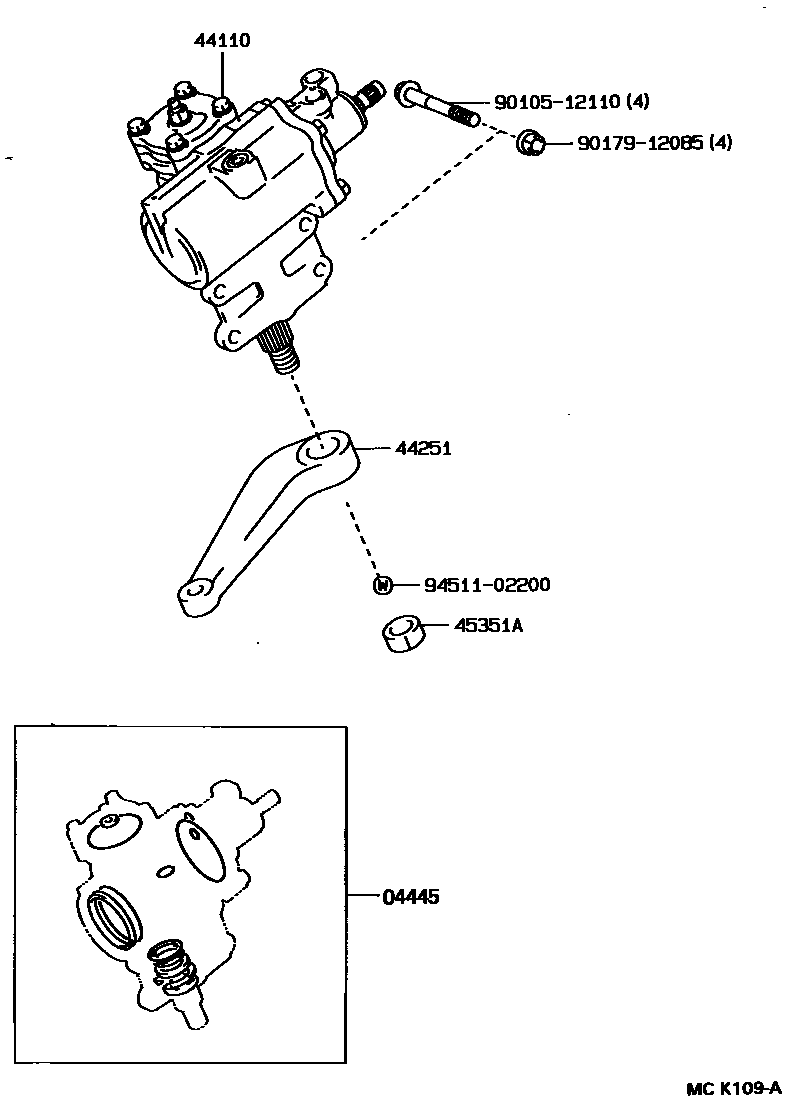

FRONT STEERING GEAR & LINK

0001 1W(POWER STEEIRNG) 0002 1W(PROGRESSIVE POWER STEERING)0003 1W(POWER STEEIRNG) 0004 1W(POWER STEEIRNG) 0005 1W/O(POWER STEEIRNG) 0006 1W/O(POWER STEEIRNG) 0007 1W(PROGRESSIVE POWER STEERING)0008 1W(POWER STEEIRNG) 0009 1 0010 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-60050iFZJ80,HDJ80,HZJ80199208

44110GEAR ASSY, POWER STEERING

main44110-60200iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

sub44110-60202

sub45411-60390

main44110-60201iHDJ80,HZJ80..RHD..(STD,VX)..GEN199208-200103

sub44110-60202

sub45411-60350

main44110-60210iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

sub45411-60400

main44110-60211iFZJ80..LHD..SOB..STD..GEN199208-200109

main44110-60212iFZJ80200502

main44110-60220iHDJ80..VX..ARL199208-199501

W(PROGRESSIVE POWER STEERING)

sub44110-60410

sub45411-60390

44251ARM, PITMAN

main45411-60190iFJ80,FZJ80,HDJ80,HZJ80..LHD199001-199208

main45411-60191iFZJ80..STD..GCC;FZJ80..GCC..EFI;HDJ80,HZJ80..LHD;FZJ80..GX..GEN..EFI;FZJ80..LHD..(GX,VX)..CBR199501-199801

main45411-60200iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199208

main45411-60201iHDJ80,HZJ80..RHD..(STD,VX)..GEN199501-200103

main45411-60360iFZJ80200502

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iHDJ80,HZJ80..RHD..(STD,VX)..GEN199208-200103

9010512110

main90105-12110

9017912085

main90179-12085

9451102200

main94511-02200

7 parts on this diagram · 10 diagrams in section
