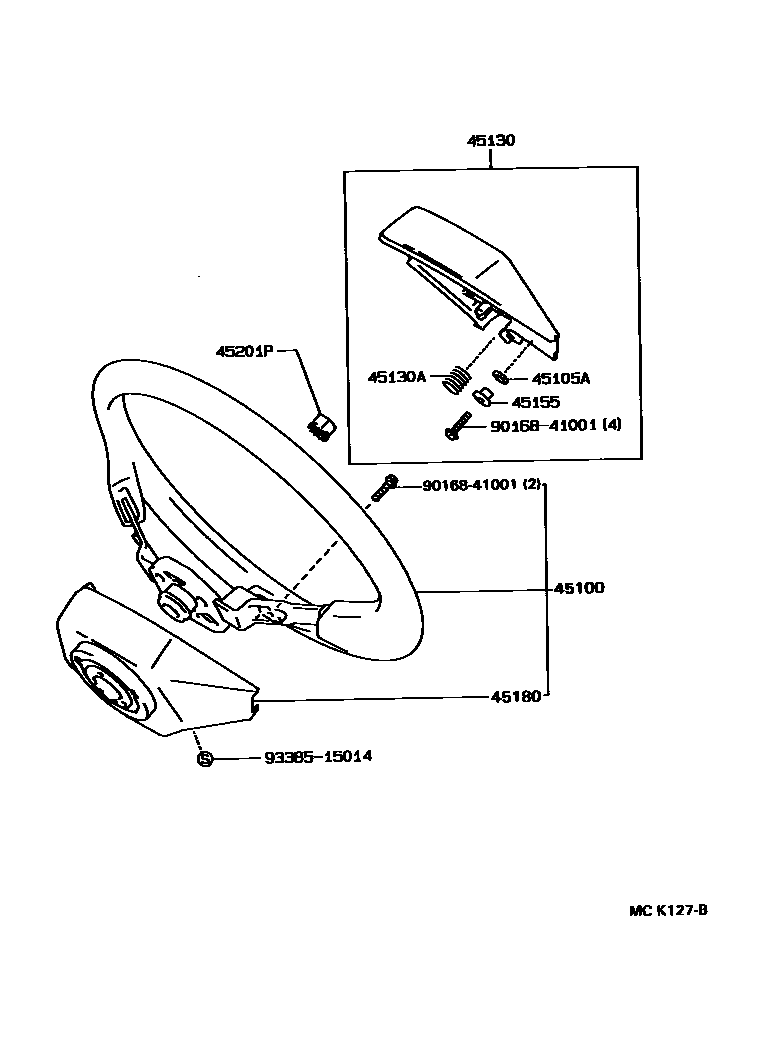

STEERING WHEEL
45100WHEEL ASSY, STEERING
3SPOKE,POLYPROPYLENE,BLACK,TRIM1#,4#
3SPOKE,POLYPROPYLENE,BLUEISH GRAY,TRIM1#
main45100-60160-E0iFZJ80..LUB..STD;FZJ80..RHD..STD;HZJ80..LHD..STD;FZJ80,HZJ80..STD..(ARL,GCC)199501-199909
3SPOKE,POLYPROPYLENE,OAK,TRIM4#
main45100-60170-01iFZJ80,HZJ80..RHD..STD..(DSL,EFI); HDJ80..GX;FZJ80..4FC..GX;FZJ80,HZJ80..5F..(GX,VX);FZJ80,HDJ80..VX..(GCC,GEN)..(EFI,TD2)199208-199501
3-SPOKE,URETHANE,BLACK,TRIM1#,4#; 3-SPOKE,URETHANE,URETHANE,BLACK,TRIM1#,4#
main45100-60170-B0iHDJ80..LHD;FZJ80..VX..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HDJ80..GX..(EFI,TD4);FZJ80,HZJ80..(GX,VX)..(CBR,DSL)199501-200103
3-SPOKE,URETHANE,BLUEISH GRAY,TRIM1#
3-SPOKE,URETHANE,OAK,TRIM4#; 3-SPOKE,URETHANE,URETHANE,OAK,TRIM4#
3-SPOKE,LEATHER,BLACK,TRIM1#,4#
main45100-60181-B0iHDJ80..LHD..LUB;FZJ80..4FC..VX..GEN;FZJ80..VX..GCC..EFI;FZJ80,HZJ80..VX..(CBR,DSL)199501-199909
3-SPOKE,LEATHER,INTERIOR PACKAGE,BLUEISH GRAY,TRIM1#
3-SPOKE,LEATHER,OAK,TRIM4#
4-SPOKE,URETHANE,W(*80),BLUEISH GRAY,TRIM1#
4-SPOKE,URETHANE,W(*80),OAK,TRIM4#
4-SPOKE,URETHANE,W(*80 & *CRC),BLUEISH GRAY,TRIM1#
4-SPOKE,URETHANE,W(*80 & *CRC),OAK,TRIM4#
4-SPOKE,LEATHER
4-SPOKE,LEATHER,BLUEISH GRAY,TRIM1#
4-SPOKE,LEATHER,OAK,TRIM4#
4-SPOKE,LEATHER,BLUEISH GRAY,TRIM1#
4-SPOKE,LEATHER,INTERIOR PACKAGE & W(*80 & *CRC),BLUEISH GRAY,TRIM1#; 4-SPOKE,LEATHER,W(*80 & *CRC),BLUEISH GRAY,TRIM1#
4-SPOKE,LEATHER,INTERIOR PACKAGE & W(*80 & *CRC),OAK,TRIM4#; 4-SPOKE,LEATHER,W(*80 & *CRC),OAK,TRIM4#
4-SPOKE,URETHANE,OAK,TRIM4#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105ACUSHION(FOR HORN BUTTON CONTACT PLATE)
MALAYSIA CKD SPEC; URETHANE
45130BUTTON ASSY, HORN
main45130-50110-B1iHDJ80..GX;HZJ80..ARL,GCC;FZJ80..4FC..GX..ARL;FZJ80..5F..(GX,STD)..(ARL,GCC)199608-199801
W(*80),BLUEISH GRAY,TRIM1#
W(*80),OAK,TRIM4#
BLACK,TRIM1#,4#
BLUEISH GRAY,TRIM1#
main45130-60151-E0iFZJ80..LUB..STD;FZJ80..RHD..STD;HZJ80..LHD..STD;FZJ80,HZJ80..STD..(ARL,GCC)199501-199909
OAK,TRIM4#
MALAYSIA CKD SPEC,BLACK,TRIM1#,4#; URETHANE,BLACK,TRIM1#,4#
BLUEISH GRAY,TRIM1#; URETHANE,BLUEISH GRAY,TRIM1#
OAK,TRIM4#; URETHANE,OAK,TRIM4#
W(*80),OAK,TRIM4#
OAK,TRIM4#
45130ASPRING, COMPRESSION(FOR HORN BUTTON)
45155SPACER, HORN BUTTON CONTACT PLATE
45180COVER SUB-ASSY, STEERING WHEEL
BLACK,TRIM1#,4#
BLUEISH GRAY,TRIM1#
OAK,TRIM4#
BLACK,TRIM1#,4#; URETHANE,BLACK,TRIM1#,4#
BLUEISH GRAY,TRIM1#
MALAYSIA CKD SPEC,OAK,TRIM4#; URETHANE,OAK,TRIM4#
45201PNUT, STEERING WHEEL SET
9016841001
main90168-41001
9338515014
main93385-15014
10 parts on this diagram · 3 diagrams in section
