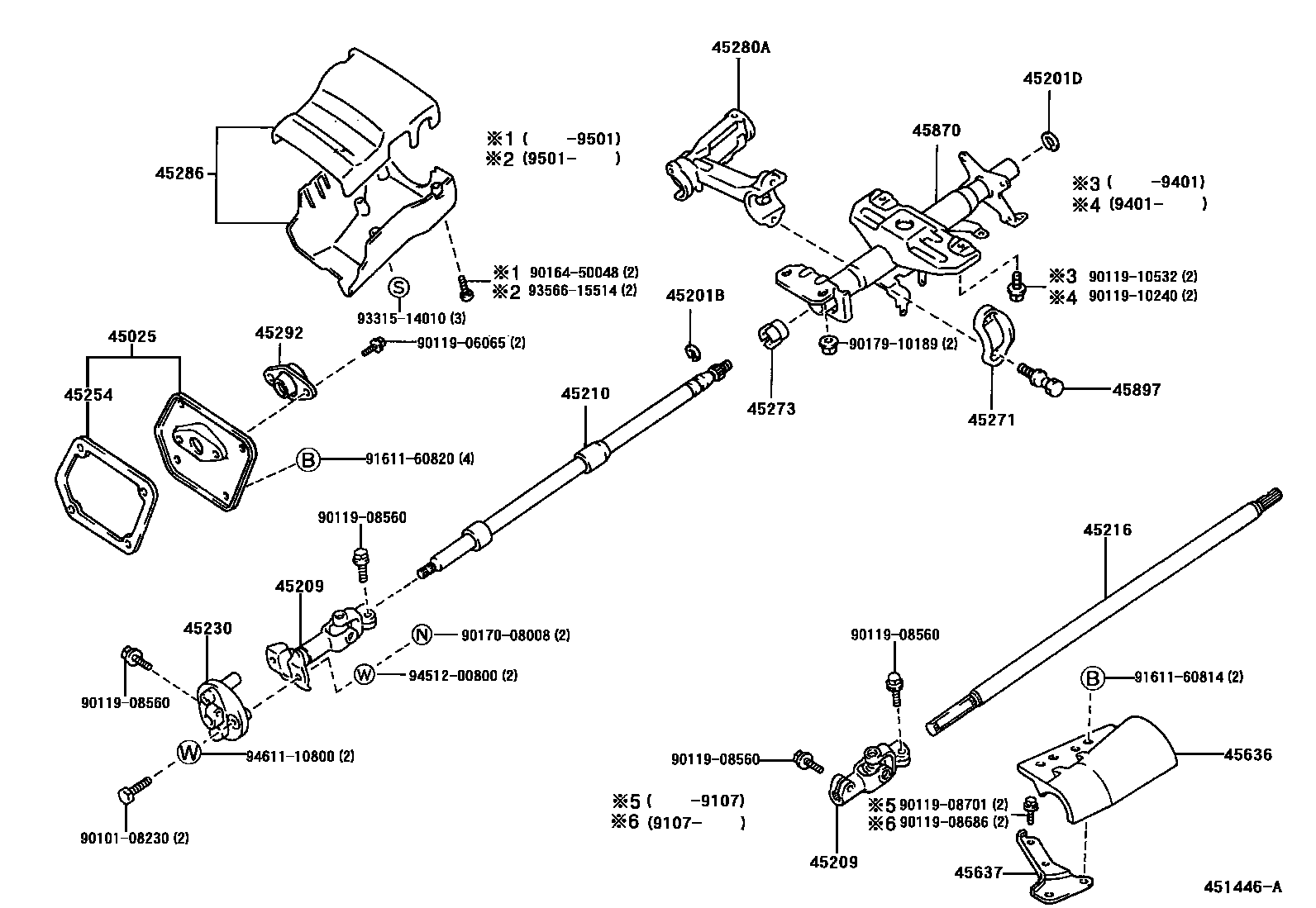

STEERING COLUMN & SHAFT

0001 1 0002 1W(TILT STEERING(RIGID) 0003 1W(TILT STEERING(COLLAPSIBLE)

45025COVER, STEERING INTERMEDIATE SHAFT

main45025-60070iFZJ80,HDJ80,HZJ80..RHD199208-200103

main45025-60080iFZJ80,HDJ80,HZJ80..LHD199208

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iFJ80,FZJ80,HDJ80,HZJ80199001-199208

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main90520-17269iFZJ80..STD..EFI199901-199909

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-60060iFZJ80,HDJ80,HZJ80199208

UPPER

main45209-60070iFZJ80,HDJ80,HZJ80199208

LOWER

45210SHAFT ASSY, STEERING MAIN

main45210-35170iFJ80,FZJ80,HDJ80,HZJ80..ARL,GCC; FJ80,FZJ80,HDJ80,HZJ80..GEN199001-199208

W(COLLAPSIBLE TILT STEERING)

main45210-35230iHZJ80;FZJ80..4FC..VX;FZJ80,HDJ80..5F199805

W(TILT STEERING)

main45210-60080iFJ80,FZJ80,HZJ80..(GX,STD)..GEN199001-199208

main45210-60110iFZJ80..(GX,STD)..GEN;HZJ80..5F..(GX,STD)..GEN; HDJ80..LHD;HZJ80..4FC;HDJ80..RHD..5F..GEN;FZJ80,HZJ80..VX..GEN199208-199805

W(TILT STEERING)

45216SHAFT, STEERING SLIDING

main45216-60080iHZJ80..GEN;HDJ80..LHD;FZJ80..5F..GEN;HDJ80..RHD..5F..GEN;FZJ80..4FC..(GX,VX)..GEN199208

45230COUPLING ASSY, FLEXIBLE

main45230-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

45254SHIELD, STEERING COLUMN HOLE

main45254-60060iFJ80,FZJ80,HDJ80,HZJ80199001-199208

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iFZJ80..(GX,STD)..GEN;HZJ80..5F..(GX,STD)..GEN199208-199901

main45271-12060iFJ80,FZJ80,HZJ80..(GX,STD)..GEN; HDJ80;FJ80..VX;FZJ80,HZJ80..ARL,GCC;FZJ80,HZJ80..VX..GEN;FJ80..(GX,STD)..(ARL,GCC)199001-199208

W(TILT STEERING)

45273BUSH, STEERING MAIN SHAFT

main45273-16010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60310iHZJ80..GCC;HZJ80..VX..GEN;FJ80,FZJ80,HDJ80..VX; HZJ80..GX..ARL;FJ80,FZJ80,HDJ80..GX..(ARL,GCC)199201-199208

W(POWER WINDOW)

main45280-60320iFJ80,HDJ80,HZJ80..(GX,STD)..(ARL,GCC)199001-199201

main45280-60330iFJ80,FZJ80,HZJ80..(GX,STD)..GEN199001-199208

main45280-60340iFZJ80,HZJ80..GX..GEN199305-199501

W(POWER WINDOW)

45286COVER, STEERING COLUMN

main45286-60936-01iFZJ80,HZJ80..RHD..(GX,STD)..GEN199208-199501

BLACK,TRIM1#,4#

main45286-60936-B0iFZJ80,HZJ80..RHD..5F..GEN199501-199901

BLUEISHGRAY,TRIM1#

main45286-60936-E0iFZJ80,HZJ80..RHD..5F..GEN199501-199901

OAK,TRIM4#

main45286-60937-01iFJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN199001-199208

BLACK,TRIM1#,4#

main45286-60937-B0iFZJ80..5F..STD..EFI199901

BLUEISH GRAY,TRIM1#

main45286-60937-E0iFZJ80,HZJ80..LHD..(GX,STD)..GEN199501-199901

OAK,TRIM4#

main45286-60938-01iFJ80,HDJ80..4FC..ARL199001-199208

W(CRUISE CONTROL),BLACK,TRIM1#,4#

main45286-60938-B0iFZJ80,HDJ80..4FC..ARL; HDJ80..5F..TD4199501-199608

BLUEISH GRAY,TRIM1#; W(*CRC),BLUEISH GRAY,TRIM1#

main45286-60938-E0iFZJ80,HDJ80..4FC..ARL; HDJ80..5F..TD4199501-199608

OAK,TRIM4#; W(*CRC),OAK,TRIM4#

main45286-60939-01iFJ80,FZJ80,HZJ80..RHD..(GX,STD)..GEN; HDJ80..RHD;FZJ80..RHD..VX;FJ80,HZJ80..ARL199001-199208

BLACK,TRIM1#,4#; W(TILT STEERING),BLACK,TRIM1#,4#

main45286-60939-B0iFZJ80,HDJ80,HZJ80..RHD199501-199608

W(TILT STEERING),BLUEISH GRAY,TRIM1#

main45286-60939-E0iHZJ80..RHD..GEN;FZJ80,HDJ80..RHD199501-199608

W(TILT STEERING),OAK,TRIM4#

main45286-60941-01iFJ80,FZJ80,HZJ80..LHD..(GX,STD)..GEN; FZJ80,HZJ80..GCC;FJ80..(GX,STD)..GCC;FJ80,HDJ80..LHD..VX;FZJ80,HZJ80..LHD..VX..GEN199001-199208

BLACK,TRIM1#,4#; W(TILT STEERING),BLACK,TRIM1#,4#

main45286-60945-B0iHDJ80..LHD;FZJ80..VX..GCC..EFI199501-199610

W(*CRC),BLUEISH GRAY,TRIM1#

main45286-60945-E0iHDJ80..LHD..LUB;FZJ80..VX..GCC..EFI199501-199610

W(*CRC),OAK,TRIM4#

main45286-60946-B0iFZJ80,HZJ80..GCC;FZJ80,HDJ80,HZJ80..LHD..VX..GEN; FZJ80,HZJ80..LHD..(GX,STD)..GEN199501-199610

BLUEISH GRAY,TRIM1#; W(TILT STEERING),BLUEISH GRAY,TRIM1#

main45286-60946-E0iFZJ80,HZJ80..GCC;FZJ80,HDJ80,HZJ80..LHD..VX..GEN; FZJ80,HZJ80..LHD..(GX,STD)..GEN199501-199610

OAK,TRIM4#; W(TILT STEERING),OAK,TRIM4#

main45286-60947-B0iHDJ80..RHD..4FC..TD2199610-200103

BLUEISH GRAY,TRIM1#

main45286-60947-E0iFZJ80,HDJ80..VX..(ARL,GCC)199501-199608

W(*80),OAK,TRIM4#

main45286-60953-B1iHDJ80..LHD;FZJ80..VX..GCC..EFI199610-199801

W(*CRC),BLUISH GRAY,TRIM1#

main45286-60953-E0iHDJ80..LHD;FZJ80..VX..GCC..EFI199610-199801

W(*CRC),OAK,TRIM4#

main45286-60954-B1iFZJ80,HZJ80..GCC;FZJ80,HDJ80,HZJ80..LHD..VX..GEN; FZJ80,HZJ80..LHD..(GX,STD)..GEN199610-199909

BLUISH GRAY,TRIM1#; W(TILT STEERING),BLUISH GRAY,TRIM1#

main45286-60954-E0iFZJ80..STD..EFI199901-199909

W(TILT STEERING),OAK,TRIM4#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35050iFZJ80,HDJ80,HZJ80199208

45636PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

main45636-60100iFJ80,FZJ80..LHD199001-199204

main45636-60101iFZJ80..LHD199204-199208

main45636-60110iFJ80,FZJ80,HDJ80,HZJ80..RHD199001-199204

main45636-60111iFJ80,FZJ80,HDJ80,HZJ80..RHD199204-199208

main45636-60120iHDJ80,HZJ80..LHD199001-199204

main45636-60121iHDJ80,HZJ80..LHD199204-199208

45637PROTECTOR, INTER LINK JOINT, LWR NO.1

main45637-60070iFJ80..LHD199001-199107

main45637-60071iFJ80,FZJ80..LHD199107-199208

main45637-60080iFJ80,HDJ80,HZJ80..RHD199001-199107

main45637-60081iFJ80,FZJ80,HDJ80,HZJ80..RHD199107-199208

45870TUBE ASSY, STEERING COLUMN

main45870-60060iFJ80,FZJ80,HDJ80,HZJ80..VX..GEN; FJ80,FZJ80,HZJ80..(GX,STD)..GEN199001-199208

W(TILT STEERING)

main45870-60070iFJ80,FZJ80,HDJ80,HZJ80..ARL,GCC; FJ80,FZJ80,HDJ80,HZJ80..GEN199001-199208

W(COLLAPSIBLE TILT STEERING)

main45870-60080iFJ80,FZJ80,HZJ80..RHD..(GX,STD)..GEN199001-199208

main45870-60090iFZJ80,HZJ80..LHD..(GX,STD)..GEN199208-199901

main45870-60100iHDJ80..GX;FZJ80..4FC..VX..GCC;FZJ80..4FC..GX..(ARL,GCC);FZJ80,HZJ80..5F..(ARL,GCC)199608-199801

main45870-60110iHDJ80..RHD..4FC..TD2199610-199909

45897BOLT, STEERING LOCK SET

main45897-12020×2iFZJ80200105

main45897-60010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

9010108230

main90101-08230

9011906065

main90119-06065

9011908560

main90119-08560

9011908686

main90119-08686

9011908701

main90119-08701

9011910240

main90119-10240

9011910532

main90119-10532

9016450048

main90164-50048

9017008008

main90170-08008

9017910189

main90179-10189

9161160814

main91611-60814

9161160820

main91611-60820

9331514010

main93315-14010

9356615514

main93566-15514

9451200800

main94512-00800

9461110800

main94611-10800

33 parts on this diagram · 3 diagrams in section
