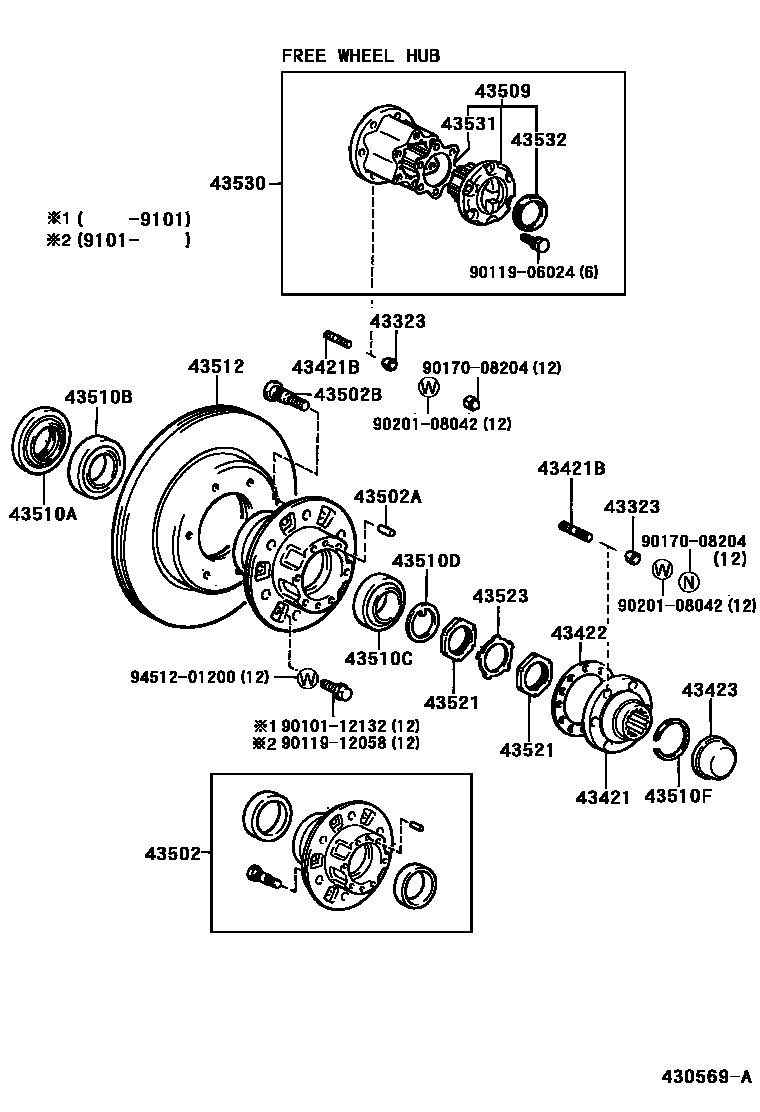

FRONT AXLE HUB

43323WASHER, CONE (FOR FRONT AXLE SHAFT)

main42323-60010×12iFZJ80,HDJ80,HZJ80199208

43421FLANGE, FRONT AXLE OUTER SHAFT

main43421-60020×2iFZJ80,HDJ80,HZJ80199208-199311

main43421-60021×2iFZJ80,HDJ80,HZJ80199311-199404

main43421-60022×2iFZJ80,HZJ80199901-199909

main43421-60040×2iFZJ80..VX199909

43421BBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)

main90116-08325×12iFJ80,FZJ80,HDJ80,HZJ80199001-199208

43422GASKET, FRONT AXLE OUTER SHAFT FLANGE

main43422-60030×2iFZJ80,HDJ80,HZJ80199208-199304

main43422-60031×2iFZJ80,HDJ80,HZJ80199304-199307

main43422-60060×2iFZJ80,HDJ80,HZJ80199307

43423CAP, FRONT AXLE OUTER SHAFT FLANGE

main43423-35010×2iFJ80,HDJ80,HZJ80199001-199012

43502HUB SUB-ASSY, FRONT AXLE

main43502-60040×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main43502-69045×2iFZJ80,HDJ80,HZJ80199408

43502APIN, STRAIGHT (FOR FRONT AXLE HUB)

main90250-07057×4iFJ80,FZJ80,HDJ80,HZJ80199001-199208

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02049×12iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main90942-02070×12iFZJ80,HDJ80,HZJ80199506

43509COVER SUB-ASSY, FREE WHEEL HUB

main43509-60050×2iFJ80..LHD..GEN;HZJ80..LHD..STD;FZJ80,HDJ80..GEN;HZJ80..(GX,VX)..GEN;FJ80,HZJ80..STD..ARL; FJ80..RHD..GEN;HZJ80..RHD..STD..GEN199001-199208

W(FREE WHEEL HUB)

main43509-60051×2iFZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GEN199305-199608

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-62001×2iFZJ80,HDJ80,HZJ80199208

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064×2iFZJ80,HDJ80,HZJ80199408

TIMKEN

main90368-49084×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067×2iFZJ80,HDJ80,HZJ80199408

TIMKEN

main90368-45087×2iFZJ80,HDJ80,HZJ80199208-199408

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-42030×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-31001×2iFZJ80,HDJ80,HZJ80..LUB..ARL; FZJ80..GX..ARL; FZJ80..RHD..GX..CBR199611-199801

T=2.5; T=2.5,W(*FDL) OR W(LSD); T=2.5,W(FULL TIME TRANSFER)

main90520-31004×2iFZJ80..4FC..GX..ARL; FZJ80..5F..ARL199608-199801

T=2.30,MARK A,W(*ELC); T=2.30,MARK A,W(PTO DRIVE GEAR)

main90520-31005×2iFZJ80..4FC..GX..ARL; FZJ80..5F..ARL199608-199801

T=2.8,W(*ELC); T=2.8,W(PTO DRIVE GEAR)

main90520-31006×2iFZJ80..4FC..GX..ARL; FZJ80..5F..ARL199608-199801

T=2.6,W(*ELC); T=2.6,W(PTO DRIVE GEAR)

main90520-31007×2iFZJ80..4FC..GX..ARL; FZJ80..5F..ARL199608-199801

T=2.4,W(*ELC); T=2.4,W(PTO DRIVE GEAR)

main90520-31008×2iFZJ80..4FC..GX..ARL; FZJ80..5F..ARL199608-199801

T=2.2,W(*ELC); T=2.2,W(PTO DRIVE GEAR)

main90520-31009×2iHZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GEN199508-199611

T=2.0

main90520-31010×2iFZJ80..4FC;FZJ80..5F..VX200003

T=1.8

43512DISC, FRONT

main43512-60050×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main43512-60090×2iFZJ80,HDJ80,HZJ80199208

43521NUT, FRONT WHEEL ADJUSTING

main43521-60011×4iFZJ80,HDJ80,HZJ80199208

43523WASHER, FRONT WHEEL ADJUSTING LOCK

main90215-42025×2iFZJ80,HDJ80,HZJ80199208

43530HUB ASSY, FREE WHEEL

main43530-60040×2iFJ80..LHD..GEN;HZJ80..LHD..STD;FZJ80,HDJ80..GEN;HZJ80..(GX,VX)..GEN;FJ80,HZJ80..STD..ARL; FJ80..RHD..GEN;HZJ80..RHD..STD..GEN199001-199208

W(FREE WHEEL HUB)

main43530-60041×2iFZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GEN199305-199507

main43530-60042×2iHZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GEN199507-199608

43531GASKET, FREE WHEEL HUB

main43531-60010×2iFJ80..LHD..GEN;HZJ80..LHD..STD;FZJ80,HDJ80..GEN;HZJ80..(GX,VX)..GEN;FJ80,HZJ80..STD..ARL; FJ80..RHD..GEN;HZJ80..RHD..STD..GEN199001-199208

W(FREE WHEEL HUB)

43532RING, FREE WHEEL HUB

main43532-60010×2iFJ80..LHD..GEN;HZJ80..LHD..STD;FZJ80,HDJ80..GEN;HZJ80..(GX,VX)..GEN;FJ80,HZJ80..STD..ARL; FJ80..RHD..GEN;HZJ80..RHD..STD..GEN199001-199208

W(FREE WHEEL HUB)

9010112132

main90101-12132

9011906024

main90119-06024

9011912058

main90119-12058

9017008204

main90170-08204

9020108042

main90201-08042

9451201200

main94512-01200

26 parts on this diagram · 1 diagram in section
