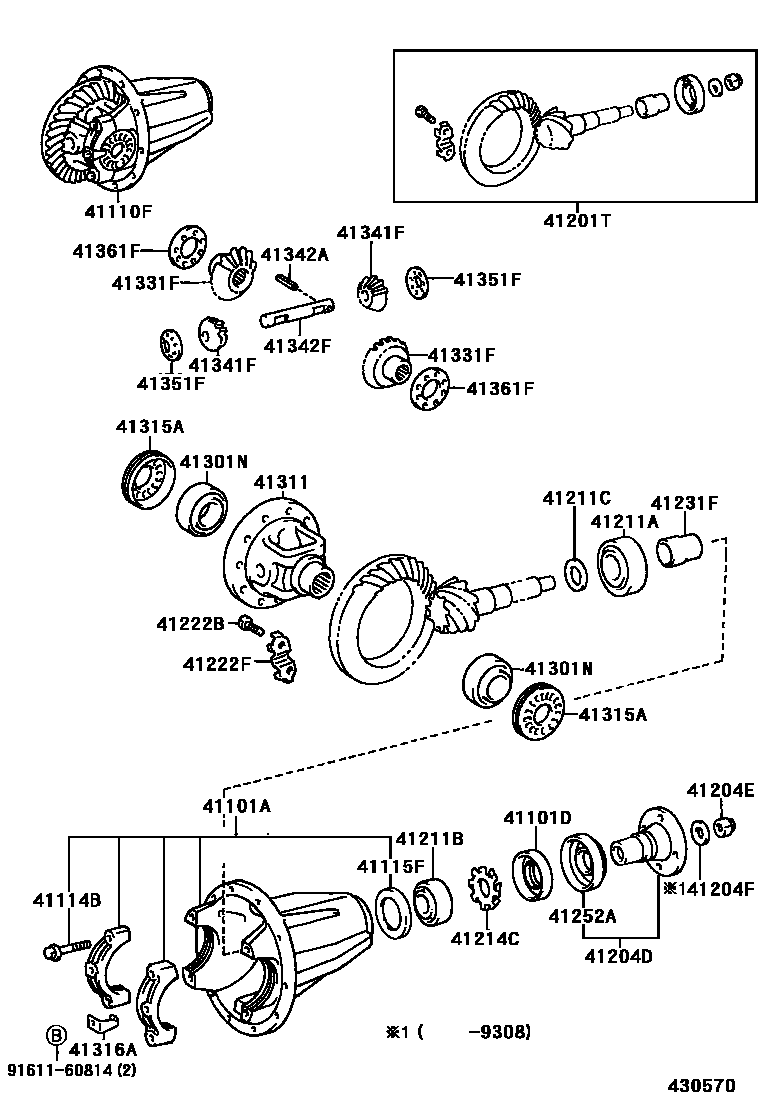

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1DIFFERENTIAL LOCK 0004 1DIFFERENTIAL LOCK

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-60090iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD;FZJ80..STD..EFI199709-199901

main41101-60110iHDJ80..ARL;HDJ80..LHD;FZJ80..GX..EFI;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(ARL,GEN);FZJ80..(GX,VX)..GEN..CBR;FZJ80,HZJ80..VX..(ARL,GCC);FZJ80..SOB..STD..(ARL,GEN)199308-199901

W(FRONT DIFFERENTIAL LOCK)

41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)

main90311-38035iFZJ80,HDJ80,HZJ80199208-199512

main90311-38047iFZJ80,HDJ80,HZJ80199512-199709

main90311-41009iFZJ80200201

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-60270iFJ80..MTM..GEN199001-199201

*FGR=41:11=3.727

main41110-60280iFZJ80..LUB..STD199208-199709

*FGR=41:10=4.100

main41110-60370iHDJ80..ARL;HDJ80..LHD;FZJ80..GX..EFI;FZJ80..RHD..STD;HZJ80..5F..(ARL,GEN);FZJ80..(GX,VX)..GEN..CBR;FZJ80,HZJ80..VX..(ARL,GCC)199208-200103

*FGR=41:10=4.100,W(FRONT DIFFERENTIAL LOCK)

main41110-60590iFJ80..MTM..GEN199001-199201

*FGR=41:11=3.727,W(FRONT DIFFERENTIAL LOCK)

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053×4iFJ80,FZJ80,HDJ80,HZJ80199001-199208

41115FRING, FRONT DIFFERENTIAL OIL STORAGE

main41115-35010iHZJ80199909-200103

W(FRONT DIFFERENTIAL LOCK)

main41115-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-69225iFJ80..MTM..GEN199001-199201

*FGR=41:11=3.727

main41201-69235iHZJ80..RHD..STD..GEN199208-199901

*FGR=41:10=4.100

main41201-69385iFJ80..MTM..GEN199001-199201

*FGR=41:11=3.727,W(FRONT DIFFERENTIAL LOCK)

main41201-69395iFZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80199001-199208

*FGR=41:10=4.100,W(FRONT DIFFERENTIAL LOCK)

main41201-69805iFZJ80200508

*FGR=41:10=4.100

main41201-80169iFZJ80200202-200508

*FGR=41:10=4.100

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35040iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD;FZJ80..STD..EFI199709-199801

main41204-35080iFZJ80,HDJ80,HZJ80199909-200201

main41204-35081iFZJ80200201-200405

41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)

main90177-22003iFZJ80200201

main90179-20001iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main90179-20018iFZJ80,HDJ80,HZJ80199308-199709

41204FWASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT)

main90201-20005iFJ80,FZJ80,HDJ80,HZJ80199001-199208

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-35028iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main90366-35087iFZJ80..LUB..STD199609-199709

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-30025iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main90366-30067iFZJ80,HDJ80,HZJ80199711-200612

41211CGEAR, DIFFERENTIAL RING

main90201-35497iFZJ80200108

OD=47,T=1.70

main90201-35498iFZJ80,HDJ80,HZJ80199208-199709

OD=47,T=1.73

main90201-35499iFZJ80,HDJ80,HZJ80199208-199709

OD=47,T=1.76

main90201-35500iFZJ80,HDJ80,HZJ80199208-199709

OD=47,T=1.79

main90201-35501iFZJ80,HDJ80,HZJ80199208-199709

OD=47,T=1.82

main90201-35502iFZJ80,HDJ80,HZJ80199208-199709

OD=47,T=1.85

main90201-35503iFZJ80,HDJ80,HZJ80199909

OD=47,T=1.88

main90201-35504iFZJ80,HDJ80,HZJ80199208-199709

OD=47,T=1.91

main90201-35505iFZJ80,HDJ80,HZJ80199208-199709

OD=47,T=1.94

main90201-35506iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD;FZJ80..STD..EFI199709-199901

OD=47,T=1.97

main90201-35507iFZJ80,HDJ80,HZJ80199909

OD=47,T=2.00

main90201-35508iHDJ80..4FC;FZJ80,HZJ80..DSL,EFI199901-199909

OD=47,T=2.03

main90201-35509iFZJ80,HDJ80,HZJ80199208-199709

OD=47,T=2.06

main90201-35510iFZJ80,HDJ80,HZJ80199208-199709

OD=47,T=2.09

main90201-35511iHDJ80..4FC;FZJ80,HZJ80..DSL,EFI199901-199909

OD=47,T=2.12

main90201-35512iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD;FZJ80..STD..EFI199709-199901

OD=47,T=2.15

main90201-35513iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD;FZJ80..STD..EFI199709-199901

OD=47,T=2.18

main90201-35514iFJ80,FZJ80,HDJ80,HZJ80199001-199208

OD=47,T=2.21

main90201-35515iFZJ80,HDJ80,HZJ80199909

OD=47,T=2.24,MARK 01

main90201-35516iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD;FZJ80..STD..EFI199709-199901

OD=47,T=2.27,MARK 02

main90201-35517iFJ80,FZJ80,HDJ80,HZJ80199001-199208

OD=47,T=2.30,MARK 03

main90201-35518iFJ80,FZJ80,HDJ80,HZJ80199001-199208

OD=47,T=2.33,MARK 04

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-60010iFZJ80,HDJ80,HZJ80199208-199709

main41214-60011iFZJ80200201

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353×10iFJ80,FZJ80,HDJ80,HZJ80199001-199208

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020×5iFZJ80,HDJ80199901

main41222-60010×5iHDJ80..ARL;HDJ80..LHD;FZJ80..GX..EFI;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(ARL,GEN);FZJ80..(GX,VX)..GEN..CBR;FZJ80,HZJ80..VX..(ARL,GCC);FZJ80..SOB..STD..(ARL,GEN)199308-199901

W(FRONT DIFFERENTIAL LOCK)

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-35010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

main41252-35020iFZJ80,HDJ80,HZJ80199303-199709

main41252-35040iFZJ80,HDJ80,HZJ80199801-199901

main41252-35041iFZJ80200201

41301NBEARING(FOR FRONT DIFFERENTIAL CASE)

main90366-50007iHDJ80..ARL;HDJ80..LHD;FZJ80..GX..EFI;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(ARL,GEN);FZJ80..(GX,VX)..GEN..CBR;FZJ80,HZJ80..VX..(ARL,GCC);FZJ80..SOB..STD..(ARL,GEN)199308-199901

W(FRONT DIFFERENTIAL LOCK),LH

main90366-75001iHZJ80;FZJ80..4FC199901-199909

W(FRONT DIFFERENTIAL LOCK),RH

41311CASE, FRONT DIFFERENTIAL

main41301-60060iHZJ80;FZJ80..4FC199901-199909

W(FRONT DIFFERENTIAL LOCK)

main41311-60060iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD;FZJ80..STD..EFI199709-199901

41315ANUT, FRONT DIFFERENTIAL BEARING ADJUSTING

main41315-35020×2iFJ80,FZJ80,HDJ80,HZJ80; FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80199001-199208

W(FRONT DIFFERENTIAL LOCK),RH

main41315-60010iFZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80199001-199208

W(FRONT DIFFERENTIAL LOCK),LH

41316ALOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-35011×2iFZJ80,HDJ80199901

main41331-35040iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD199208-199308

W(FRONT DIFFERENTIAL LOCK),RH

main41331-60040iFZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80199001-199208

W(FRONT DIFFERENTIAL LOCK),LH

41341FPINION, FRONT DIFFERENTIAL

main41341-30020×4iHZJ80199909-200005

W(FRONT DIFFERENTIAL LOCK)

main41341-35020×2iFZJ80,HDJ80,HZJ80199208-199709

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06085iFJ80,FZJ80,HDJ80,HZJ80199001-199208

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-39610iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD;FZJ80..STD..EFI199709-199901

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30052×2iFZJ80,HDJ80,HZJ80199208-199709

main41351-30060×4iHDJ80..ARL;HDJ80..LHD;FZJ80..GX..EFI;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(ARL,GEN);FZJ80..(GX,VX)..GEN..CBR;FZJ80,HZJ80..VX..(ARL,GCC);FZJ80..SOB..STD..(ARL,GEN)199308-199901

W(FRONT DIFFERENTIAL LOCK)

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-40021×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

T=1.6

main41361-60290×2iHDJ80..ARL;HDJ80..LHD;FZJ80..GX..EFI;FZJ80..4FC..VX..GEN;HDJ80..RHD..5F..GEN;HZJ80..5F..(ARL,GEN);FZJ80..(GX,VX)..GEN..CBR;FZJ80,HZJ80..VX..(ARL,GCC);FZJ80..SOB..STD..(ARL,GEN)199308-199901

T=0.90,W(FRONT DIFFERENTIAL LOCK)

main41361-60300×2iHZJ80199909-200103

T=1.00,W(FRONT DIFFERENTIAL LOCK)

main41361-60310×2iHZJ80;FZJ80..4FC199901-199909

T=1.10,W(FRONT DIFFERENTIAL LOCK)

main41361-60320×2iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD199208-199308

T=1.20,W(FRONT DIFFERENTIAL LOCK)

main41361-60330×2iHZJ80199909-200103

T=1.30,W(FRONT DIFFERENTIAL LOCK)

main41362-40021×2iFJ80,FZJ80,HDJ80,HZJ80199001-199208

T=1.7

main41363-40021×2iHDJ80,HZJ80;FZJ80..GX,VX;FZJ80..SOB..STD;FZJ80..STD..EFI199709-199901

T=1.8

9161160814

main91611-60814

28 parts on this diagram · 4 diagrams in section
