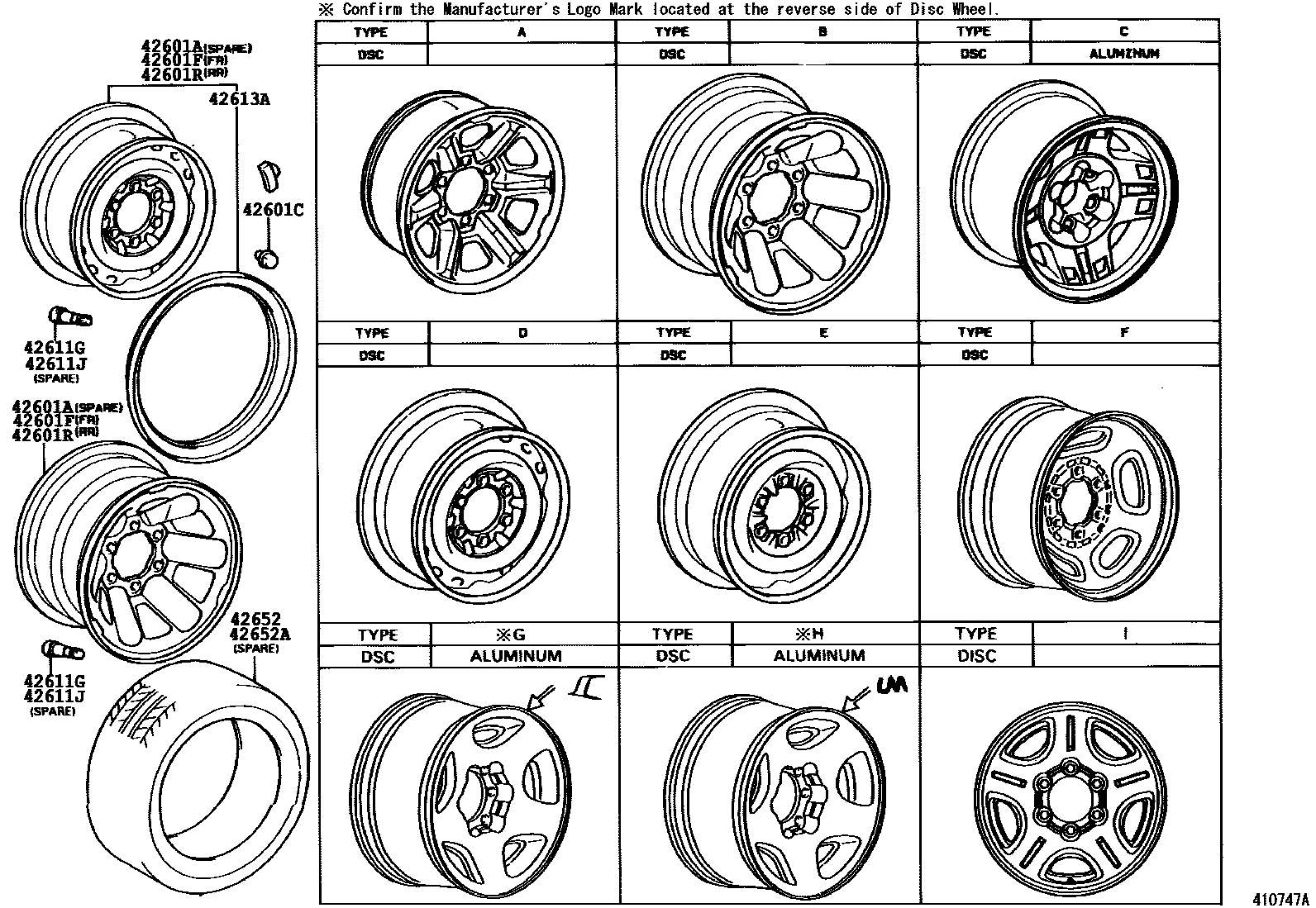

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
15X7JJ, #,PAINTING WHEEL,TYPE B,SILVER M.
7JJX15,PLATED WHEEL,TYPE A
main42601-60360-03iHDJ80..ARL;HDJ80..LHD;FZJ80..GX,VX;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..GEN199208-199806
8JJX16, #,TYPE F:REFER TO ILLUSTRATION,SILVER M.
8JJX16,TYPE F:REFER TO ILLUSTRATION
16X6J,OFFSET 30, #,TYPE A:REFER TO ILLUSTRATION,SILVER M.
main42610-60170-03×2iHZJ80..GEN;FZJ80..GX..GEN;HZJ80..STD..ARL;FJ80,FZJ80..SOB..STD..(ARL,GEN)199201-199208
5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY
5.50F-15,TYPE E:REFER TO ILLUSTRATION
main42610-60190-03×2iFJ80,HZJ80..STD..ARL; HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,FZJ80,HDJ80..GX,VX;FJ80,FZJ80..SOB..STD..(GCC,GEN)199008-199208
5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.; 5.50F-16,TYPE A:REFER TO ILLUSTRATION,SILVER M.
main42610-60200iFJ80,HDJ80,HZJ80..GCC,GEN; HZJ80..(GX,VX)..GEN;FJ80,HDJ80..LHD..(GX,VX)..GEN199003-199201
5.50F-16,PLATED WHEEL,TYPE A; 5.50F-16,PLATED WHEEL,W(BACK DOOR SPARE WHEEL CARRIER & UNDER BODY SPARE WHEEL CARRIER),TYPE A
5.50F-15,PAINTING WHEEL,TYPE E
5.50F-15,TYPE E:REFER TO ILLUSTRATION
5.50F-15,PAINTING WHEEL,TYPE E
5.50F-16,#,TYPE D:REFER TO ILLUSTRATION,GRAY
5.50F-16,TYPE D:REFER TO ILLUSTRATION
5.50F-16,TYPE D:REFER TO ILLUSTRATION
7JJ-15, #,TYPE C:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
7JJ-15,TYPE C:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
TYPE H:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
16X8JJ, #,TYPE G:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
16X8JJ, #,TYPE H:REFER TO ILLUSTRATION
16X8JJ, #,TYPE G:REFER TO ILLUSTRATION
16X8JJ,TYPE I:REFER TO ILLUSTRATION, LIMITED EDITION(G.C.C.)
16X8JJ,TYPE H:REFER TO ILLUSTRATIN, WINTER EDITION
42601CNUT, HUB (FOR AXLE)
W(ALUMINUM WHEEL)
42601FWHEEL, DISC (FOR FRONT)
15X7JJ, #,PAINTING WHEEL,TYPE B,SILVER M.
7JJX15,PLATED WHEEL,TYPE A
main42601-60360-03×2iHDJ80..ARL;HDJ80..LHD;FZJ80..GX,VX;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..GEN199208-199806
8JJX16, #,TYPE F:REFER TO ILLUSTRATION,SILVER M.
8JJX16,TYPE F:REFER TO ILLUSTRATION
16X6J,OFFSET 30, #,TYPE A:REFER TO ILLUSTRATION,SILVER M.
5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY
5.50F-15,TYPE E:REFER TO ILLUSTRATION
main42610-60190-03×2iFJ80,HZJ80..STD..ARL; HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,FZJ80,HDJ80..GX,VX;FJ80,FZJ80..SOB..STD..(GCC,GEN)199001-199208
5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.; 5.50F-16,TYPE A:REFER TO ILLUSTRATION,SILVER M.
main42610-60200×2iHZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,FZJ80,HDJ80..GX,VX;FJ80,FZJ80..SOB..STD..(GCC,GEN)199003-199208
5.50F-16,PLATED WHEEL,TYPE A
5.50F-15,PAINTING WHEEL,TYPE E
5.50F-15,TYPE E:REFER TO ILLUSTRATION
5.50F-15,PAINTING WHEEL,TYPE E
5.50F-16,#,TYPE D:REFER TO ILLUSTRATION,GRAY
5.50F-16,TYPE D:REFER TO ILLUSTRATION
main42610-60281×2iHZJ80;HDJ80..LHD;FZJ80..4FC..GEN;FZJ80..SOB..STD;FZJ80..(GX,VX)..CBR;HDJ80..RHD..5F..GEN;FZJ80,HDJ80..(GX,VX)..(ARL,GCC)..(EFI,TD2,TD4)199301-199901
5.50F-16,TYPE D:REFER TO ILLUSTRATION
7JJ-15, #,TYPE C:REFER TO ILLUSTRATION
TYPE H:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
16X8JJ, #,TYPE G:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
16X8JJ, #,TYPE H:REFER TO ILLUSTRATION
main42611-60110×2iHDJ80..LHD;FZJ80..4FC..GEN;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80..(GX,VX)..(CBR,TD4)199502-199901
16X8JJ, #,TYPE G:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
16X8JJ,TYPE I:REFER TO ILLUSTRATION; 16X8JJ,TYPE I:REFER TO ILLUSTRATION, LIMITED EDITION(G.C.C.)
16X8JJ,TYPE H:REFER TO ILLUSTRATIN, WINTER EDITION
42601RWHEEL, DISC (FOR REAR)
15X7JJ, #,PAINTING WHEEL,TYPE B,SILVER M.
7JJX15,PLATED WHEEL,TYPE A
main42601-60360-03×2iHDJ80..ARL;HDJ80..LHD;FZJ80..GX,VX;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..GEN199208-199806
8JJX16, #,TYPE F:REFER TO ILLUSTRATION,SILVER M.
8JJX16,TYPE F:REFER TO ILLUSTRATION
16X6J,OFFSET 30, #,TYPE A:REFER TO ILLUSTRATION,SILVER M.
main42610-60170-03×2iHZJ80..GEN;FZJ80..GX..GEN;HZJ80..STD..ARL;FJ80,FZJ80..SOB..STD..(ARL,GEN)199201-199208
5.50F-16, #,TYPE D:REFER TO ILLUSTRATION,GRAY
5.50F-15,TYPE E:REFER TO ILLUSTRATION
main42610-60190-03×2iFJ80,HZJ80..STD..ARL; HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,FZJ80,HDJ80..GX,VX;FJ80,FZJ80..SOB..STD..(GCC,GEN)199001-199208
5.50F-16,PAINTING WHEEL,TYPE A,SILVER M.; 5.50F-16,TYPE A:REFER TO ILLUSTRATION,SILVER M.
5.50F-16,PLATED WHEEL,TYPE A
5.50F-15,PAINTING WHEEL,TYPE E
5.50F-15,TYPE E:REFER TO ILLUSTRATION
5.50F-15,PAINTING WHEEL,TYPE E
5.50F-16,#,TYPE D:REFER TO ILLUSTRATION,GRAY
5.50F-16,TYPE D:REFER TO ILLUSTRATION
main42610-60281×2iHZJ80;HDJ80..LHD;FZJ80..4FC..GEN;FZJ80..SOB..STD;FZJ80..(GX,VX)..CBR;HDJ80..RHD..5F..GEN;FZJ80,HDJ80..(GX,VX)..(ARL,GCC)..(EFI,TD2,TD4)199301-199901
5.50F-16,TYPE D:REFER TO ILLUSTRATION
7JJ-15, #,TYPE C:REFER TO ILLUSTRATION,W(ALUMINUM WHEEL)
TYPE H:REFER TO ILLUSTRATION
16X8JJ, #,TYPE G:REFER TO ILLUSTRATION
16X8JJ, #,TYPE H:REFER TO ILLUSTRATION
16X8JJ, #,TYPE G:REFER TO ILLUSTRATION
16X8JJ,ENDEVOUR EDITION(AUSTRALIA),TYPE I
16X8JJ,TYPE H:REFER TO ILLUSTRATIN, WINTER EDITION
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42613ARING, DISC WHEEL SIDE
W(5.50F-15 DISC WHEEL)
W(5.50F-16 TYPE D DISC WHEEL)
main42613-60040×6iFJ80,HDJ80..ARL;HZJ80..STD..ARL;FJ80..LHD..GX..GEN;HZJ80..GX..(ARL,GEN); HDJ80;FJ80,HZJ80..STD,VX;FJ80..RHD..GX..GEN;FJ80,HZJ80..GX..(ARL,GCC)199001-199003
W(5.50F-16 TYPE A DISC WHEEL)
W(5.50F-15 TYPE E DISC WHEEL)
W(5.50F-15 TYPE E DISC WHEEL)
W(5.50F-15,PAINTING WHEEL TYPE E DISC WHEEL)
42652TIRE
7.50-16-6,JEEP,*B/S,W(PAINTING WHEEL)
7.50-16-8,JEEP,*B/S,W(PAINTING WHEEL)
9.00-15-6,SAND,*D/L,SAND
9.00-15-6,SAND,*T/Y,SAND
9.00-15-6,SAND,*B/S,SAND
main42605-60460×4iFJ80,FZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN;FJ80,FZJ80..LHD..MTM..LUB..GX..GEN199001-199208
7.50-16-6,LUG,CHINA SPEC
7.00-15-6,SEMI LUG,SEMI-LUG
7.50R16-8,*B/S SAHAR
7.00-15-6,RIB
7.50R16-8,*D/L SAHAR
7.50-16-8,*B/S
7.50-16-8,*D/L
7.50R16-8,*D/L
7.50R16-8,*Y/H
31X10.5R15,*B/S
7.50-16-6,*D/L
31X10.5R15,*D/L
7.50R16-8,W(PAINTING WHEEL)
215/80R16,*D/L,MALAYSIA CKD SPEC
215/80R16,*B/S
215/80R16,*B/S
main42605-6A220×4iFZJ80,HDJ80,HZJ80..ARL; HDJ80,HZJ80..GEN;FZJ80..(GX,VX)..GEN;FZJ80..SOB..STD..GEN199208-199605
7.50R16-6; 7.50R16-6,W(PAINTING WHEEL)
main42605-6A221×4iHDJ80..LHD;HZJ80..5F..GEN;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;FZJ80..SOB..STD..GEN;FZJ80..(GX,VX)..GEN..CBR199605-199901
7.50R16-6,W(PAINTING WHEEL)
265/75R15,*D/L
265/75R15,*B/S
265/75R15,*D/L
main42605-6A290×4iHDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;FZJ80..(GX,VX)..CBR;HDJ80..RHD..5F..GEN;FZJ80..SOB..STD..CBR;HZJ80..5F..(GCC,GEN)199208-199901
7.50R16-6,*D/L
main42605-6A300×4iFZJ80..GX;FZJ80..SOB..STD;FZJ80,HZJ80..VX..GEN;HZJ80..(GX,STD)..(GCC,GEN); HDJ80..GEN199201-199208
7.50R16-6,*B/S; 7.50R16-6,*B/S,W(PAINTING WHEEL)
7.50R16-8,*B/S
235/95R15C-6,*B/S
235/95R15C-6,*T/Y
245/85R16*B/S,W(PAINTING WHEEL)
275/70R16,W(PAINTING WHEEL)
275/70R16*B/S,W(PAINTING WHEEL)
275/70R16*B/S
275/70R16*B/S,W(PAINTING WHEEL)
275/70R16*B/S
main42605-6A420×4iHDJ80..LHD;FZJ80..GCC..EFI;FZJ80..SOB..STD;FZJ80..(GX,VX)..CBR;HDJ80..RHD..5F..TD2;HZJ80..LUB..GX..GEN;HZJ80..LHD..SOB..GX;FZJ80,HZJ80..4FC..GEN;HZJ80..(STD,VX)..(GCC,GEN); HZJ80..RHD..5F..SOB..GX199608-199901
7.50R16-6,SAHARA*D/L; 7.50R16-6,SAHARA*D/L,W(PAINTING WHEEL)
main42605-6A430×4iHDJ80..LHD;FZJ80..GCC..EFI;FZJ80..SOB..STD;FZJ80..(GX,VX)..CBR;HDJ80..RHD..5F..TD2;HZJ80..LUB..GX..GEN;HZJ80..LHD..SOB..GX;FZJ80,HZJ80..4FC..GEN;HZJ80..(STD,VX)..(GCC,GEN); HZJ80..RHD..5F..SOB..GX199608-199901
7.50R16-6,SAHARA*B/S; 7.50R16-6,SAHARA*B/S,W(PAINTING WHEEL)
275/70R16,*D/L
275/70R16,*D/L
275/70R16,*B/S
275/70R16,*B/S
275/70R16,*D/L,W(PAINTING WHEEL)
275/70R16,*D/L,TUBELESS
275/70R16,*D/L
main42652-60410×4iHDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199601-199811
275/70R16,*B/S,W(PAINTING WHEEL)
275/70R16,*B/S,TUBELESS
275/70R16,*B/S
7.50-16-6,SEMI LUG
7.00-15-6,GRIP
42652ATIRE (FOR SPARE)
7.50-16-6,JEEP,*B/S,JEEP SERVICE; 7.50-16-6,JEEP,*B/S,W(BACK DOOR & UNDER BODY SPARE WHEEL CARRIER),JEEP SERVICE
main42605-60300×2iFJ80..LHD..4F..STD;HZJ80..LHD..MTM..GX..GEN; HDJ80,HZJ80..GEN;FJ80..(GX,STD)..GEN; HZJ80..4FC;FJ80..4F..GX;FJ80..RHD..4F;HZJ80..RHD..GEN;HDJ80,HZJ80..LHD..(STD,VX);FJ80..(4FC,5F)..(GX,STD)..GEN199001-199201
7.50-16-8,JEEP,*B/S; 7.50-16-8,JEEP,*B/S,W(PAINTING WHEEL & BACK DOOR & UNDER BODY SPARE WHEEL CARRIER); 7.50-16-8,JEEP,*B/S,W(PAINTING WHEEL)
9.00-15-6,SAND,*D/L; 9.00-15-6,SAND,*D/L,W(BACK DOOR & UNDER BODY SPARE WHEEL CARRIER),SAND
9.00-15-6,SAND,*T/Y; 9.00-15-6,SAND,*T/Y,W(BACK DOOR & UNDER BODY SPARE WHEEL CARRIER),SAND
9.00-15-6,SAND,*B/S,SAND; 9.00-15-6,SAND,*B/S,W(BACK DOOR & UNDER BODY SPARE WHEEL CARRIER),SAND
main42605-60460×2iFJ80,FZJ80..LHD..SOB..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN;FJ80,FZJ80..LHD..MTM..LUB..GX..GEN199001-199208
7.50-16-6,LUG,CHINA SPEC
7.00-15-6,SEMI LUG; 7.00-15-6,SEMI LUG,W(BACK DOOR & UNDER BODY SPARE WHEEL CARRIER),SEMI-LUG
7.50R16-8,*B/S SAHAR
7.00-15-6,RIB
7.50R16-8,*D/L SAHAR
7.50-16-8,*B/S
7.50-16-8,*D/L
7.50R16-8,*D/L
main42605-6A060×2iFZJ80..GX;FJ80,HDJ80..GEN;FZJ80..SOB..STD;FJ80..(GX,STD)..GCC;FZJ80,HZJ80..VX..GEN;HZJ80..(GX,STD)..(GCC,GEN)199003-199208
7.50R16-8,*Y/H,W(PAINTING WHEEL) OR W(PLATED WHEEL)
31X10.5R15,*B/S
7.50-16-6,*D/L
31X10.5R15,*D/L
7.50R16-8,W(PAINTING WHEEL & BACK DOOR & UNDER BODY SPARE WHEEL CARRIER); 7.50R16-8,W(PAINTING WHEEL)
215/80R16,*D/L
215/80R16,*B/S
215/80R16,*B/S,MALAYSIA CKD SPEC
7.50R16-6
main42605-6A221iFZJ80..4FC..VX..GEN;HDJ80..RHD..5F..TD2;HZJ80..RHD..5F..SOB;FZJ80..LHD..SOB..STD..GEN;FZJ80,HDJ80,HZJ80..LUB..ARL; HDJ80..LHD;HZJ80..5F..GEN;FZJ80..4FC..GEN;HDJ80..RHD..5F..TD2;FZJ80..SOB..STD..GEN;FZJ80..(GX,VX)..GEN..CBR199605-199901
7.50R16-6; 7.50R16-6,W(PAINTING WHEEL)
265/75R15,*D/L
265/75R15,*B/S
265/75R15,*D/L
7.50R16-6,*D/L
main42605-6A300iFZJ80..GX;FZJ80..SOB..STD;FZJ80,HZJ80..VX..GEN;HZJ80..(GX,STD)..(GCC,GEN); HDJ80..GEN; HZJ80..VX..GEN;HZJ80..SOB..GX..GEN199201-199208
7.50R16-6,*B/S; 7.50R16-6,*B/S,W(PAINTING WHEEL OR PLATED WHEEL); 7.50R16-6,*B/S,W(PAINTING WHEEL)
main42605-6A310×2iFZJ80,HZJ80..VX..GCC; FZJ80..GX;FZJ80..SOB..STD;FZJ80,HDJ80,HZJ80..VX..GEN;HZJ80..(GX,STD)..(GCC,GEN)199201-199208
7.50R16-8,*B/S; 7.50R16-8,*B/S,W(PAINTING WHEEL) OR W(PLATED WHEEL)
235/95R15C-6,*B/S
235/95R15C-6,*T/Y
245/85R16*B/S; 245/85R16*B/S,W(PAINTING WHEEL)
275/70R16,W(PAINTING WHEEL)
275/70R16*B/S,W(PAINTING WHEEL)
275/70R16*B/S,W(PAINTING WHEEL)
7.50R16-6,SAHARA*D/L
7.50R16-6,SAHARA*B/S
275/70R16,*D/L
275/70R16,*D/L
275/70R16,*B/S
275/70R16,*B/S
275/70R16,*D/L,W(PAINTING WHEEL)
275/70R16,*D/L,TUBELESS
275/70R16,*D/L,TUBELESS
main42652-60410iHDJ80..LHD;FZJ80..4FC..GEN;FZJ80..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..5F..(GX,VX)..(GCC,GEN)..(CBR,DSL)199601-199811
275/70R16,*B/S,W(PAINTING WHEEL)
275/70R16,*B/S,TUBELESS
275/70R16,*B/S
7.50-16-6,SEMI LUG
7.00-15-6,GRIP; 7.00-15-6,GRIP,W(BACK DOOR & UNDER BODY SPARE WHEEL CARRIER),GLIP
9 parts on this diagram · 3 diagrams in section
