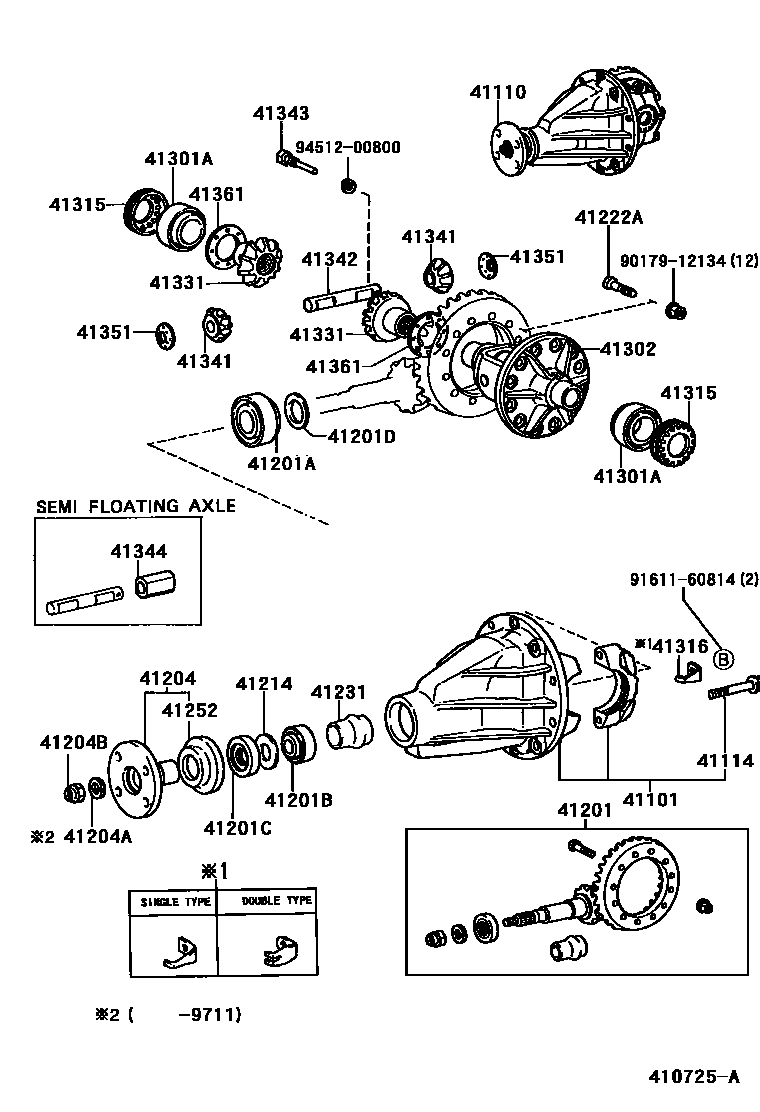

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
W(DIFFERENTIAL LOCK)
W(DIFFERENTIAL LOCK)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:11=3.727
*FGR=41:10=4.100
*FGR=41:11=3.727,W(LSD)
*FGR=41:10=4.100
*FGR=41:10=4.100,W(LSD)
*FGR=41:11=3.727,W(DIFFERENTIAL LOCK)
*FGR=41:10=4.100,W(DIFFERENTIAL LOCK)
*FGR=41:10=4.100,AXLE CODE=K294
*FGR=41:10=4.100,SOUTH AFRICA BOTSWANA SPEC
*FGR=41:10=4.100
*FGR=41:10=4.100
41114BOLT, REAR DIFFERENTIAL BEARING CAP
W(DIFFERENTIAL LOCK)
main90105-12053iFZJ80..RHD..STD;HZJ80..LHD..STD;FZJ80..GX..GEN..EFI;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HZJ80..STD..(ARL,GCC)..(CBR,DSL);FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,T199001-200609
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:11=3.727
*FGR=41:10=4.100
*FGR=41:10=4.100
*FGR=41:10=4.100
*FGR=41:10=4.100
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.05
T=1.10
T=1.15
T=1.20
T=1.25
T=1.30
T=1.35
T=1.40
T=1.45
T=1.50
T=1.55
T=1.05
main90564-40006iHDJ80,HZJ80;FZJ80..GX..EFI;FZJ80..STD..GCC;FZJ80..(GX,VX)..CBR;FZJ80..VX..GCC..EFI;FZJ80..RHD..(STD,VX)199610-200108
T=1.075
main90564-40007iHDJ80,HZJ80;FZJ80..GX..EFI;FZJ80..STD..GCC;FZJ80..(GX,VX)..CBR;FZJ80..VX..GCC..EFI;FZJ80..RHD..(STD,VX)199610-200108
T=1.10
T=1.125
T=1.15
T=1.175
T=1.20
T=1.225
T=1.25
T=1.275
T=1.30
T=1.325
T=1.35
main90564-40018iHDJ80,HZJ80;FZJ80..GX..EFI;FZJ80..STD..GCC;FZJ80..(GX,VX)..CBR;FZJ80..VX..GCC..EFI;FZJ80..RHD..(STD,VX)199610-200108
T=1.375
main90564-40019iHDJ80,HZJ80;FZJ80..GX..EFI;FZJ80..STD..GCC;FZJ80..(GX,VX)..CBR;FZJ80..VX..GCC..EFI;FZJ80..RHD..(STD,VX)199610-200108
T=1.40
T=1.425
T=1.45
T=1.475
T=1.50
T=1.525
T=1.55
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
OD=39.5
OD=37.5
OD=43
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
W(DIFFERENTIAL LOCK)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
W(DIFFERENTIAL LOCK)
W(LSD)
W(LSD)
W(LSD)
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
W(LSD)
W(DIFFERENTIAL LOCK)
41341PINION, REAR DIFFERENTIAL
W(DIFFERENTIAL LOCK)
W(DIFFERENTIAL LOCK)
W(LSD)
W(LSD)
41342SHAFT, REAR DIFFERENTIAL PINION
main41342-60010iFZJ80..ARL;HDJ80..LHD;FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80..SOB..STD..GEN;HZJ80..5F..(ARL,GEN);FZJ80,HZJ80..VX..GCC..(CBR,DSL);FZJ80,HDJ80..(GX,VX)..(ARL,GEN).199001-199801
W(DIFFERENTIAL LOCK)
W(DIFFERENTIAL LOCK)
41343PIN, REAR DIFFERENTIAL PINION SHAFT
W(DIFFERENTIAL LOCK)
main41343-60030iHZJ80..5F;FZJ80..4FC..GCC;FZJ80..(ARL,GEN)..EFI;FZJ80,HDJ80..CBR,TD2,TD4199001-200105
41344SPACER, DIFFERENTIAL PINION SHAFT
H=29.8
H=30.2
H=30.6
SOUTH AFRICA BOTSWANA SPEC,H=29.0
H=29.0
SOUTH AFRICA BOTSWANA SPEC,H=29.4
H=29.4
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(DIFFERENTIAL LOCK)
W(LSD)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.60
T=1.60
T=1.60,W(REAR DIFFERENTIAL LOCK)
T=1.75
main41361-60021iHZJ80..5F;FZJ80..SOB..STD;FZJ80..4FC..GCC;FZJ80..(ARL,GEN)..EFI;FZJ80,HDJ80..(GX,VX)..(CBR,TD2,TD4)199609-200105
T=1.75
T=1.75,W(REAR DIFFERENTIAL LOCK)
T=1.90
main41361-60031iHZJ80..5F;FZJ80..SOB..STD;FZJ80..4FC..GCC;FZJ80..(ARL,GEN)..EFI;FZJ80,HDJ80..(GX,VX)..(CBR,TD2,TD4)199609-200105
T=1.90
T=1.90,W(REAR DIFFERENTIAL LOCK)
T=2.05
T=2.05,W(REAR DIFFERENTIAL LOCK)
T=2.05
T=2.00,W(LSD)
T=2.00,W(LSD)
T=2.00
T=2.32,MARK 1
T=2.38,MARK 2
T=2.44,MARK 3
T=2.50,MARK 4
T=2.56,MARK 5
T=1.55
T=1.65
T=1.70
T=1.80
T=1.85
T=1.95
T=2.00
T=2.10
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
T=2.000
T=2.050
T=2.100
9017912134
main90179-12134
9161160814
main91611-60814
9451200800
main94512-00800
29 parts on this diagram · 7 diagrams in section
