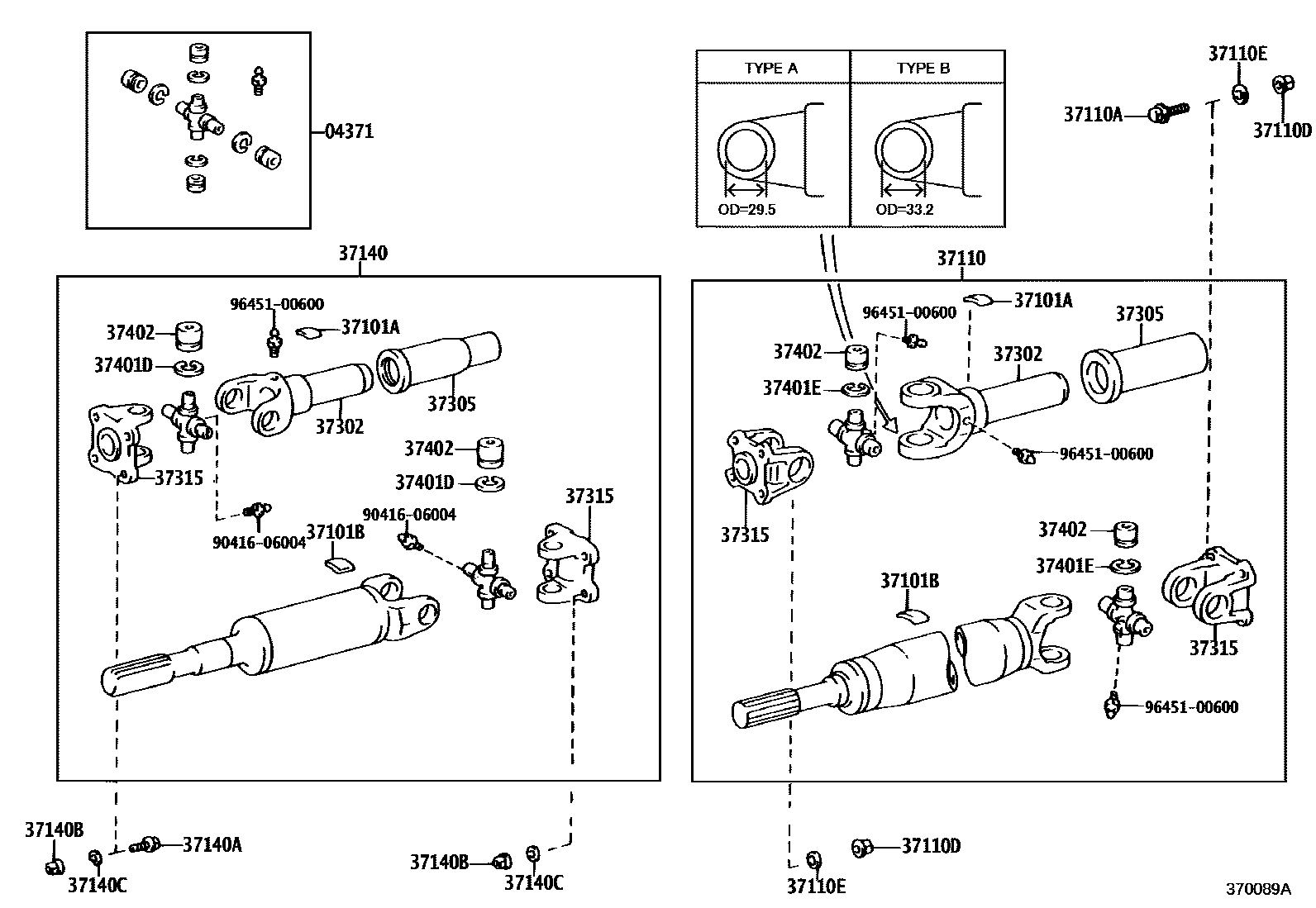

PROPELLER SHAFT & UNIVERSAL JOINT
04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
main04371-35031×2iFZJ80,HDJ80,HZJ80..LUB..ARL; FZJ80..LHD..GX..EFI;FZJ80..4FC..VX..GEN;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN); FZJ80..RHD..GX..CBR; HDJ80..LHD..LUB;FZJ80..VX..GCC..EFI;HDJ80..RHD..5F..TD2199501-199712
TYPE A:REFER TO ILLUSTRATION,REAR; W(*CDL & PTO DRIVE GEAR),TYPE A:REFER TO ILLUSTRATION; W(*VCD & PTO DRIVE GEAR),TYPE A:REFER TO ILLUSTRATION; W(FULL TIME 4WD),TYPE A:REFER TO ILLUSTRATION
FRONT
FRONT
main04371-36030×2iHZJ80..GCC,GEN;FZJ80..STD..EFI;FZJ80..SOB..STD;HZJ80..STD..ARL;FZJ80,HDJ80..(GX,VX)..(GCC,GEN)199709-199801
REAR
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
4G,T=1.6
8G,T=1.6
12G,T=4.5
16G,T=4.5
20G,T=4.5
24G,T=4.5,L=25.1
28G,T=6,L=22.7
32G,T=6,L=24.3
36G,L=23.1,T=8.0
40G,L=25.6
44G,L=22.6
48G,L=24.6
52G,L=26.7
56G,L=28.7
60G,L=28.7
37101BPIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)
10G,L=20.7
20G,L=41.4
30G,L=62.2
2G,T=2.0
4G,T=2.0
6G,L=12.4
8G,L=16.6
12G,L=24.9
14G,L=29.0
16G,L=33.2
18G,L=37.3
22G,L=45.6
24G,L=49.7
26G,L=53.9
28G,L=58.1
37110SHAFT ASSY, PROPELLER
main37110-60440iFZJ80..5F..GCC..EFI;HDJ80..5F..LUB..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN); FZJ80..RHD..GX..CBR199501-199801
W(*CDL); W(FULL TIME 4WD)
main37110-60450iFZJ80..SOB..STD;HZJ80..STD..ARL;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..5F..(GX,VX)..(CBR,TD2)199709-200109
W(*CDL & PTO DRIVE GEAR)
W(ABS)
W(PTO DRIVE GEAR) OR W(PART TIME 4WD)
W(ABS)
W(*ELC)
37110ABOLT (FOR PROPELLER SHAFT)
*11-1.00PX28-16
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37140SHAFT ASSY, PROPELLER, FRONT
main37140-60330iFZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN); HDJ80..5F..LUB..TD2199501-199901
W(*CDL & PTO DRIVE GEAR); W(*VCD & PTO DRIVE GEAR)
W(*VCD & PTO DRIVE GEAR)
main37140-60350iFZJ80..SOB..STD;HZJ80..STD..ARL;HZJ80..5F..(GCC,GEN);FZJ80,HDJ80..5F..(GX,VX)..(CBR,TD2)199709-200109
37140ABOLT (F0R FRONT PROPELLER SHAFT)
main90105-10085×4iHDJ80,HZJ80;FZJ80..SOB..STD;FZJ80..5F..(GX,VX);FZJ80..LHD..4FC..VX;FZJ80..5F..STD..EFI;FZJ80..4FC..(GX,STD)199709
37140BNUT (F0R FRONT PROPELLER SHAFT)
37140CWASHER (F0R FRONT PROPELLER SHAFT)
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
FRONT
main37302-36020iFZJ80,HDJ80,HZJ80..LUB..ARL; FZJ80..LHD..GX..EFI;FZJ80..4FC..VX..GEN;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN); FZJ80..RHD..GX..CBR199501-199801
TYPE B:REFER TO ILLUSTRATION,REAR; W(*CDL & PTO DRIVE GEAR),TYPE B:REFER TO ILLUSTRATION; W(FULL TIME 4WD),TYPE B:REFER TO ILLUSTRATION,REAR
37305COVER SUB-ASSY, SLIDING SHAFT DUST
main37305-35020iFZJ80,HDJ80,HZJ80..LUB..ARL; FZJ80..LHD..GX..EFI;FZJ80..4FC..VX..GEN;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN); FZJ80..RHD..GX..CBR199501-199801
TYPE A:REFER TO ILLUSTRATION; W(*CDL & PTO DRIVE GEAR),TYPE A:REFER TO ILLUSTRATION; W(FULL TIME 4WD),TYPE A:REFER TO ILLUSTRATION
W(*ELC),REAR; W(PTO DRIVE GEAR) OR W(PART TIME 4WD),REAR
FRONT
37315YOKE, UNIVERSAL JOINT FLANGE
FRONT
FRONT
REAR
37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,NO MARK
T=2.35,BROWN
T=2.37,BLUE
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK 9
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
T=2.19,MARK D
T=2.21,MARK E
T=2.23,MARK F
T=2.25,MARK G
T=2.27,MARK H
T=2.125,MARK 1
T=2.175,MARK 2
T=2.225,MARK 3
T=2.275,MARK 4
T=2.325,MARK 5
T=2.375,MARK 6
T=2.425,MARK 7
T=2.475,MARK 8
T=2.44-2.46
T=2.46-2.48
T=2.28-2.30
T=2.30-2.32
T=2.32-2.34
T=2.34-2.36
T=2.36-2.38
T=2.38-2.40
T=2.40-2.42
T=2.42-2.44
T=2.18-2.20
T=2.20-2.22
T=2.22-2.24
T=2.24-2.26
T=2.26-2.28
T=2.48-2.50
T=2.50-2.52
T=2.52-2.54
37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
T=2.00,NO MARK
T=2.03,BROWN
T=2.06,BLUE
T=2.09,NO MARK
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
FRONT
FRONT, RED PAINTED
REAR
REAR, RED PAINTED
9041606004
main90416-06004
9645100600
main96451-00600
19 parts on this diagram · 1 diagram in section
