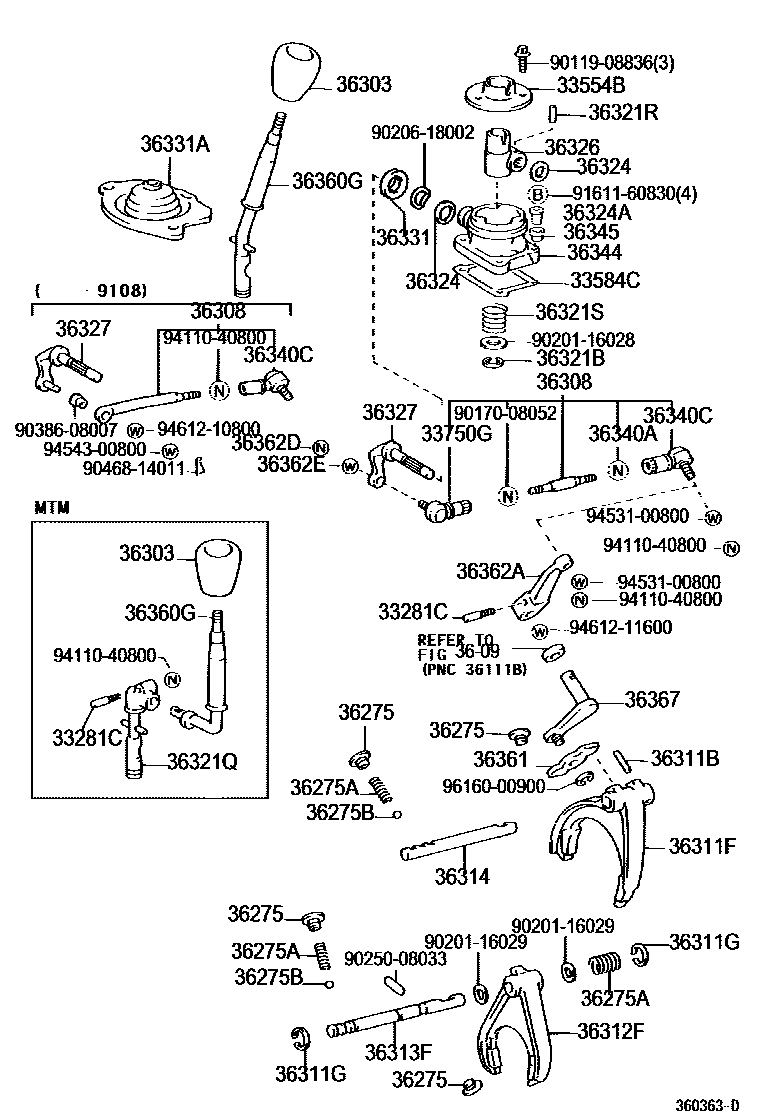

TRANSFER LEVER & SHIFT ROD

0001 1DIRECT TYPE 0003 1DIRECT TYPE 0004 1ELECTRIC TYPE

33281CPIN, LEVER LOCK

main33281-16020iFZJ80..4FC;FZJ80..5F..VX199001-199909

33554BCAP, TRANSFER SHIFT LEVER

main33554-60030iFJ80..5F..GCC;FJ80,HZJ80..STD..ARL;FJ80..MTM..(GX,STD)..GEN;HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199102

sub33554-60080

main33554-60080iFJ80..5F..GCC;FJ80,HZJ80..STD..ARL;FJ80..MTM..(GX,STD)..GEN;HZJ80..MTM..(GX,STD)..(GCC,GEN)199102-199201

sub33554-60081

main33554-60081iFZJ80..STD..EFI;FZJ80..5F..VX..GCC;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..5F..(GX,STD)..(GCC,GEN)199201-199801

33584CGASKET,TRANSFER CONTROL SHIFT LEVER RETAINER

main33584-60020iHDJ80;FZJ80..GX..EFI;HZJ80..GX..ARL;FZJ80..GCC..EFI;FZJ80,HZJ80..VX..(ARL,GEN)199001-199403

main36345-60010iFZJ80..STD..CBR;HZJ80..LHD..STD199311

main36345-60010iFZJ80..GX..CBR;FZJ80..STD..ARL;FZJ80..VX..GCC..CBR;HZJ80..RHD..5F..GEN;HZJ80..LHD..LUB..GX;HZJ80..SOB..(ARL,GCC)199311-200103

ELECTRIC TYPE

33750GEND ASSY, CONNECTING ROD, NO.2 (FOR TRANSFER SHIFT ROD)

main33750-26010iFZJ80..5F..VX..GCC;FZJ80..5F..(GX,STD);HZJ80..(STD,VX)..(ARL,GCC);HZJ80..5F..(GX,STD)..(GCC,GEN)199104-199801

3609

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12008iHZJ80..RHD..5F..SOB..GEN199001-199801

ELECTRIC TYPE

main90341-12008iFZJ80..STD..GEN..EFI199001-200103

DIRECT TYPE

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-12128iFZJ80..5F..STD..EFI199001-199801

L=26.9,DIRECT TYPE

main90501-14133iFJ80..5F..GCC;FJ80,HZJ80..STD..ARL;FJ80..MTM..(GX,STD)..GEN;HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199003

L=25.0,DIRECT TYPE

main90501-14134iFJ80,HZJ80;HDJ80..ARL;HDJ80..LHD;FZJ80..GX,STD;FZJ80..VX..GCC199001-199801

L=27.1,DIRECT TYPE

main90501-18090iFZJ80..5F..ARL199003-199801

L=31.6,DIRECT TYPE

main90501-18093iFZJ80..VX200104

L=23.8

main90501-18093iHZJ80..RHD;FZJ80..GX..GEN..EFI;HZJ80..LHD..(GX,VX);FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80..(GX,VX)..(CBR,TD2,TD4)199006-199909

L=23.8,ELECTRIC TYPE

36275BBALL, SHIFT DETENT

main90360-08009iFZJ80..5F..STD..EFI199001-200109

OD=7.94,STEEL

main90360-10003iFZJ80..VX..GEN..EFI199001-199909

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-60110-01iFZJ80,HZJ80..STD199001-199501

BLACK,TRIM1#,4#

sub36303-60110

main36303-60150-01iFJ80,HZJ80..STD..ARL199001-199108

W(*ELC),BLACK,TRIM1#,4#

main36303-60160-01iHZJ80..RHD..STD..GEN199001-199308

URETHANE,BLACK,TRIM1#,4#

sub36303-60161

main36303-60160-01iHZJ80..RHD..5F..STD..GEN199010-199202

MALAYSIA CKD SPEC,BLACK,TRIM1#,4#

sub36303-60161

main36303-60160-01iFZJ80..VX..GCC..CBR;FZJ80,HZJ80..5F..GX..(GCC,GEN);FZJ80,HZJ80..5F..(STD,VX)..(ARL,GCC)..(DSL,EFI)199208-199308

DIRECT TYPE,BLACK,TRIM1#,4#

sub36303-60161

main36303-60161-C0iFZJ80..GX..CBR;HZJ80..RHD..GEN;FZJ80..SOB..VX..CBR;HZJ80..LHD..GX..GEN;FZJ80,HZJ80..5F..SOB..(ARL,GCC)..(DSL,EFI)199308-199901

DIRECT TYPE,BLACK,TRIM1#,4#

sub36303-60161

main36303-60161-C0iFZJ80..CBR199901-200109

DIRECT TYPE,BLACK,TRIM1#

sub36303-60161

main36303-60180-01iFZJ80,HDJ80,HZJ80..GX..ARL199001-199308

ELECTRIC TYPE,BLACK,TRIM1#,4#

sub36303-60180

sub36303-60181

main36303-60180-01iFJ80..LUB..ARL;HDJ80,HZJ80..ARL199108-199208

URETHANE & ELECTRIC TYPE,BLACK,TRIM1#,4#

sub36303-60180

sub36303-60181

main36303-60181-C0iFZJ80,HDJ80,HZJ80..GX..ARL199501-199801

W(FULL TIME),BLACK,TRIM1#,4#

main36303-60181-C0iFZJ80..LHD..GX..EFI;FZJ80..4FC..VX..GEN;FZJ80..LHD..LUB..(GX,VX)..CBR;FZJ80..SOB..(GX,VX)..GCC..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN)199501-199801

URETHANE,BLACK,TRIM1#,4#

main36303-60181-C0iFZJ80..LHD..GX..EFI;FZJ80..4FC..VX..GEN;FZJ80..LHD..LUB..(GX,VX)..CBR;FZJ80..SOB..(GX,VX)..GCC..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN)199501-199801

W(*VCD),BLACK,TRIM1#,4#

main36303-60181-C0iFZJ80..LHD..GX..EFI;FZJ80..4FC..VX..GEN;FZJ80..LHD..LUB..(GX,VX)..CBR;FZJ80..SOB..(GX,VX)..GCC..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN)199501-199801

W(*CDL & PTO),BLACK,TRIM1#,4#

main36303-60200-C0iFZJ80,HZJ80..RHD..STD..(DSL,EFI)199108-199501

VINYL & ELECTRIC TYPE,BLACK,TRIM1#,4#

sub36303-60211

main36303-60210-C0iFJ80..5F..VX..GEN;FJ80,HZJ80..LHD..4FC;FZJ80,HDJ80,HZJ80..VX..GEN199108-199308

W(*ELC),BLACK,TRIM1#,4#

sub36303-60211

main36303-60210-C0iFJ80..5F..VX..GEN;FJ80,HZJ80..LHD..4FC;FZJ80,HDJ80,HZJ80..VX..GEN199108-199308

URETHANE,BLACK,TRIM1#,4#

sub36303-60211

main36303-60210-C0iHZJ80..RHD..STD..GEN199202-199208

MALAYSIA CKD SPEC,BLACK,TRIM1#,4#

sub36303-60211

main36303-60211-C0iFZJ80..VX..GCC..EFI;HDJ80..RHD..5F..TD2;FZJ80,HZJ80..4FC..GX;HZJ80..LHD..SOB..GX..GEN;FZJ80,HDJ80,HZJ80..LHD..VX..GEN199308-199909

ELECTRIC TYPE,BLACK,TRIM1#,4#

sub36303-60211

main36303-60211-C0iHZJ80199901-200103

URETHANE & ELECTRIC TYPE,BLACK,TRIM1#

sub36303-60211

main36303-60211-C0iHZJ80199901-200103

ELECTRIC TYPE,BLACK,TRIM1#

sub36303-60211

main36303-60211-C0iFZJ80..GX..CBR;FZJ80..STD..ARL;FZJ80..VX..GCC..CBR;HZJ80..RHD..5F..GEN;HZJ80..LHD..LUB..GX;HZJ80..SOB..(ARL,GCC)199308-199901

URETHANE & ELECTRIC TYPE,BLACK,TRIM1#,4#

sub36303-60211

main36303-60211-C0iFZJ80..4FC..STD199909-200612

BLACK,TRIM4#

sub36303-60211

main36303-60230-C0iFZJ80,HZJ80..VX..GCC..(CBR,DSL)199208-199801

LEATHER,BLACK,TRIM1#,4#

main36303-60230-C0iFZJ80,HZJ80..VX..GCC199201-199801

INTERIA PACKAGE,BLACK,TRIM1#,4#

main36303-60240-C0iFZJ80..4FC..VX..GEN199501-199801

W(*VCD & INTERIA PACKAGE),BLACK,TRIM1#,4#

main36303-60240-C0iFZJ80,HDJ80..VX..ARL199208-199801

LEATHER,BLACK,TRIM1#,4#

main36303-60240-C0iFZJ80..GX..ARL199603-199604

WINTER EDITION,BLACK,TRIM1#,4#

main36303-60240-C0iFZJ80..4FC..VX..GEN199501-200612

BLACK,TRIM1#,4#

main36303-60240-C0iFZJ80..4FC..VX..GEN199501-199801

W(FULL TIME 4WD & INTERIA PACKAGE),BLACK,TRIM1#,4#

main36303-60250-C0iFZJ80,HZJ80..5F..VX..GCC199201-199801

W(PART TIME 4WD & INTERIA PACKAGE),BLACK,TRIM1#,4#

main36303-60250-C0iFZJ80..GCC..EFI199208-199801

LEATHER,BLACK,TRIM1#,4#

main36303-60250-C0iHDJ80..RHD..4FC..TD2199610-200103

LEATHER,BLACK,TRIM1#

36308ROD SUB-ASSY, HIGH & LOW SHIFT

main36308-60140iFJ80..5F..GCC;FJ80,HZJ80..STD..ARL;FJ80..MTM..(GX,STD)..GEN;HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199108

DIRECT TYPE

sub36308-60200

sub36327-60090

main36308-60150iHZJ80..RHD..5F;FZJ80..STD..ARL;HZJ80..LHD..(GX,VX);FZJ80,HDJ80..5F..(GX,VX)199001-199208

ELECTRIC TYPE

main36308-60160iFJ80,HDJ80,HZJ80..4FC199001-199208

ELECTRIC TYPE

main36308-60160iFZJ80..4FC..STD199909

main36308-60200iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199108-199801

DIRECT TYPE

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05002iFJ80..5F..VX..GEN199001-199201

L=32,W(*ELC & PTO)

main90254-05002iFJ80..5F..GCC;FJ80..STD..ARL;HZJ80..LHD..4F;HZJ80..RHD..GEN;HZJ80..LHD..5F..GX..GEN;FJ80..MTM..(GX,STD)..GEN;HZJ80..SOB..(GX,STD)..(ARL,GCC)199001-199208

L=32

main90254-05016iFZJ80199001-200103

L=25.5

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-60060iHDJ80..RHD..5F..GEN;FZJ80..5F..VX..GEN..EFI;HZJ80..RHD..5F..SOB..GEN199001-200001

ELECTRIC TYPE & PART TIME 4WD

main36311-60060iFZJ80..4FC..GX..ARL;HZJ80..LHD..SOB..GX..GEN199608-199801

main36311-60070iFZJ80..5F..VX..GCC;FZJ80..5F..(GX,STD);HZJ80..(STD,VX)..(ARL,GCC);HZJ80..5F..(GX,STD)..(GCC,GEN)199001-199801

DIRECT TYPE & PART TIME 4WD

main36311-60080iFZJ80,HDJ80,HZJ80..LUB..ARL199001-199801

ELECTRIC TYPE & FULL TIME 4WD

sub36311-60120

main36311-60100iFZJ80..5F..STD199801

main36311-60110iFZJ80..4FC..STD199801-200103

main36311-60120iFZJ80..VX199909

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13004iFJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..GX..GEN;FJ80..5F..(GX,VX)..GCC;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..GX..(GCC,GEN)199003-200103

W(*ELC)

main90520-13004iFJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX199001-200103

main90520-13004iHZJ80..5F..STD..GEN199108-199201

MALAYSIA CKD

main90520-13004iFZJ80..5F..GCC..EFI199501-199801

W(*VCD)

main90520-13004iFZJ80..5F..ARL199608-199801

W(PTO DRIVE GEAR) OR W(PART TIME)

main90520-13004iFZJ80..LHD..GX..CBR;HZJ80..5F..GX..(GCC,GEN);FZJ80,HZJ80..VX..GCC..(CBR,DSL)199501-199901

W(*ELC & PTO)

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-60150iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199003-199801

DIRECT TYPE

main36312-60050iFZJ80..4FC;FZJ80..5F..VX199001-200103

ELECTRIC TYPE

main36312-60070iFJ80..5F..GCC;FJ80,HZJ80..STD..ARL;FJ80..MTM..(GX,STD)..GEN;HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199003

DIRECT TYPE

sub36302-60150

sub90201-16029

sub90501-18090

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-60090iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199801

DIRECT TYPE

main36313-60100iFZJ80..VX199001-200103

ELECTRIC TYPE

main36313-60100iFZJ80..4FC..STD199909

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60050iFJ80,FZJ80,HDJ80,HZJ80199001-199909

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90520-13004iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199801

36321QLEVER, TRANSFER SHIFT

main36321-60260iFJ80,HDJ80;HZJ80..RHD;FZJ80..GX,VX;HZJ80..LHD..(GX,VX);HZJ80..LHD..4F..STD199001-200103

ELECTRIC TYPE

main36321-60270iFZJ80..5F..VX..GCC;FZJ80..5F..(GX,STD);HZJ80..(STD,VX)..(ARL,GCC);HZJ80..5F..(GX,STD)..(GCC,GEN)199001-199801

DIRECT TYPE

36321RPIN, SLOTTED SPRING (FOR TRANSFER SHIFT LEVER)

main90254-05002iFJ80,FZJ80,HDJ80,HZJ80199001-199208

36321SSPRING, COMPRESSION (FOR TRANSFER SHIFT LEVER)

main90501-14142iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199801

36324BUSH, TRANSFER SHIFT LEVER

main36324-60060iFJ80,FZJ80,HDJ80,HZJ80199001-199208

36324ABUSH, TRANSFER SHIFT LEVER

main36324-60070iHZJ80..RHD;FZJ80..STD..EFI;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX)199311-200103

36326SUPPORT, TRANSFER SHIFT LEVER

main36326-60040iFJ80..5F..GCC;FJ80,HZJ80..STD..ARL;FJ80..MTM..(GX,STD)..GEN;HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199102

sub36326-60050

main36326-60050iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199102-199801

36327SHAFT, TRANSFER SHIFT LEVER

main36327-60050iHZJ80..RHD..5F;FZJ80..STD..ARL;HZJ80..LHD..(GX,VX);FZJ80,HDJ80..5F..(GX,VX)199001-199208

ELECTRIC TYPE

main36327-60060iFJ80,HDJ80,HZJ80..4FC199001-199208

ELECTRIC TYPE

main36327-60060iFZJ80..4FC..STD199909

main36327-60070iFJ80..5F..GCC;FJ80,HZJ80..STD..ARL;FJ80..MTM..(GX,STD)..GEN;HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199108

DIRECT TYPE

sub36327-60090

sub36308-60200

main36327-60090iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199108-199801

DIRECT TYPE

36331BOOT, TRANSFER SHIFT LEVER

main36331-60010iFJ80,FZJ80,HDJ80,HZJ80199001-199311

main36331-60010iFZJ80..VX..GCC..CBR;FZJ80,HZJ80..5F..(GX,STD)..(GCC,GEN);FZJ80,HZJ80..5F..(STD,VX)..(ARL,GCC)..(DSL,EFI)199311-199403

DIRECT TYPE

main36331-60040iHDJ80;FZJ80..GX..EFI;HZJ80..GX..ARL;FZJ80..GCC..EFI;FZJ80,HZJ80..VX..(ARL,GEN)199311-200103

main36331-60040iFZJ80..GX..CBR;FZJ80..STD..ARL;FZJ80..VX..GCC..CBR;HZJ80..RHD..5F..GEN;HZJ80..LHD..LUB..GX;HZJ80..SOB..(ARL,GCC)199311-200103

ELECTRIC TYPE

36331ABOOT, TRANSFER SHIFT LEVER, NO.2

main36331-60020iFJ80,FZJ80,HDJ80,HZJ80..MTM199001-199208

main36331-60030iFJ80,HDJ80,HZJ80..4FC199001-199208

36340ANUT (FOR HIGH AND LOW SHIFT ROD)

main94120-40800iFZJ80..STD..EFI;FZJ80..5F..VX..GCC;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..5F..(GX,STD)..(GCC,GEN)199108-199801

36340CEND ASSY, HIGH & LOW CONNECTING ROD

main33740-26010iFJ80,FZJ80,HDJ80,HZJ80199001-199208

36344RETAINER, TRANSFER CONTROL SHIFT LEVER

main36344-60010iFJ80..5F..GCC;FJ80,HZJ80..STD..ARL;FJ80..MTM..(GX,STD)..GEN;HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199201

DIRECT TYPE

sub36344-60011

main36344-60011iFZJ80..VX..GCC;FZJ80,HZJ80..5F..(GX,STD)..(GCC,GEN);FJ80,HZJ80..SOB..(STD,VX)..(ARL,GCC)199201-199403

DIRECT TYPE

main36344-60020iFJ80,HDJ80..4FC..ARL199001-199201

ELECTRIC TYPE

sub36344-60021

main36344-60021iHZJ80..RHD;FZJ80..STD..EFI;HZJ80..LHD..(GX,VX);FZJ80,HDJ80..5F..(GX,VX)199201-199311

ELECTRIC TYPE

main36344-60030iFZJ80..5F..STD199403-199801

DIRECT TYPE

main36344-60040iFZJ80..4FC199311-200103

ELECTRIC TYPE

main36344-60040iFZJ80,HDJ80,HZJ80..4FC199801-200103

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-60020iHZJ80..RHD;FZJ80..STD..EFI;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX)199311-200103

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-60310iFJ80..5F..GCC;FZJ80..VX..GCC;HZJ80..LHD..SOB;FZJ80..LHD..(GX,STD);HZJ80..LHD..MTM..GX..GEN;FJ80..LHD..MTM..(GX,STD)..GEN199001-199208

DIRECT TYPE

main36360-60330iHZJ80..RHD;FZJ80..GX,VX;FJ80,HDJ80..MTM;HZJ80..LHD..4F..STD;HZJ80..LHD..MTM..(GX,VX)199001-199208

ELECTRIC TYPE

main36360-60340iFZJ80..4FC..STD199909

main36360-60340iFZJ80..4FC..VX199001-200103

ELECTRIC TYPE

main36360-60360iFZJ80,HDJ80,HZJ80..RHD..5F199001-200103

DIRECT TYPE

36361LEVER, TRANSFER SHIFT, INNER

main36361-60030iFJ80,HDJ80;HZJ80..RHD;FZJ80..GX,VX;HZJ80..LHD..(GX,VX);HZJ80..LHD..4F..STD199001-200103

ELECTRIC TYPE

main36361-60030iFZJ80..4FC..STD199909

main36361-60040iFZJ80..5F..STD199001-199801

DIRECT TYPE

36362ALEVER, TRANSFER SHIFT, OUTER

main36362-60030iFJ80,HDJ80;HZJ80..RHD;FZJ80..GX,VX;HZJ80..LHD..(GX,VX);HZJ80..LHD..4F..STD199001-200103

ELECTRIC TYPE

main36362-60030iFZJ80..4FC..STD199909

main36362-60050iFZJ80..5F..STD199001-199801

DIRECT TYPE

36362DNUT (FOR TRANSFER SHIFT OUTER LEVER)

main94110-40800iFZJ80..STD..EFI;FZJ80..5F..VX..GCC;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..5F..(GX,STD)..(GCC,GEN)199104-199801

sub94130-00802

main94110-40800iFZJ80..STD199801-199904

NO.1

sub94130-00802

main94130-60800iFZJ80..5F..STD199801

NO.2

main94130-60800iFZJ80..5F..STD199904

NO.1

36362EWASHER (FOR TRANSFER SHIFT OUTER LEVER)

main94512-00800iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199104-199801

main94512-00800iFZJ80..STD199801-199904

NO.1

main94531-00800iFZJ80..5F..STD199801

NO.2

main94531-00800iFZJ80..5F..STD199904

NO.1

36367SHAFT, TRANSFER SHIFT INNER LEVER

main36367-60030iFJ80..5F..GCC;FJ80..STD..ARL;FZJ80..VX..GCC;FJ80..MTM..(GX,STD)..GEN;HZJ80..(STD,VX)..(ARL,GCC);FZJ80,HZJ80..MTM..(GX,STD)..(GCC,GEN)199001-199801

9011908836

main90119-08836

9017008052

main90170-08052

9020116028

main90201-16028

9020116029

main90201-16029

9020618002

main90206-18002

9025008033

main90250-08033

9038608007

main90386-08007

9046814011

main90468-14011

9161160830

main91611-60830

9411040800

main94110-40800

9453100800

main94531-00800

9454300800

main94543-00800

9461210800

main94612-10800

9461211600

main94612-11600

9616000900

main96160-00900

51 parts on this diagram · 3 diagrams in section
