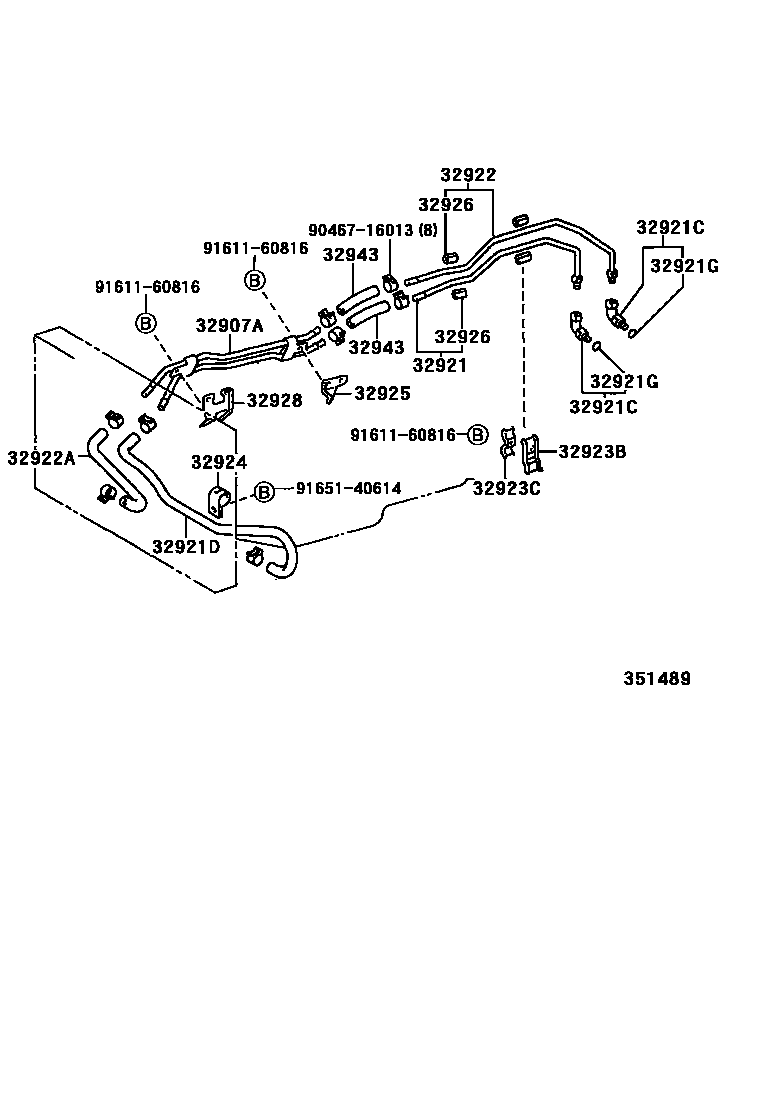

OIL COOLER & TUBE (ATM)

0001 1 0002 1AIR COOLING OIL COOLER 0003 1 0004 1AIR COOLING OIL COOLER

32907ATUBE, OIL COOLER

main32907-60030iFJ80..4FC199001-199208

32921TUBE, OIL COOLER INLET, NO.1

main32921-60050iFJ80..4FC199001-199208

main32921-60060iHDJ80,HZJ80..4FC199001-199208

main32921-60130iFZJ80..4FC199208

main32921-60140iHDJ80,HZJ80..4FC199208-200103

32921CUNION(FOR OIL COOLER TUBE)

main90407-20004iFZJ80..4FC200103

OUTLET

main90407-20005iFJ80,HDJ80,HZJ80..4FC199001-199208

INLET

main90407-20006iHDJ80..4FC..ARL199305-199407

INELT

32921DHOSE(FOR OIL COOLER INLET)

main32941-60070iHDJ80,HZJ80..4FC199001-199208

main32941-60110iFZJ80..4FC199208

main32942-60070iFJ80..4FC199001-199208

main32942-60080iFJ80..4FC199001-199208

AIR COOLING OIL COOLER

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iFJ80,HDJ80,HZJ80..4FC199001-199208

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60050iFJ80..4FC199001-199208

main32922-60060iHDJ80,HZJ80..4FC199001-199004

main32922-60061iHDJ80,HZJ80..4FC199004-199208

main32922-60070iFZJ80..4FC199208

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35011iFJ80..4FC199001-199208

main32942-60090iHDJ80,HZJ80..4FC199001-199004

main32942-60091iHDJ80,HZJ80..4FC199004-199208

main32942-60100iHDJ80,HZJ80..4FC199001-199004

AIR COOLING OIL COOLER

main32942-60130iHDJ80..4FC199208-199310

AIR COOLING OIL COOLER

main32942-60131iHDJ80..4FC199310-199311

AIR COOLING OIL COOLER

main32942-60230iFZJ80..4FC..(ARL,GEN)199208-199310

AIR COOLING OIL COOLER

main32942-60231iFZJ80..4FC..(ARL,GEN)199310-199801

AIR COOLING OIL COOLER

main32942-60260iFZJ80..4FC199208-199307

main32942-60261iFZJ80..4FC199307-199605

main32942-60262iFZJ80..4FC199605

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-60050iHDJ80,HZJ80..4FC199001-199208

main32923-60060iFJ80..4FC199001-199208

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12076iFJ80..4FC; HDJ80,HZJ80..4FC199001-199208

32924CLAMP, OIL COOLER TUBE, NO.2

main32909-60010iHDJ80,HZJ80..4FC199208-200103

main32909-60020iFZJ80..4FC199208

main90461-08594iFJ80..4FC199001-199208

32925CLAMP, OIL COOLER TUBE, NO.3

main32909-60030iFZJ80..4FC199208

main32925-60060iFJ80..4FC199001-199208

main32925-60070iHDJ80,HZJ80..4FC199001-199208

main32925-60110iHDJ80..4FC..TD4199501-199801

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-60010×4iFJ80..4FC; HDJ80,HZJ80..4FC199001-199208

L=45,ID=12

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60040iFJ80..4FC199001-199208

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60090×2iFJ80..4FC199001-199208

9046716013

main90467-16013

9161160816

main91611-60816

9165140614

main91651-40614

17 parts on this diagram · 4 diagrams in section
