SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-69225iFJ80,HDJ80,HZJ80..4FC199001-199208

N=31,MARK 31:12

main33403-69235iHZJ80..4FC199208-199901

N=32,MARK 32:12

main33403-69245iFJ80,HDJ80,HZJ80..4FC199001-199208

N=33,MARK 33:12

main33403-69275iFJ80,HDJ80,HZJ80..LHD..4FC199001-199208

N=33,MARK 33:13

main33403-69295iFJ80..4FC..GX..GEN199001-199201

N=33,MARK 11:33

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-22010iHDJ80..4FC..ARL199208-199501

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24030iHZJ80..4FC199208-199901

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iFJ80,HDJ80,HZJ80..4FC199001-199208

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iFJ80,HDJ80,HZJ80..4FC199001-199208

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iFJ80,HDJ80,HZJ80..4FC199001-199208

9161160814

main91611-60814

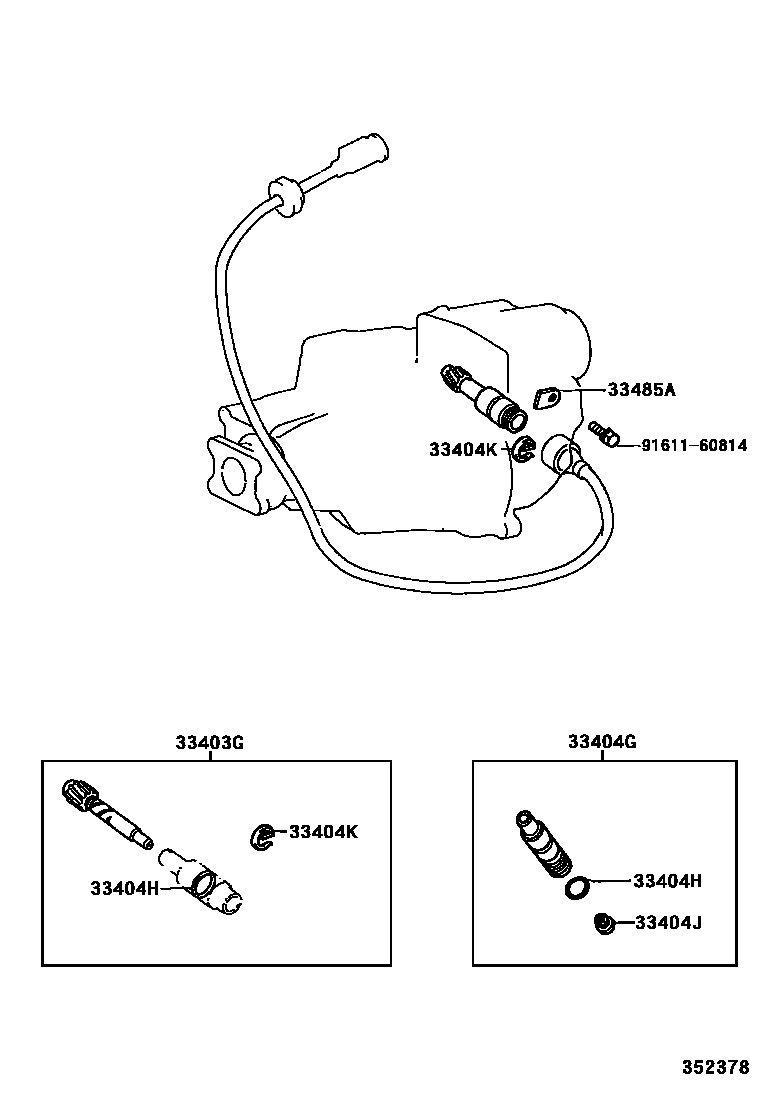

7 parts on this diagram · 1 diagram in section
