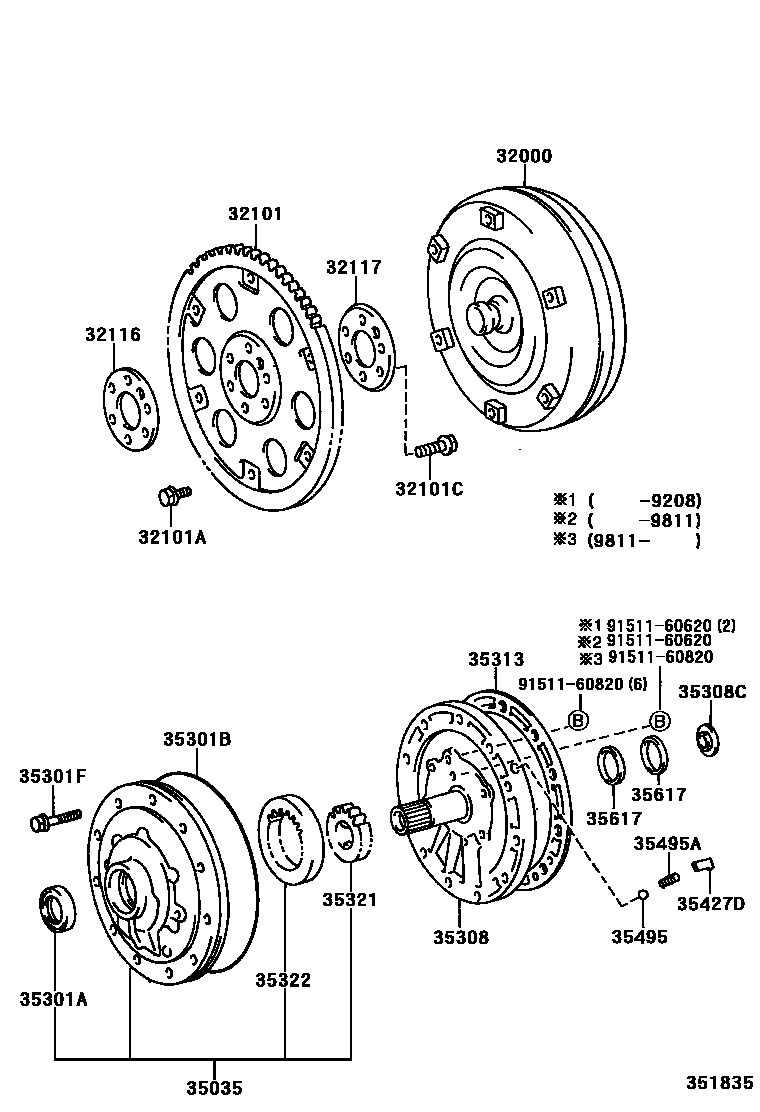

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*8-1.25PX14-10
*8-1.25PX14-9
*10-1.25PX15-10,GREEN
*10-1.25PX15-10,BLACK
main90119-10789iHDJ80..LHD..4FC;FZJ80..GX..GEN..EFI;FZJ80,HDJ80..4FC..(ARL,GCC)..(EFI,TD4)199410-199801
*10-1.25PX14-9,GREEN
*10-1.25PX14-9,BLACK
*10-1.25PX14-9,BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX60-30
*8-1.25PX60-20
35308COVER SUB-ASSY, FRONT OIL PUMP
35308CRACE, THRUST BEARING (FOR FRONT OIL PUMP COVER)
T=0.8
T=1.0
T=1.4
35313GASKET, FRONT OIL PUMP COVER
35321GEAR, FRONT OIL PUMP DRIVE
T=18.45-18.48
T=18.43-18.45
T=11.983-11.998
T=11.948-11.962
T=11.967-11.982
T=11.963-11.977
T=11.999-12.014
T=11.978-11.992
T=11.993-12.007
T=12.008-12.022
35322GEAR, FRONT OIL PUMP DRIVEN
T=18.45-18.48
T=18.43-18.45
T=11.983-11.998
T=11.948-11.962
T=11.967-11.982
T=11.963-11.977
T=11.999-12.014
T=11.978-11.992
T=11.993-12.007
T=12.008-12.022
35427DSEAT, CHECK VALVE SPRING
35495BALL, CHECK
35495ASPRING, COMPRESSION (FOR CHECK BALL)
35617RING, CLUTCH DRUM OIL SEAL
9151160620
main91511-60620
9151160820
main91511-60820
21 parts on this diagram · 1 diagram in section
